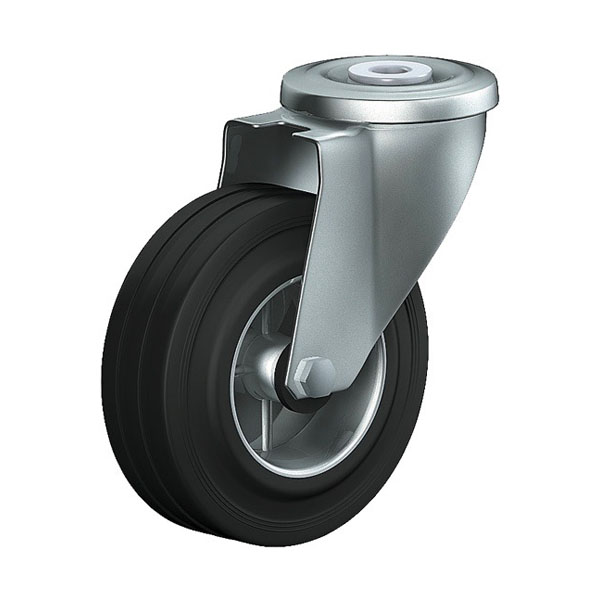

 Swivel castor CR 180 CB

Swivel castor CR 180 CB

PDF product sheet
  • ++
    swivels easily
  • ++
    wear resistant
  • ++
    shock proof
  • ++
    floor protective
  • ++
    weather proof
 Swivel castor CR 180 CB

Net price
€ 54,70 / Pc, excl. Shipping

Product is in stock (delivery in 2 - 3 working days)


Sliding scale price reductions for orders over € 50!


Applications

Technical information

Transport Serie CR - Wheel C

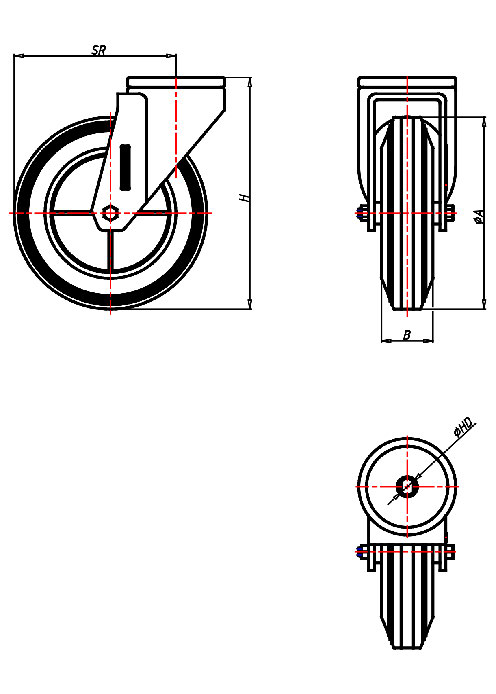

Swivel castor Wheel-Ø A x width B mm: 180x45

  • Load Capacity kg: 200
  • Load capacity tested according to EN 12530 and EN 12527
  • Overall height H mm: 218
  • Hole-Ø HD mm: 12,5
  • Swivel radius SR mm: 149
  • Wheel bearing: Roller bearing

Floor condition

  • PVC Boden

    PVC/Concrete

  • Asphaltboden

    Asphalt

  • Hindernisse am Boden

    Obstacles

View additional Versions

 Series Transport Series CR, Wheel C
Applications

Applications

Applications

  • Tyre racks
  • Mobile tool racks
  • Furniture dollies
  • Chair dollies

Advantages

  • silent in motion
  • good running performance
  • resistant to diluted acids
Material

Material

Wheel material

  • Tread: standard rubber tyre black, 85±5 Shore A
  • Welded steel rim, zinc-plated

Fork material

  • Medium duty bolt hole castor, finish: electro-zinc plated and yellow passivated, swivel fork with single bolt hole, double ball bearing – revited, hardened steel balls, wheel axle bolted, total lock
Documents/CAD

Documents/CAD

data sheet

A short technical overview including a 3D model can be found here in PDF format:
Technical information, 3D model

3D CAD plans

The models have been carefully designed and validated for correctness. However, we take no responsibility for any incorrect or incomplete data.
