 Swivel castor CD 100 D

Swivel castor CD 100 D

PDF product sheet
  • ++
    swivels easily
  • ++
    wear resistant
  • ++
    shock proof
  • ++
    floor protective
  • ++
    weather proof

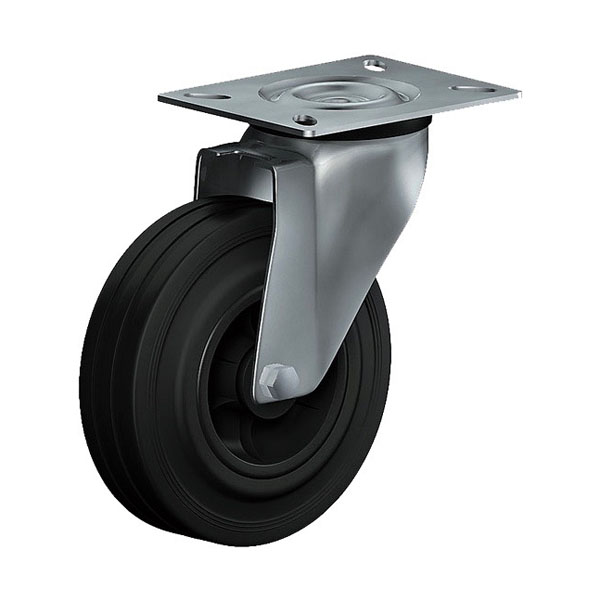

 Swivel castor CD 100 D

Net price
€ 21,40 / Pc, excl. Shipping

Product is in stock (delivery in 2 - 3 working days)


Sliding scale price reductions for orders over € 50!


Applications

Technical information

Transport Serie CD - Wheel D

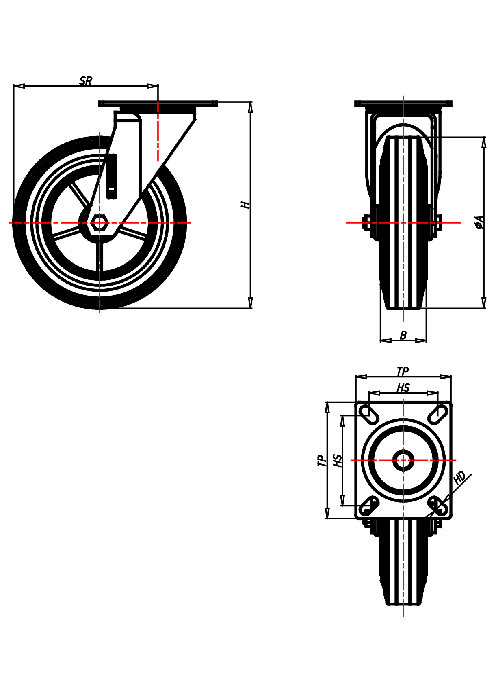

Swivel castor Wheel-Ø A x width B mm: 100x30

  • Load Capacity kg: 75
  • Load capacity tested according to EN 12530 and EN 12527
  • Overall height H mm: 128
  • Dimension of top plate TP mm: 102x83
  • Hole spacing HS mm: 80x60
  • Hole-Ø HD mm: 9
  • Swivel radius SR mm: 88
  • Wheel bearing: Nylon plain bearing

Floor condition

  • PVC Boden

    PVC/Concrete

  • Asphaltboden

    Asphalt

  • Hindernisse am Boden

    Obstacles

View additional Versions

 Series Transport Series CD, Wheel D
Applications

Applications

Applications

  • Platform trucks
  • Bins
  • Tow line trucks
  • Tow-line trucks
  • Chair dollies
  • Table dollies
  • Diagnostic equipment
  • Delivery containers
  • Refuse bins
  • Dollies
  • Refuse containers
  • Automobile test equipment
  • Trash containers

Advantages

  • silent in motion
  • good running performance
  • resistant to diluted acids
Material

Material

Wheel material

  • Tread: standard rubber tyre black, 85±5 Shore A
  • Quality nylon wheel centre

Fork material

  • Finish: electro-zinc plated, double ball bearing – revited, hardened steel balls thermoplastic dust protection ring, wheel axle bolted, total lock
Documents/CAD

Documents/CAD

data sheet

A short technical overview including a 3D model can be found here in PDF format:
Technical information, 3D model

3D CAD plans

The models have been carefully designed and validated for correctness. However, we take no responsibility for any incorrect or incomplete data.
