Transport Series CD, Wheel D

 PDF product sheet

max 205 kg
-20 °C - +60 °C
80-200 mm

++

swivels easily
++

wear resistant
++

shock proof
++

floor protective
++

weather proof

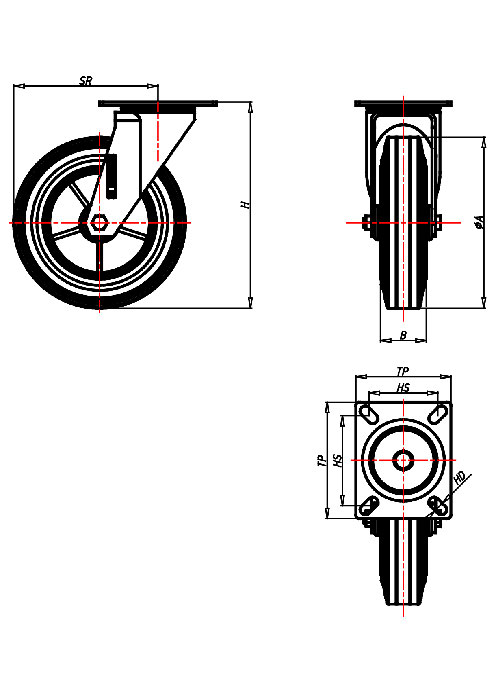

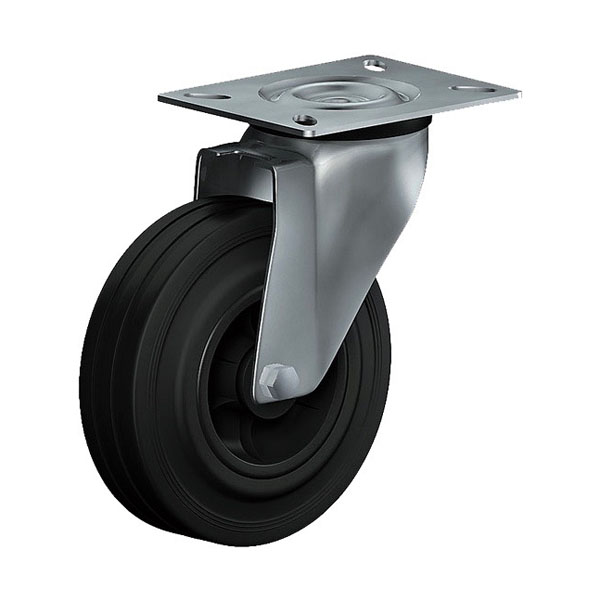

Swivel Castor

Show dimensions

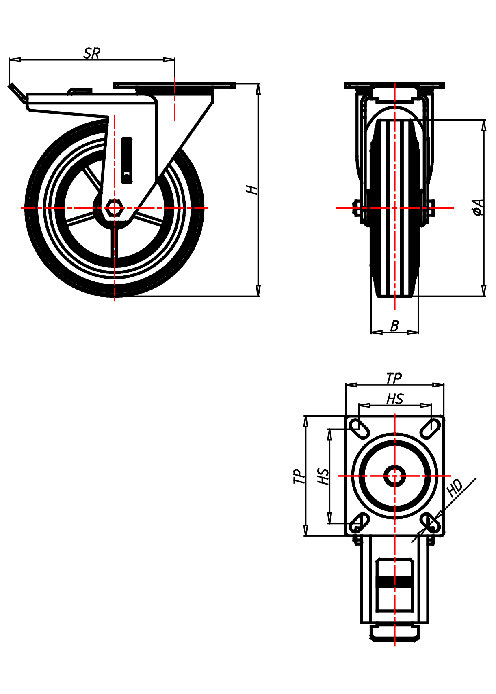

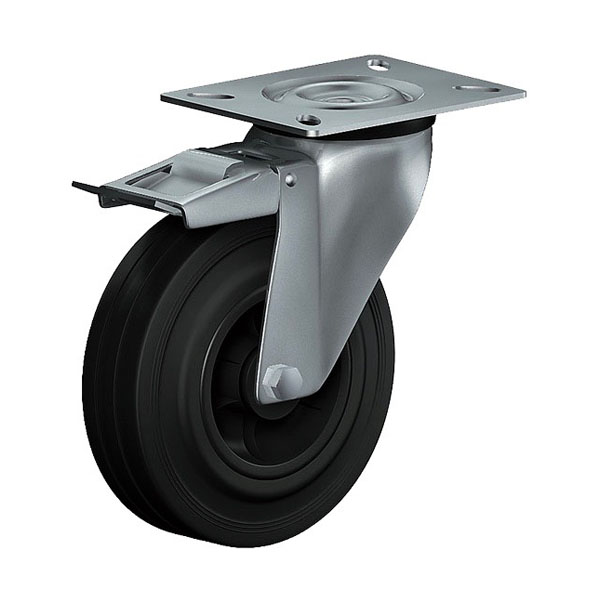

Swivel Castor With Total Lock

Show dimensions

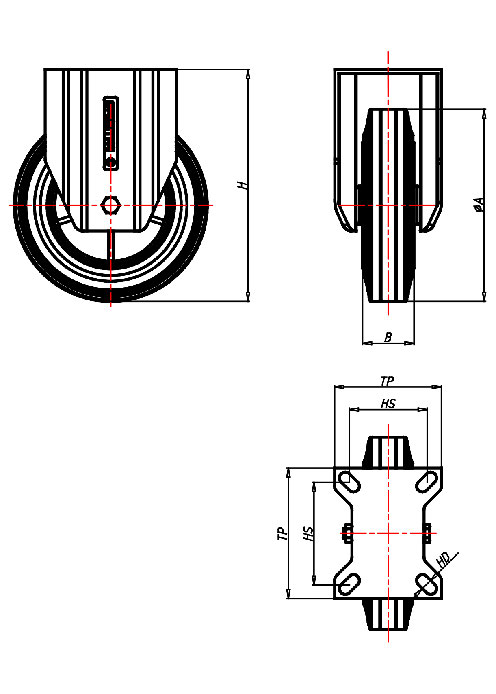

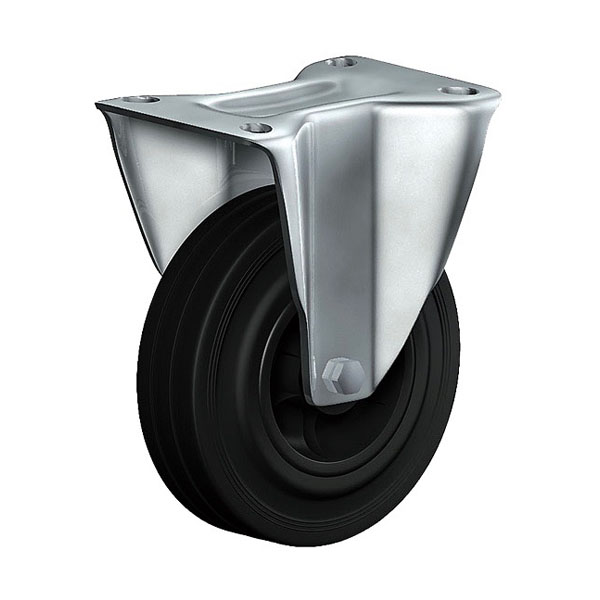

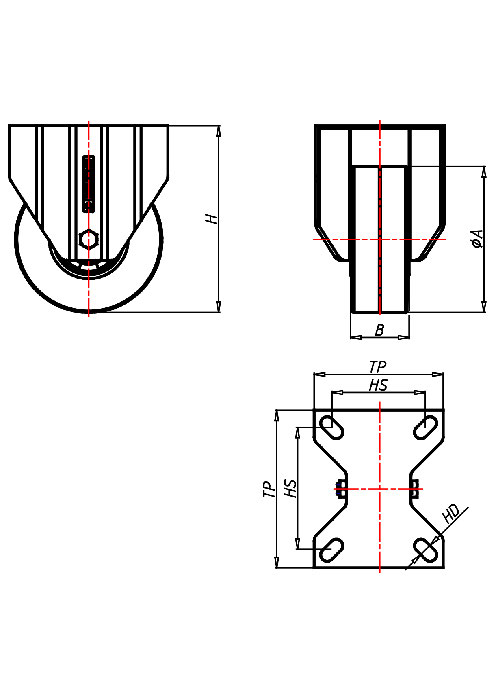

Fixed Castor

Show dimensions

Select the required versions in order to show them already filtered in the following table.

Floor condition

PVC/Concrete
Asphalt
Obstacles

Advantages

silent in motion
good running performance
resistant to diluted acids

Applications

Platform trucks
Bins
Tow line trucks
Tow-line trucks
Chair dollies
Table dollies
Diagnostic equipment
Delivery containers
Refuse bins
Dollies
Refuse containers
Automobile test equipment
Trash containers

Material

Tread: standard rubber tyre black, 85±5 Shore A

Quality nylon wheel centre

Fork material

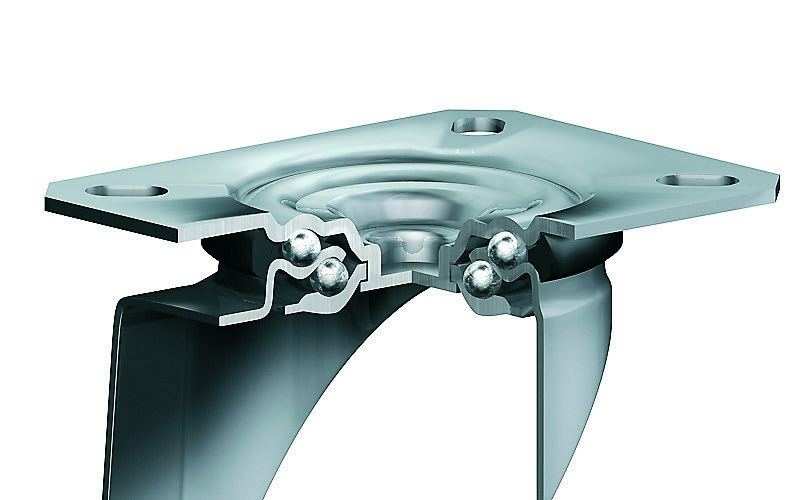

Finish: electro-zinc plated, double ball bearing – revited, hardened steel balls thermoplastic dust protection ring, wheel axle bolted, total lock

Cadenas Partcommunity-Portal

For a PDF with the technical description and detailed 3D CAD plans, please select the desired version. You can then download a PDF with the technical description or access detailed 3D CAD plans via our Cadenas Partcommunity portal.

The models have been carefully designed and validated for correctness. However, we take no responsibility for any incorrect or incomplete data.

Select version

48 of 48 items in this series are displayed.

Article number	Articel type	Wheel-Ø A x width B mm	Load Capacity kg	Overall height H mm	Dimension of top plate TP mm	Hole spacing HS mm	Hole-Ø HD mm	Swivel radius SR mm	Price €
CD 80 DB	Swivel castor	80x30	50	106	102x83	80x60	9	75	21,60
Transport Series CD, Wheel D Swivel castor Wheel-∅ x width [mm]: 80x30 Technische Daten Tragkraft kg 50 Bauhöhe H mm 106 Plattengröße TP mm 102x83 Lochabstand HS mm 80x60 Loch-Ø HD mm 9 Störkreisradius SR mm 75 Radlagerung Roller bearing PDF Data sheet 3D model (Cardenas Customer portal)
CDT 80 DB	Swivel castor with total lock	80x30	50	106	102x83	80x60	9	108	34,50
Transport Series CD, Wheel D Swivel castor with total lock Wheel-∅ x width [mm]: 80x30 Technische Daten Tragkraft kg 50 Bauhöhe H mm 106 Plattengröße TP mm 102x83 Lochabstand HS mm 80x60 Loch-Ø HD mm 9 Störkreisradius SR mm 108 Radlagerung Roller bearing PDF Data sheet 3D model (Cardenas Customer portal)
CDF 80 DB	Fixed castor	80x30	50	106	102x83	80x60	9		14,80
Transport Series CD, Wheel D Fixed castor Wheel-∅ x width [mm]: 80x30 Technische Daten Tragkraft kg 50 Bauhöhe H mm 106 Plattengröße TP mm 102x83 Lochabstand HS mm 80x60 Loch-Ø HD mm 9 Radlagerung Roller bearing PDF Data sheet 3D model (Cardenas Customer portal)
CD 80 D	Swivel castor	80x30	50	106	102x83	80x60	9	75	20,40
Transport Series CD, Wheel D Swivel castor Wheel-∅ x width [mm]: 80x30 Technische Daten Tragkraft kg 50 Bauhöhe H mm 106 Plattengröße TP mm 102x83 Lochabstand HS mm 80x60 Loch-Ø HD mm 9 Störkreisradius SR mm 75 Radlagerung Nylon plain bearing PDF Data sheet 3D model (Cardenas Customer portal)
CDT 80 D	Swivel castor with total lock	80x30	50	106	102x83	80x60	9	108	33,60
Transport Series CD, Wheel D Swivel castor with total lock Wheel-∅ x width [mm]: 80x30 Technische Daten Tragkraft kg 50 Bauhöhe H mm 106 Plattengröße TP mm 102x83 Lochabstand HS mm 80x60 Loch-Ø HD mm 9 Störkreisradius SR mm 108 Radlagerung Nylon plain bearing PDF Data sheet 3D model (Cardenas Customer portal)
CDF 80 D	Fixed castor	80x30	50	106	102x83	80x60	9		12,60
Transport Series CD, Wheel D Fixed castor Wheel-∅ x width [mm]: 80x30 Technische Daten Tragkraft kg 50 Bauhöhe H mm 106 Plattengröße TP mm 102x83 Lochabstand HS mm 80x60 Loch-Ø HD mm 9 Radlagerung Nylon plain bearing PDF Data sheet 3D model (Cardenas Customer portal)
CD 100 DB	Swivel castor	100x30	75	128	102x83	80x60	9	88	22,70
Transport Series CD, Wheel D Swivel castor Wheel-∅ x width [mm]: 100x30 Technische Daten Tragkraft kg 75 Bauhöhe H mm 128 Plattengröße TP mm 102x83 Lochabstand HS mm 80x60 Loch-Ø HD mm 9 Störkreisradius SR mm 88 Radlagerung Roller bearing PDF Data sheet 3D model (Cardenas Customer portal)
CDT 100 DB	Swivel castor with total lock	100x30	75	128	102x83	80x60	9	108	35,90
Transport Series CD, Wheel D Swivel castor with total lock Wheel-∅ x width [mm]: 100x30 Technische Daten Tragkraft kg 75 Bauhöhe H mm 128 Plattengröße TP mm 102x83 Lochabstand HS mm 80x60 Loch-Ø HD mm 9 Störkreisradius SR mm 108 Radlagerung Roller bearing PDF Data sheet 3D model (Cardenas Customer portal)
CDF 100 DB	Fixed castor	100x30	75	128	102x83	80x60	9		15,30
Transport Series CD, Wheel D Fixed castor Wheel-∅ x width [mm]: 100x30 Technische Daten Tragkraft kg 75 Bauhöhe H mm 128 Plattengröße TP mm 102x83 Lochabstand HS mm 80x60 Loch-Ø HD mm 9 Radlagerung Roller bearing
CD 100 D	Swivel castor	100x30	75	128	102x83	80x60	9	88	21,40
Transport Series CD, Wheel D Swivel castor Wheel-∅ x width [mm]: 100x30 Technische Daten Tragkraft kg 75 Bauhöhe H mm 128 Plattengröße TP mm 102x83 Lochabstand HS mm 80x60 Loch-Ø HD mm 9 Störkreisradius SR mm 88 Radlagerung Nylon plain bearing PDF Data sheet 3D model (Cardenas Customer portal)
CDT 100 D	Swivel castor with total lock	100x30	75	128	102x83	80x60	9	108	34,50
Transport Series CD, Wheel D Swivel castor with total lock Wheel-∅ x width [mm]: 100x30 Technische Daten Tragkraft kg 75 Bauhöhe H mm 128 Plattengröße TP mm 102x83 Lochabstand HS mm 80x60 Loch-Ø HD mm 9 Störkreisradius SR mm 108 Radlagerung Nylon plain bearing PDF Data sheet 3D model (Cardenas Customer portal)
CDF 100 D	Fixed castor	100x30	75	128	102x83	80x60	9		14,80
Transport Series CD, Wheel D Fixed castor Wheel-∅ x width [mm]: 100x30 Technische Daten Tragkraft kg 75 Bauhöhe H mm 128 Plattengröße TP mm 102x83 Lochabstand HS mm 80x60 Loch-Ø HD mm 9 Radlagerung Nylon plain bearing PDF Data sheet 3D model (Cardenas Customer portal)
CD 125 DB	Swivel castor	125x38	90	154	102x83	80x60	9	104	26,30
Transport Series CD, Wheel D Swivel castor Wheel-∅ x width [mm]: 125x38 Technische Daten Tragkraft kg 90 Bauhöhe H mm 154 Plattengröße TP mm 102x83 Lochabstand HS mm 80x60 Loch-Ø HD mm 9 Störkreisradius SR mm 104 Radlagerung Roller bearing PDF Data sheet 3D model (Cardenas Customer portal)
CDT 125 DB	Swivel castor with total lock	125x38	90	154	102x83	80x60	9	108	39,20
Transport Series CD, Wheel D Swivel castor with total lock Wheel-∅ x width [mm]: 125x38 Technische Daten Tragkraft kg 90 Bauhöhe H mm 154 Plattengröße TP mm 102x83 Lochabstand HS mm 80x60 Loch-Ø HD mm 9 Störkreisradius SR mm 108 Radlagerung Roller bearing PDF Data sheet 3D model (Cardenas Customer portal)
CDF 125 DB	Fixed castor	125x38	90	154	102x83	80x60	9		19,00
Transport Series CD, Wheel D Fixed castor Wheel-∅ x width [mm]: 125x38 Technische Daten Tragkraft kg 90 Bauhöhe H mm 154 Plattengröße TP mm 102x83 Lochabstand HS mm 80x60 Loch-Ø HD mm 9 Radlagerung Roller bearing PDF Data sheet 3D model (Cardenas Customer portal)
CD 125 D	Swivel castor	125x38	90	154	102x83	80x60	9	104	25,00
Transport Series CD, Wheel D Swivel castor Wheel-∅ x width [mm]: 125x38 Technische Daten Tragkraft kg 90 Bauhöhe H mm 154 Plattengröße TP mm 102x83 Lochabstand HS mm 80x60 Loch-Ø HD mm 9 Störkreisradius SR mm 104 Radlagerung Nylon plain bearing PDF Data sheet 3D model (Cardenas Customer portal)
CDT 125 D	Swivel castor with total lock	125x38	90	154	102x83	80x60	9	108	38,00
Transport Series CD, Wheel D Swivel castor with total lock Wheel-∅ x width [mm]: 125x38 Technische Daten Tragkraft kg 90 Bauhöhe H mm 154 Plattengröße TP mm 102x83 Lochabstand HS mm 80x60 Loch-Ø HD mm 9 Störkreisradius SR mm 108 Radlagerung Nylon plain bearing PDF Data sheet 3D model (Cardenas Customer portal)
CDF 125 D	Fixed castor	125x38	90	154	102x83	80x60	9		17,60
Transport Series CD, Wheel D Fixed castor Wheel-∅ x width [mm]: 125x38 Technische Daten Tragkraft kg 90 Bauhöhe H mm 154 Plattengröße TP mm 102x83 Lochabstand HS mm 80x60 Loch-Ø HD mm 9 Radlagerung Nylon plain bearing PDF Data sheet 3D model (Cardenas Customer portal)
CD 150 DB	Swivel castor	150x40	125	181	135x110	105x80	11	128	38,20
Transport Series CD, Wheel D Swivel castor Wheel-∅ x width [mm]: 150x40 Technische Daten Tragkraft kg 125 Bauhöhe H mm 181 Plattengröße TP mm 135x110 Lochabstand HS mm 105x80 Loch-Ø HD mm 11 Störkreisradius SR mm 128 Radlagerung Roller bearing PDF Data sheet 3D model (Cardenas Customer portal)
CDT 150 DB	Swivel castor with total lock	150x40	125	181	135x110	105x80	11	140	52,90
Transport Series CD, Wheel D Swivel castor with total lock Wheel-∅ x width [mm]: 150x40 Technische Daten Tragkraft kg 125 Bauhöhe H mm 181 Plattengröße TP mm 135x110 Lochabstand HS mm 105x80 Loch-Ø HD mm 11 Störkreisradius SR mm 140 Radlagerung Roller bearing PDF Data sheet 3D model (Cardenas Customer portal)
CDF 150 DB	Fixed castor	150x40	125	181	135x110	105x80	11		27,60
Transport Series CD, Wheel D Fixed castor Wheel-∅ x width [mm]: 150x40 Technische Daten Tragkraft kg 125 Bauhöhe H mm 181 Plattengröße TP mm 135x110 Lochabstand HS mm 105x80 Loch-Ø HD mm 11 Radlagerung Roller bearing PDF Data sheet 3D model (Cardenas Customer portal)
CL 150 DB	Swivel castor	150x40	125	181	102x83	80x60	9	128	34,60
Transport Series CD, Wheel D Swivel castor Wheel-∅ x width [mm]: 150x40 Technische Daten Tragkraft kg 125 Bauhöhe H mm 181 Plattengröße TP mm 102x83 Lochabstand HS mm 80x60 Loch-Ø HD mm 9 Störkreisradius SR mm 128 Radlagerung Roller bearing PDF Data sheet 3D model (Cardenas Customer portal)
CLT 150 DB	Swivel castor with total lock	150x40	125	181	102x83	80x60	9	140	49,10
Transport Series CD, Wheel D Swivel castor with total lock Wheel-∅ x width [mm]: 150x40 Technische Daten Tragkraft kg 125 Bauhöhe H mm 181 Plattengröße TP mm 102x83 Lochabstand HS mm 80x60 Loch-Ø HD mm 9 Störkreisradius SR mm 140 Radlagerung Roller bearing PDF Data sheet 3D model (Cardenas Customer portal)
CLF 150 DB	Fixed castor	150x40	125	181	102x83	80x60	9		25,30
Transport Series CD, Wheel D Fixed castor Wheel-∅ x width [mm]: 150x40 Technische Daten Tragkraft kg 125 Bauhöhe H mm 181 Plattengröße TP mm 102x83 Lochabstand HS mm 80x60 Loch-Ø HD mm 9 Radlagerung Roller bearing PDF Data sheet 3D model (Cardenas Customer portal)
CD 150 D	Swivel castor	150x40	125	181	135x110	105x80	11	128	37,10
Transport Series CD, Wheel D Swivel castor Wheel-∅ x width [mm]: 150x40 Technische Daten Tragkraft kg 125 Bauhöhe H mm 181 Plattengröße TP mm 135x110 Lochabstand HS mm 105x80 Loch-Ø HD mm 11 Störkreisradius SR mm 128 Radlagerung Nylon plain bearing PDF Data sheet 3D model (Cardenas Customer portal)
CDT 150 D	Swivel castor with total lock	150x40	125	181	135x110	105x80	11	140	51,70
Transport Series CD, Wheel D Swivel castor with total lock Wheel-∅ x width [mm]: 150x40 Technische Daten Tragkraft kg 125 Bauhöhe H mm 181 Plattengröße TP mm 135x110 Lochabstand HS mm 105x80 Loch-Ø HD mm 11 Störkreisradius SR mm 140 Radlagerung Nylon plain bearing PDF Data sheet 3D model (Cardenas Customer portal)
CDF 150 D	Fixed castor	150x40	125	181	135x110	105x80	11		26,20
Transport Series CD, Wheel D Fixed castor Wheel-∅ x width [mm]: 150x40 Technische Daten Tragkraft kg 125 Bauhöhe H mm 181 Plattengröße TP mm 135x110 Lochabstand HS mm 105x80 Loch-Ø HD mm 11 Radlagerung Nylon plain bearing PDF Data sheet 3D model (Cardenas Customer portal)
CL 150 D	Swivel castor	150x40	125	181	102x83	80x60	9	128	33,90
Transport Series CD, Wheel D Swivel castor Wheel-∅ x width [mm]: 150x40 Technische Daten Tragkraft kg 125 Bauhöhe H mm 181 Plattengröße TP mm 102x83 Lochabstand HS mm 80x60 Loch-Ø HD mm 9 Störkreisradius SR mm 128 Radlagerung Nylon plain bearing PDF Data sheet 3D model (Cardenas Customer portal)
CLT 150 D	Swivel castor with total lock	150x40	125	181	102x83	80x60	9	140	51,70
Transport Series CD, Wheel D Swivel castor with total lock Wheel-∅ x width [mm]: 150x40 Technische Daten Tragkraft kg 125 Bauhöhe H mm 181 Plattengröße TP mm 102x83 Lochabstand HS mm 80x60 Loch-Ø HD mm 9 Störkreisradius SR mm 140 Radlagerung Nylon plain bearing PDF Data sheet 3D model (Cardenas Customer portal)
CLF 150 D	Fixed castor	150x40	125	181	102x83	80x60	9		24,80
Transport Series CD, Wheel D Fixed castor Wheel-∅ x width [mm]: 150x40 Technische Daten Tragkraft kg 125 Bauhöhe H mm 181 Plattengröße TP mm 102x83 Lochabstand HS mm 80x60 Loch-Ø HD mm 9 Radlagerung Nylon plain bearing PDF Data sheet 3D model (Cardenas Customer portal)
CD 160 DB	Swivel castor	160x40	135	191	135x110	105x80	11	133	39,00
Transport Series CD, Wheel D Swivel castor Wheel-∅ x width [mm]: 160x40 Technische Daten Tragkraft kg 135 Bauhöhe H mm 191 Plattengröße TP mm 135x110 Lochabstand HS mm 105x80 Loch-Ø HD mm 11 Störkreisradius SR mm 133 Radlagerung Roller bearing PDF Data sheet 3D model (Cardenas Customer portal)
CDT 160 DB	Swivel castor with total lock	160x40	135	191	135x110	105x80	11	140	53,40
Transport Series CD, Wheel D Swivel castor with total lock Wheel-∅ x width [mm]: 160x40 Technische Daten Tragkraft kg 135 Bauhöhe H mm 191 Plattengröße TP mm 135x110 Lochabstand HS mm 105x80 Loch-Ø HD mm 11 Störkreisradius SR mm 140 Radlagerung Roller bearing PDF Data sheet 3D model (Cardenas Customer portal)
CDF 160 DB	Fixed castor	160x40	135	191	135x110	105x80	11		27,60
Transport Series CD, Wheel D Fixed castor Wheel-∅ x width [mm]: 160x40 Technische Daten Tragkraft kg 135 Bauhöhe H mm 191 Plattengröße TP mm 135x110 Lochabstand HS mm 105x80 Loch-Ø HD mm 11 Radlagerung Roller bearing PDF Data sheet 3D model (Cardenas Customer portal)
CD 160 D	Swivel castor	160x40	135	191	135x110	105x80	11	133	37,70
Transport Series CD, Wheel D Swivel castor Wheel-∅ x width [mm]: 160x40 Technische Daten Tragkraft kg 135 Bauhöhe H mm 191 Plattengröße TP mm 135x110 Lochabstand HS mm 105x80 Loch-Ø HD mm 11 Störkreisradius SR mm 133 Radlagerung Nylon plain bearing PDF Data sheet 3D model (Cardenas Customer portal)
CDT 160 D	Swivel castor with total lock	160x40	135	191	135x110	105x80	11	140	52,60
Transport Series CD, Wheel D Swivel castor with total lock Wheel-∅ x width [mm]: 160x40 Technische Daten Tragkraft kg 135 Bauhöhe H mm 191 Plattengröße TP mm 135x110 Lochabstand HS mm 105x80 Loch-Ø HD mm 11 Störkreisradius SR mm 140 Radlagerung Nylon plain bearing PDF Data sheet 3D model (Cardenas Customer portal)
CDF 160 D	Fixed castor	160x40	135	191	135x110	105x80	11		26,30
Transport Series CD, Wheel D Fixed castor Wheel-∅ x width [mm]: 160x40 Technische Daten Tragkraft kg 135 Bauhöhe H mm 191 Plattengröße TP mm 135x110 Lochabstand HS mm 105x80 Loch-Ø HD mm 11 Radlagerung Nylon plain bearing PDF Data sheet 3D model (Cardenas Customer portal)
CD 180 DB	Swivel castor	180x45	170	218	135x110	105x80	11	149	51,70
Transport Series CD, Wheel D Swivel castor Wheel-∅ x width [mm]: 180x45 Technische Daten Tragkraft kg 170 Bauhöhe H mm 218 Plattengröße TP mm 135x110 Lochabstand HS mm 105x80 Loch-Ø HD mm 11 Störkreisradius SR mm 149 Radlagerung Roller bearing PDF Data sheet 3D model (Cardenas Customer portal)
CDT 180 DB	Swivel castor with total lock	180x45	170	218	135x110	105x80	11	168	70,40
Transport Series CD, Wheel D Swivel castor with total lock Wheel-∅ x width [mm]: 180x45 Technische Daten Tragkraft kg 170 Bauhöhe H mm 218 Plattengröße TP mm 135x110 Lochabstand HS mm 105x80 Loch-Ø HD mm 11 Störkreisradius SR mm 168 Radlagerung Roller bearing PDF Data sheet 3D model (Cardenas Customer portal)
CDF 180 DB	Fixed castor	180x45	170	218	135x110	105x80	11		38,20
Transport Series CD, Wheel D Fixed castor Wheel-∅ x width [mm]: 180x45 Technische Daten Tragkraft kg 170 Bauhöhe H mm 218 Plattengröße TP mm 135x110 Lochabstand HS mm 105x80 Loch-Ø HD mm 11 Radlagerung Roller bearing PDF Data sheet 3D model (Cardenas Customer portal)
CD 180 D	Swivel castor	180x45	170	218	135x110	105x80	11	149	50,80
Transport Series CD, Wheel D Swivel castor Wheel-∅ x width [mm]: 180x45 Technische Daten Tragkraft kg 170 Bauhöhe H mm 218 Plattengröße TP mm 135x110 Lochabstand HS mm 105x80 Loch-Ø HD mm 11 Störkreisradius SR mm 149 Radlagerung Nylon plain bearing PDF Data sheet 3D model (Cardenas Customer portal)
CDT 180 D	Swivel castor with total lock	180x45	170	218	135x110	105x80	11	168	68,60
Transport Series CD, Wheel D Swivel castor with total lock Wheel-∅ x width [mm]: 180x45 Technische Daten Tragkraft kg 170 Bauhöhe H mm 218 Plattengröße TP mm 135x110 Lochabstand HS mm 105x80 Loch-Ø HD mm 11 Störkreisradius SR mm 168 Radlagerung Nylon plain bearing PDF Data sheet 3D model (Cardenas Customer portal)
CDF 180 D	Fixed castor	180x45	170	218	135x110	105x80	11		37,00
Transport Series CD, Wheel D Fixed castor Wheel-∅ x width [mm]: 180x45 Technische Daten Tragkraft kg 170 Bauhöhe H mm 218 Plattengröße TP mm 135x110 Lochabstand HS mm 105x80 Loch-Ø HD mm 11 Radlagerung Nylon plain bearing PDF Data sheet 3D model (Cardenas Customer portal)
CD 200 DB	Swivel castor	200x50	205	240	135x110	105x80	11	161	54,50
Transport Series CD, Wheel D Swivel castor Wheel-∅ x width [mm]: 200x50 Technische Daten Tragkraft kg 205 Bauhöhe H mm 240 Plattengröße TP mm 135x110 Lochabstand HS mm 105x80 Loch-Ø HD mm 11 Störkreisradius SR mm 161 Radlagerung Roller bearing PDF Data sheet 3D model (Cardenas Customer portal)
CDT 200 DB	Swivel castor with total lock	200x50	205	240	135x110	105x80	11	168	72,90
Transport Series CD, Wheel D Swivel castor with total lock Wheel-∅ x width [mm]: 200x50 Technische Daten Tragkraft kg 205 Bauhöhe H mm 240 Plattengröße TP mm 135x110 Lochabstand HS mm 105x80 Loch-Ø HD mm 11 Störkreisradius SR mm 168 Radlagerung Roller bearing PDF Data sheet 3D model (Cardenas Customer portal)
CDF 200 DB	Fixed castor	200x50	205	240	135x110	105x80	11		40,40
Transport Series CD, Wheel D Fixed castor Wheel-∅ x width [mm]: 200x50 Technische Daten Tragkraft kg 205 Bauhöhe H mm 240 Plattengröße TP mm 135x110 Lochabstand HS mm 105x80 Loch-Ø HD mm 11 Radlagerung Roller bearing PDF Data sheet 3D model (Cardenas Customer portal)
CD 200 D	Swivel castor	200x50	205	240	135x110	105x80	11	161	52,60
Transport Series CD, Wheel D Swivel castor Wheel-∅ x width [mm]: 200x50 Technische Daten Tragkraft kg 205 Bauhöhe H mm 240 Plattengröße TP mm 135x110 Lochabstand HS mm 105x80 Loch-Ø HD mm 11 Störkreisradius SR mm 161 Radlagerung Nylon plain bearing PDF Data sheet 3D model (Cardenas Customer portal)
CDT 200 D	Swivel castor with total lock	200x50	205	240	135x110	105x80	11	168	71,50
Transport Series CD, Wheel D Swivel castor with total lock Wheel-∅ x width [mm]: 200x50 Technische Daten Tragkraft kg 205 Bauhöhe H mm 240 Plattengröße TP mm 135x110 Lochabstand HS mm 105x80 Loch-Ø HD mm 11 Störkreisradius SR mm 168 Radlagerung Nylon plain bearing PDF Data sheet 3D model (Cardenas Customer portal)
CDF 200 D	Fixed castor	200x50	205	240	135x110	105x80	11		39,20
Transport Series CD, Wheel D Fixed castor Wheel-∅ x width [mm]: 200x50 Technische Daten Tragkraft kg 205 Bauhöhe H mm 240 Plattengröße TP mm 135x110 Lochabstand HS mm 105x80 Loch-Ø HD mm 11 Radlagerung Nylon plain bearing PDF Data sheet 3D model (Cardenas Customer portal)

Suitable accessories

Counter plate 105x85x3,5 mm
Art.No. GEGENPLATTE 1

blank
Stahl blank
105x85x3,5
80x60

Qty € 3,90/Pc., exkl. Shipping
Counter plate 135x110x5 mm
Art.No. GEGENPLATTE 2

blank
Stahl blank
135x110x5
105x80

Qty € 6,70/Pc., exkl. Shipping
Directional lock DL1
Art.No. DL 1

360 Grad
Stahlblech verzinkt
135x110
105x80

Qty € 20,40/Pc., exkl. Shipping
Directional lock DL2
Art.No. DL 2

360 Grad
Stahlblech verzinkt
135x110
105x80

Qty € 20,40/Pc., exkl. Shipping
Directional lock DL5
Art.No. DL 5

360 Grad
Stahlblech verzinkt
102x83, 105x85
80x60

Qty € 20,40/Pc., exkl. Shipping
Fixing Bolt M8x20 mm
Art.No. M 8X20

verzinkt
Stahl 8.8 verzinkt
M8x20

Qty € 0,20/Pc., exkl. Shipping
Fixing bolt M10x20 mm
Art.No. M 10X20

verzinkt
Stahl 8.8 verzinkt
M10x20

Qty € 0,40/Pc., exkl. Shipping
Foot guard zinc plated
Art.No. FUSSSCHUTZ VZ

Qty € auf Anfrage/Pc., exkl. Shipping
