Catalog page 84
Page 1 of 27 found pages
Search catalogue page

Heavy Duty Castors

1270 kg

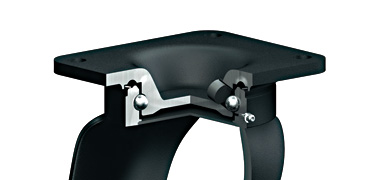

Series GT up to max. 1270 kg

Non-Kingpin swivel head with hardened steel raceways and hardened steel balls, forged and tempered, fitted with grease nipple, wheel axle bolted and locked

Pages 85-87

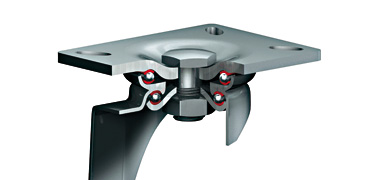

Series PD up to max. 800 kg

Finish: electro-zinc plated, hardened steel balls, double ball race – hardened steel sheet, with strong Kingpin bolted and locked – adjustable, thermoplastic dust protection ring and seal, wheel axle bolted, adjustable total lock – leading or trailing available

Pages 88-104

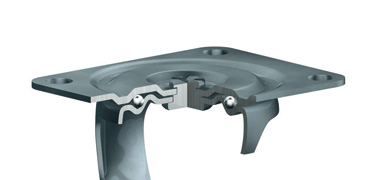

Series 61 up to max. 680 kg

Large swivel bearing – for a long service life, zinc plated, specially formed forklegs – high load capacity, wheel axle bolted – locked, wheel brake

Pages 105-108

Castors for staging applications

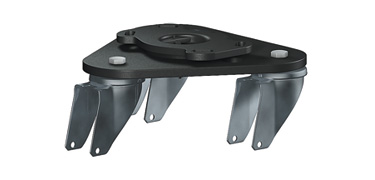

Scene Shifter up to max. 800 kg with original Hamburg staging castors, 2 precision ball bearings, excellent manoevrability, ideal for straight runs in confined spaces

Pages 110-111

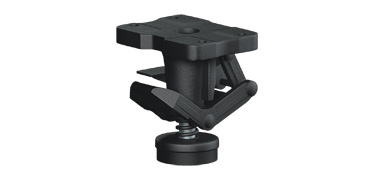

Truck Locks Series TLCH

Truck locks provide a ready means of instantly securing a truck in a fixed position, whilst allowing complete freedom of movement to be restored by a quick movement of the foot pedal. The operating force is moderate and does not vary with the load, as the overcentre linkage presses the rubber pad into firm contact without lifting the castors off the ground.

Page 109
