Tread: cast polyurethane, 95 ± 2 Shore A crowned
Core: Die-cast aluminium alloy

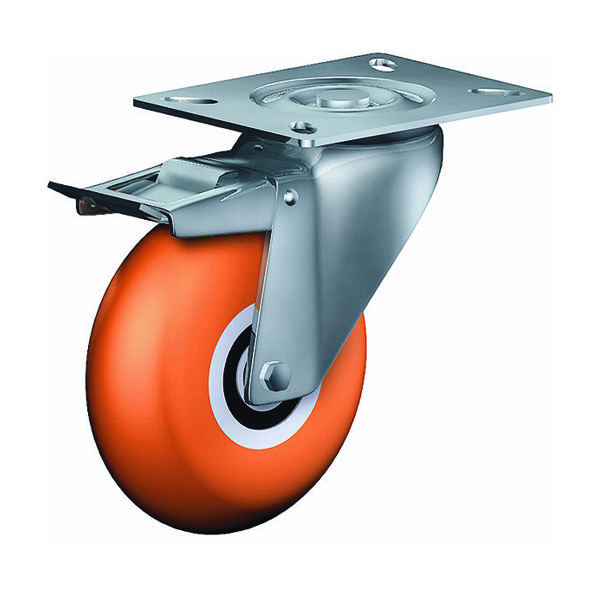

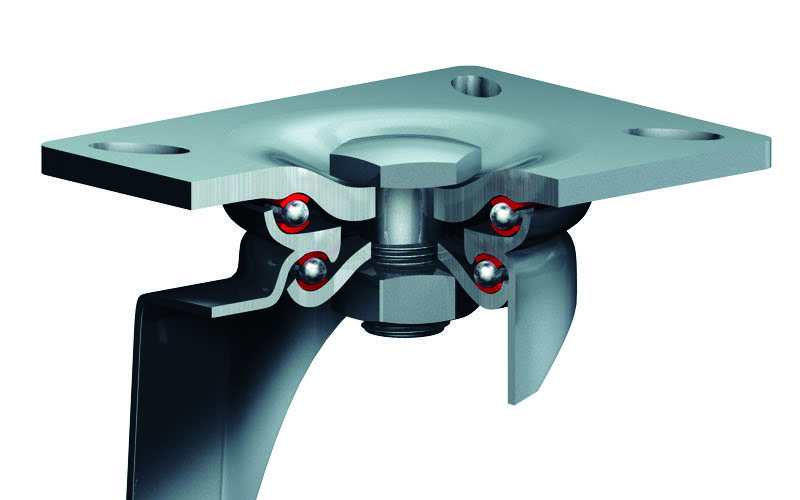

Finish: electro-zinc plated, hardened steel balls, double ball race – hardened steel sheet, with strong Kingpin bolted and locked – adjustable, thermoplastic dust protection ring and seal, wheel axle bolted, adjustable total lock – leading or trailing available
For a PDF with the technical description and detailed 3D CAD plans, please select the desired version. You can then download a PDF with the technical description or access detailed 3D CAD plans via our Cadenas Partcommunity portal.
The models have been carefully designed and validated for correctness. However, we take no responsibility for any incorrect or incomplete data.
blank
Stahl blank
105x85x3,5
80x60
blank
Stahl blank
135x110x8
105x80
360 Grad
Stahlblech verzinkt
135x110
105x80
verzinkt
Stahl 8.8 verzinkt
M8x20
verzinkt
Stahl 8.8 verzinkt
M12x25
Wheel coated in polyurethane, 90±3 Shore A elecrically conductive <104Ω
Fork Finish: electro-zinc plated, hardened steel balls, double ball race – hardened steel sheet, with strong Kingpin bolted and locked – adjustable, thermoplastic dust protection ring and seal, wheel axle bolted, adjustable total lock – leading or trailing available
Wheel Coated in cast polyurethane, 95±3 Shore A
Fork Finish: electro-zinc plated, hardened steel balls, double ball race – hardened steel sheet, with strong Kingpin bolted and locked – adjustable, thermoplastic dust protection ring and seal, wheel axle bolted, adjustable total lock – leading or trailing available
Wheel Coated in injected polyurethane, 58±3 Shore D
Fork Finish: electro-zinc plated, hardened steel balls, double ball race – hardened steel sheet, with strong Kingpin bolted and locked – adjustable, thermoplastic dust protection ring and seal, wheel axle bolted, adjustable total lock – leading or trailing available
Wheel SUPER-Elastic solid rubber tyre black 55 ± 3 Shore A soft, crowned treat
Fork Finish: electro-zinc plated, hardened steel balls, double ball race – hardened steel sheet, with strong Kingpin bolted and locked – adjustable, thermoplastic dust protection ring and seal, wheel axle bolted, adjustable total lock – leading or trailing available
Wheel SUPER-Elastic solid rubber tyre black 55 ± 3 Shore A soft, crowned treat
Fork Finish: electro-zinc plated, hardened steel balls, double ball race – hardened steel sheet, with strong Kingpin bolted and locked – adjustable, thermoplastic dust protection ring and seal, wheel axle bolted, adjustable total lock – leading or trailing available
