Institutional Series 330LR, Wheel G

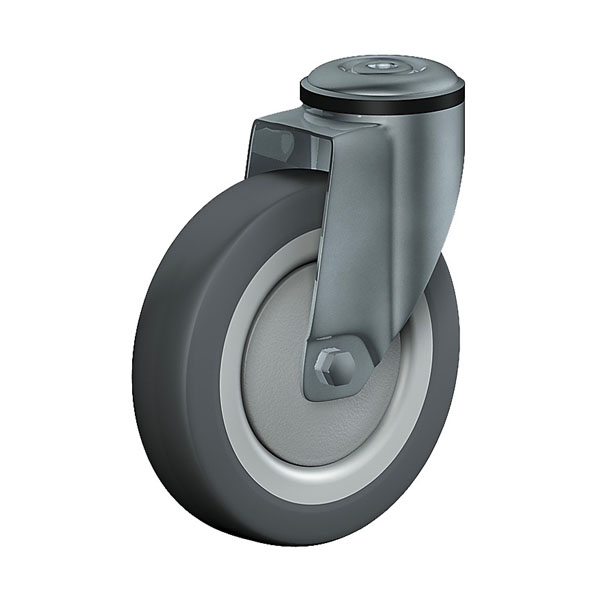

  • Swivel Castor Institutional Series 330LR, Wheel G

    SWIVEL CASTOR

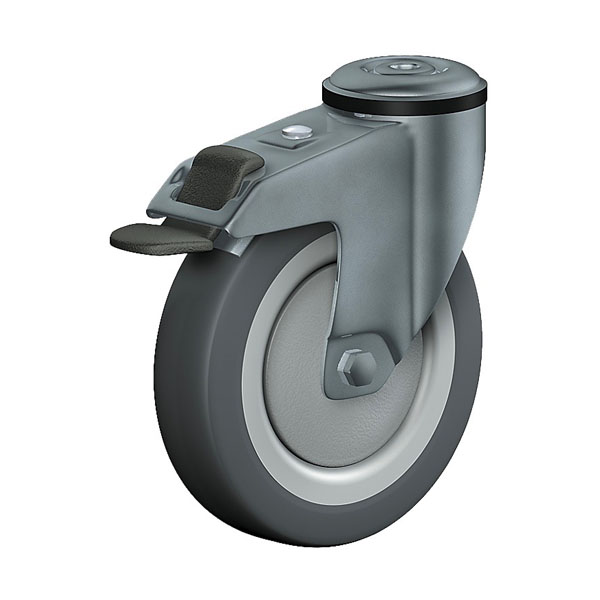

  • Swivel Castor With Total Lock Institutional Series 330LR, Wheel G

    SWIVEL CASTOR WITH TOTAL LOCK

Select the required versions in order to show them already filtered in the following table.

Institutional Series 330LR, Wheel G

PDF product sheet
  • max 100 kg
  • -20 °C - +60 °C
  • 125-125 mm
  • ++
    swivels easily
  • ++
    wear resistant
  • ++
    shock proof
  • +++
    floor protective
  • ++
    weather proof
  • Swivel Castor Institutional Series 330LR, Wheel G

    Swivel Castor

  • Swivel Castor With Total Lock Institutional Series 330LR, Wheel G

    Swivel Castor With Total Lock

Select the required versions in order to show them already filtered in the following table.

Description

Advantages

  • non-marking - floor protective
  • silent in motion
  • good running performance
  • resistant to diluted acids

Applications

  • Metal-Technology
  • Laundry trucks
  • Kitchen equipment
  • Workshops
  • Laboratory equipment
  • Room service carts
  • Instrument stands
  • School furniture
  • Carpentry
  • Health-Professionals

Material

Material

Standard rubber tyre grey
Nylon rim

Fork material

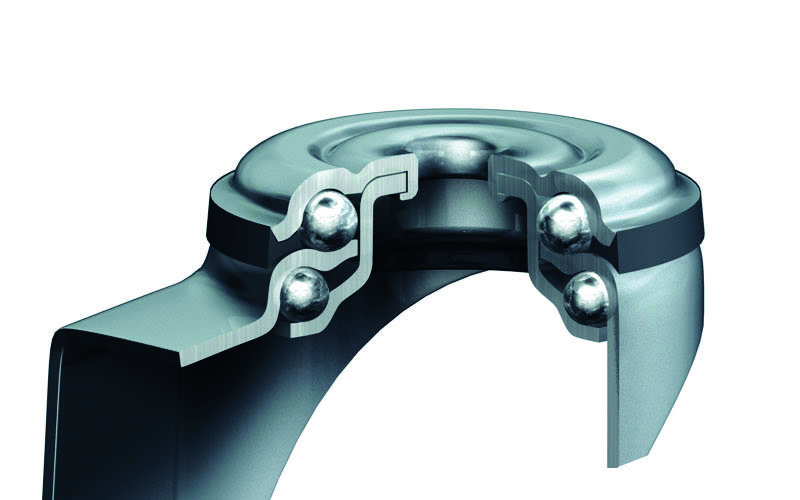

Finish: zinc plated and chromate coated, large double ball bearing – Ø 57 mm, revited, dust protection ring, wheel axle bolted and locked, total lock – spring stainless steel

Documents/CAD

Cadenas Partcommunity-Portal

For a PDF with the technical description and detailed 3D CAD plans, please select the desired version. You can then download a PDF with the technical description or access detailed 3D CAD plans via our Cadenas Partcommunity portal.

The models have been carefully designed and validated for correctness. However, we take no responsibility for any incorrect or incomplete data.

Select version

Select version

12 of 12 items in this series are displayed.

Article number Articel type Price € QTY
330L RÜ10 127 GK

Institutional Series 330LR, Wheel G

Swivel castor Wheel-∅ x width [mm]: 125x32

Technische Daten

  • Tragkraft kg 100
  • Bauhöhe H mm 158
  • Loch-Ø HD mm 10,5
  • Störkreisradius SR mm 103
  • Radlagerung Ball bearing
331L RÜ10 127 GK

Institutional Series 330LR, Wheel G

Swivel castor with total lock Wheel-∅ x width [mm]: 125x32

Technische Daten

  • Tragkraft kg 100
  • Bauhöhe H mm 158
  • Loch-Ø HD mm 10,5
  • Störkreisradius SR mm 130
  • Radlagerung Ball bearing
330L RÜ12 127 GK

Institutional Series 330LR, Wheel G

Swivel castor Wheel-∅ x width [mm]: 125x32

Technische Daten

  • Tragkraft kg 100
  • Bauhöhe H mm 158
  • Loch-Ø HD mm 12,5
  • Störkreisradius SR mm 103
  • Radlagerung Ball bearing
331L RÜ12 127 GK

Institutional Series 330LR, Wheel G

Swivel castor with total lock Wheel-∅ x width [mm]: 125x32

Technische Daten

  • Tragkraft kg 100
  • Bauhöhe H mm 158
  • Loch-Ø HD mm 12,5
  • Störkreisradius SR mm 130
  • Radlagerung Ball bearing
330L RÜ10 127 GKL

Institutional Series 330LR, Wheel G

Swivel castor Wheel-∅ x width [mm]: 125x32

Technische Daten

  • Tragkraft kg 100
  • Bauhöhe H mm 158
  • Loch-Ø HD mm 10,5
  • Störkreisradius SR mm 103
  • Radlagerung Ball bearing
331L RÜ10 127 GKL

Institutional Series 330LR, Wheel G

Swivel castor with total lock Wheel-∅ x width [mm]: 125x32

Technische Daten

  • Tragkraft kg 100
  • Bauhöhe H mm 158
  • Loch-Ø HD mm 10,5
  • Störkreisradius SR mm 130
  • Radlagerung Ball bearing
330L RÜ12 127 GKL

Institutional Series 330LR, Wheel G

Swivel castor Wheel-∅ x width [mm]: 125x32

Technische Daten

  • Tragkraft kg 100
  • Bauhöhe H mm 158
  • Loch-Ø HD mm 12,5
  • Störkreisradius SR mm 103
  • Radlagerung Ball bearing
331L RÜ12 127 GKL

Institutional Series 330LR, Wheel G

Swivel castor with total lock Wheel-∅ x width [mm]: 125x32

Technische Daten

  • Tragkraft kg 100
  • Bauhöhe H mm 158
  • Loch-Ø HD mm 12,5
  • Störkreisradius SR mm 130
  • Radlagerung Ball bearing
330L RÜ10 127 GL

Institutional Series 330LR, Wheel G

Swivel castor Wheel-∅ x width [mm]: 125x32

Technische Daten

  • Tragkraft kg 100
  • Bauhöhe H mm 158
  • Loch-Ø HD mm 10,5
  • Störkreisradius SR mm 103
  • Radlagerung Nylon plain bearing
331L RÜ10 127 GL

Institutional Series 330LR, Wheel G

Swivel castor with total lock Wheel-∅ x width [mm]: 125x32

Technische Daten

  • Tragkraft kg 100
  • Bauhöhe H mm 158
  • Loch-Ø HD mm 10,5
  • Störkreisradius SR mm 130
  • Radlagerung Nylon plain bearing
330L RÜ12 127 GL

Institutional Series 330LR, Wheel G

Swivel castor Wheel-∅ x width [mm]: 125x32

Technische Daten

  • Tragkraft kg 100
  • Bauhöhe H mm 158
  • Loch-Ø HD mm 12,5
  • Störkreisradius SR mm 103
  • Radlagerung Nylon plain bearing
331L RÜ12 127 GL

Institutional Series 330LR, Wheel G

Swivel castor with total lock Wheel-∅ x width [mm]: 125x32

Technische Daten

  • Tragkraft kg 100
  • Bauhöhe H mm 158
  • Loch-Ø HD mm 12,5
  • Störkreisradius SR mm 130
  • Radlagerung Nylon plain bearing
