Institutional Series 330LZ, Wheel EL

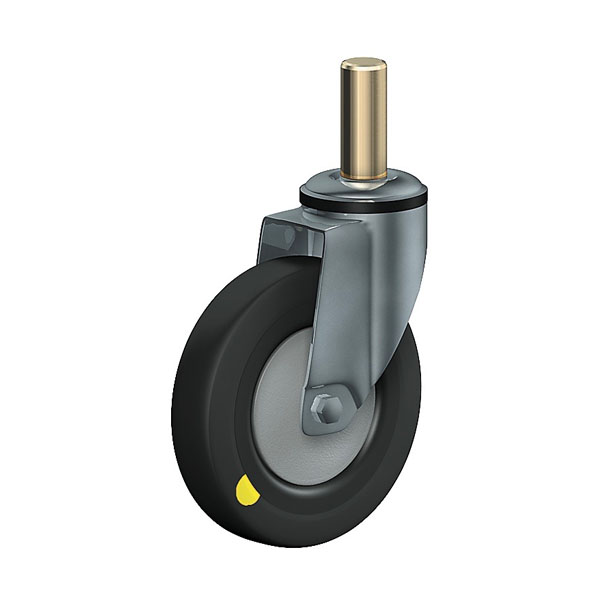

  • Swivel Castor Institutional Series 330LZ, Wheel EL

    SWIVEL CASTOR

  • Swivel Castor With Total Lock Institutional Series 330LZ, Wheel EL

    SWIVEL CASTOR WITH TOTAL LOCK

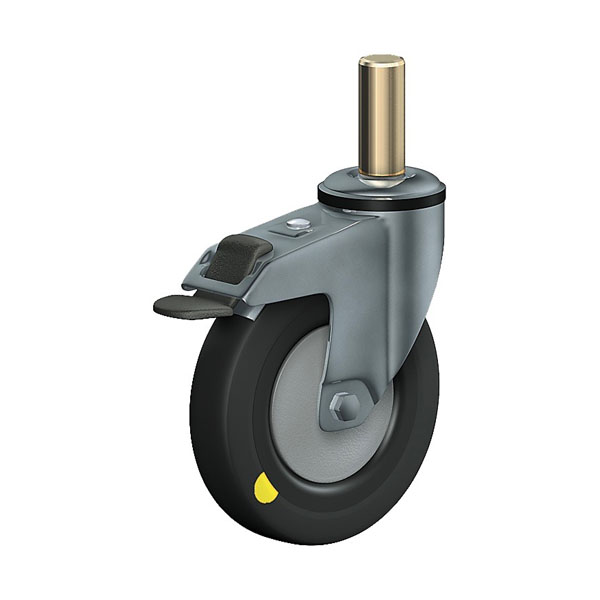

  • With Directional Lock Institutional Series 330LZ, Wheel EL

    WITH DIRECTIONAL LOCK

Select the required versions in order to show them already filtered in the following table.

Institutional Series 330LZ, Wheel ELelectrically conductive

PDF product sheet
  • max 100 kg
  • -20 °C - +60 °C
  • 125-125 mm
  • ++
    swivels easily
  • +++
    wear resistant
  • ++
    shock proof
  • +++
    floor protective
  • ++
    weather proof
  • Swivel Castor Institutional Series 330LZ, Wheel EL

    Swivel Castor

  • Swivel Castor With Total Lock Institutional Series 330LZ, Wheel EL

    Swivel Castor With Total Lock

  • With Directional Lock Institutional Series 330LZ, Wheel EL

    With Directional Lock

Select the required versions in order to show them already filtered in the following table.

Description

Advantages

  • electrically conductive
  • silent in motion
  • good running performance
  • resistant to diluted acids

Applications

  • Metal-Technology
  • Kitchen equipment
  • Workshops
  • Laboratory equipment
  • Room service carts
  • Instrument stands
  • School furniture
  • Carpentry
  • Health-Professionals

Material

Material

rubber tyre, electrically
conductive, volume resistance value <104Ω
nylon rim, conductive, volume resistance value <104Ω

Fork material

Finish: zinc plated and chromate coated, large double ball bearing – Ø 57 mm, stem revited, wheel axle bolted and locked, total-/ directional lock – spring stainless steel

Documents/CAD

Cadenas Partcommunity-Portal

For a PDF with the technical description and detailed 3D CAD plans, please select the desired version. You can then download a PDF with the technical description or access detailed 3D CAD plans via our Cadenas Partcommunity portal.

The models have been carefully designed and validated for correctness. However, we take no responsibility for any incorrect or incomplete data.

Select version

Select version

2 of 2 items in this series are displayed.

Article number Articel type Price € QTY
330L Z18 127 EL

Institutional Series 330LZ, Wheel EL

Swivel castor Wheel-∅ x width [mm]: 125x32

Technische Daten

  • Tragkraft kg 100
  • Bauhöhe H mm 161
  • Zapfen mm 18x62
  • Querbohrung mm M6 auf 30
  • Störkreisradius SR mm 103
  • Radlagerung Ball bearing
331L Z18 127 EL

Institutional Series 330LZ, Wheel EL

Swivel castor with total lock Wheel-∅ x width [mm]: 125x32

Technische Daten

  • Tragkraft kg 100
  • Bauhöhe H mm 161
  • Zapfen mm 18x62
  • Querbohrung mm M6 auf 19
  • Störkreisradius SR mm 130
  • Radlagerung Ball bearing
