Institutional Series 330P, Wheel EL

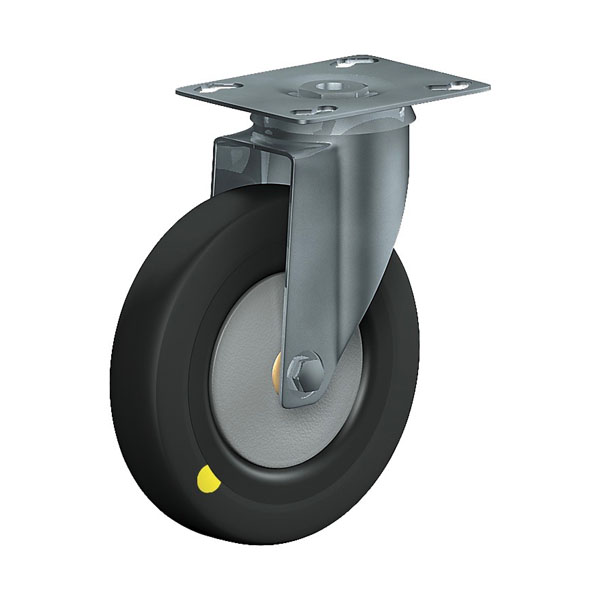

  • Swivel Castor Institutional Series 330P, Wheel EL

    SWIVEL CASTOR

  • Swivel Castor With Total Lock Institutional Series 330P, Wheel EL

    SWIVEL CASTOR WITH TOTAL LOCK

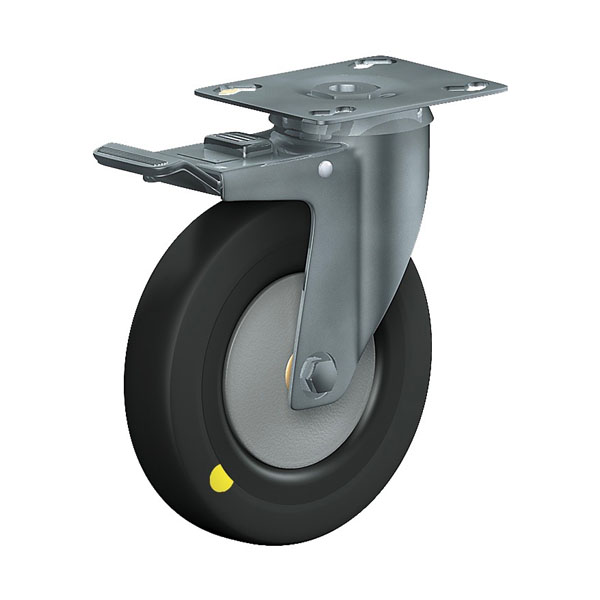

  • With Directional Lock Institutional Series 330P, Wheel EL

    WITH DIRECTIONAL LOCK

Select the required versions in order to show them already filtered in the following table.

Institutional Series 330P, Wheel ELelectrically conductive

PDF product sheet
  • max 110 kg
  • -20 °C - +60 °C
  • 150-150 mm
  • ++
    swivels easily
  • +++
    wear resistant
  • ++
    shock proof
  • +++
    floor protective
  • ++
    weather proof
  • Swivel Castor Institutional Series 330P, Wheel EL

    Swivel Castor

  • Swivel Castor With Total Lock Institutional Series 330P, Wheel EL

    Swivel Castor With Total Lock

  • With Directional Lock Institutional Series 330P, Wheel EL

    With Directional Lock

Select the required versions in order to show them already filtered in the following table.

Description

Advantages

  • electrically conductive
  • silent in motion
  • good running performance
  • resistant to diluted acids

Applications

  • Metal-Technology
  • Kitchen equipment
  • Workshops
  • Laboratory equipment
  • Visual equipment
  • Instrument stands
  • Mobile furniture
  • School furniture
  • Carpentry

Material

Material

rubber tyre, electrically
conductive, volume resistance value <104Ω
nylon rim, conductive, volume resistance value <104Ω

Fork material

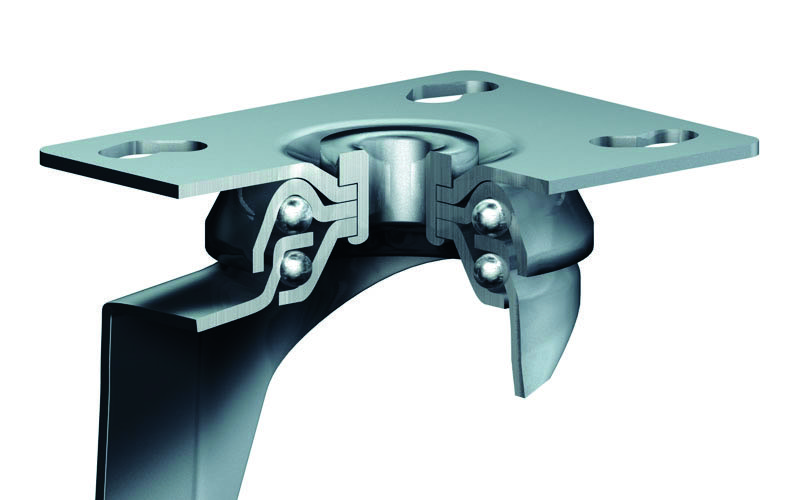

Finish: zinc plated and chromate coated, large double ball bearing – Ø 57 mm, revited, wheel axle bolted and locked, total-/ directional lock – spring stainless steel

Documents/CAD

Cadenas Partcommunity-Portal

For a PDF with the technical description and detailed 3D CAD plans, please select the desired version. You can then download a PDF with the technical description or access detailed 3D CAD plans via our Cadenas Partcommunity portal.

The models have been carefully designed and validated for correctness. However, we take no responsibility for any incorrect or incomplete data.

Select version

Select version

2 of 2 items in this series are displayed.

Article number Articel type Price € QTY

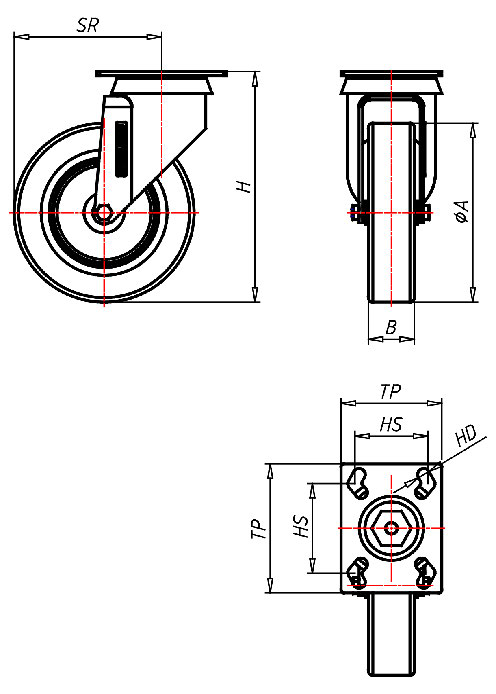

330 PT 150 EL

Institutional Series 330P, Wheel EL

Swivel castor Wheel-∅ x width [mm]: 150x32

Institutional Series 330P, Wheel EL

Technische Daten

  • Tragkraft kg 110
  • Bauhöhe H mm 190
  • Plattengröße TP mm 90x70
  • Lochabstand HS mm 75x45/62x52
  • Loch-Ø HD mm 8,5
  • Störkreisradius SR mm 121
  • Radlagerung Ball bearing

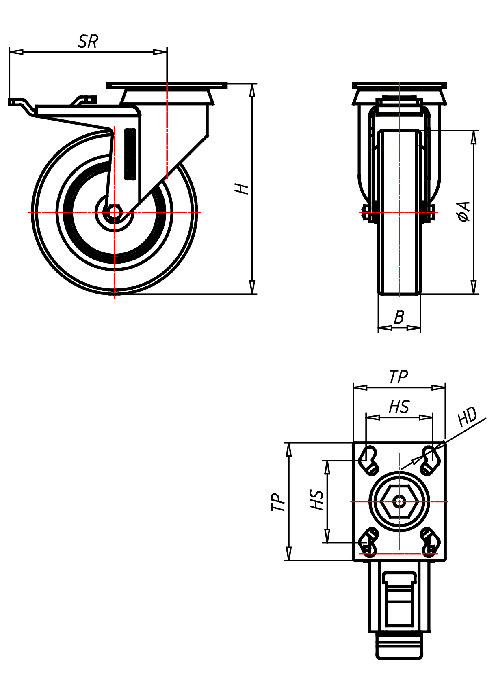

331 PT 150 EL

Institutional Series 330P, Wheel EL

Swivel castor with total lock Wheel-∅ x width [mm]: 150x32

Institutional Series 330P, Wheel EL

Technische Daten

  • Tragkraft kg 110
  • Bauhöhe H mm 190
  • Plattengröße TP mm 90x70
  • Lochabstand HS mm 75x45/62x52
  • Loch-Ø HD mm 8,5
  • Störkreisradius SR mm 121
  • Radlagerung Ball bearing
