Institutional Series 800R, Wheel AEL
  • Swivel Castor Institutional Series 800R, Wheel AEL

    SWIVEL CASTOR

  • Swivel Castor With Total Lock Institutional Series 800R, Wheel AEL

    SWIVEL CASTOR WITH TOTAL LOCK

  • With Directional Lock Institutional Series 800R, Wheel AEL

    WITH DIRECTIONAL LOCK

Select the required versions in order to show them already filtered in the following table.

Institutional Series 800R, Wheel AELelectrically conductive

PDF product sheet
  • max 120 kg
  • -20 °C - +70 °C
  • 100-200 mm
  • ++
    swivels easily
  • ++
    wear resistant
  • ++
    shock proof
  • +++
    floor protective
  • +++
    weather proof
  • Swivel Castor Institutional Series 800R, Wheel AEL

    Swivel Castor

  • Swivel Castor With Total Lock Institutional Series 800R, Wheel AEL

    Swivel Castor With Total Lock

  • With Directional Lock Institutional Series 800R, Wheel AEL

    With Directional Lock

Select the required versions in order to show them already filtered in the following table.

Description

Advantages

  • electrically conductive
  • silent in motion
  • low rolling resistance
  • non-marking
  • high resistance to shocks
  • good chemical resistance

Applications

  • Metal-Technology
  • Kitchen equipment
  • Workshops
  • Mobile furniture
  • Carpentry

Material

Material

coated in polyurethane, 90±3 Shore A elecrically conductive <104Ω
High quality nylon wheel centre

Fork material

Finsh: moulded fiber glass polyamide, grey – RAL 7005, water proof precision ball bearing DIN 625 2RS – doubled sealed, wheel axle bolted, total-/directional lock

Documents/CAD

Cadenas Partcommunity-Portal

For a PDF with the technical description and detailed 3D CAD plans, please select the desired version. You can then download a PDF with the technical description or access detailed 3D CAD plans via our Cadenas Partcommunity portal.

The models have been carefully designed and validated for correctness. However, we take no responsibility for any incorrect or incomplete data.

Select version

Select version

12 of 12 items in this series are displayed.

Article number Articel type Price € QTY
800 RÜ12 102 AELK

Institutional Series 800R, Wheel AEL

Swivel castor Wheel-∅ x width [mm]: 100x32

Technische Daten

  • Tragkraft kg 100
  • Bauhöhe H mm 145
  • Loch-Ø HD mm 12,5
  • Störkreisradius SR mm 94
  • Radlagerung Ball bearing
801 RÜ12 102 AELK

Institutional Series 800R, Wheel AEL

Swivel castor with total lock Wheel-∅ x width [mm]: 100x32

Technische Daten

  • Tragkraft kg 100
  • Bauhöhe H mm 145
  • Loch-Ø HD mm 12,5
  • Störkreisradius SR mm 110
  • Radlagerung Ball bearing
807 RÜ12 102 AELK

Institutional Series 800R, Wheel AEL

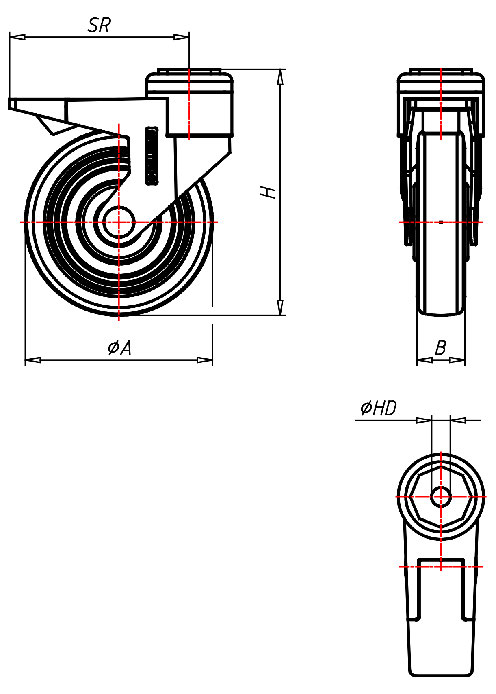

Swivel castor with directional lock Wheel-∅ x width [mm]: 100x32

Technische Daten

  • Tragkraft kg 100
  • Bauhöhe H mm 145
  • Loch-Ø HD mm 12,5
  • Störkreisradius SR mm 110
  • Radlagerung Ball bearing
800 RÜ12 127 AELK

Institutional Series 800R, Wheel AEL

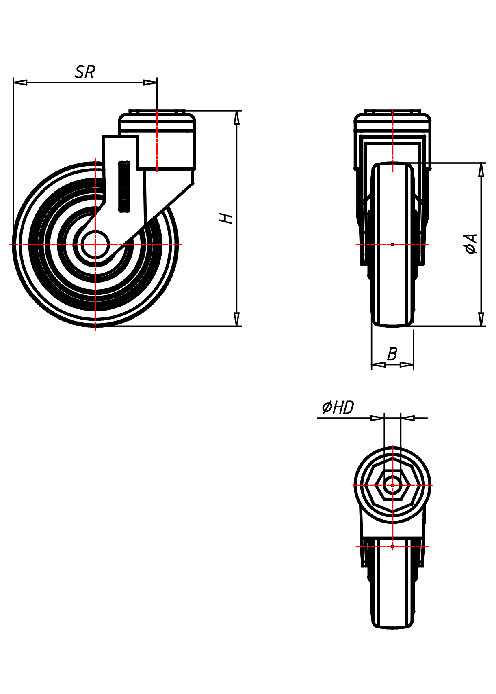

Swivel castor Wheel-∅ x width [mm]: 125x32

Technische Daten

  • Tragkraft kg 100
  • Bauhöhe H mm 165
  • Loch-Ø HD mm 12,5
  • Störkreisradius SR mm 111
  • Radlagerung Ball bearing
801 RÜ12 127 AELK

Institutional Series 800R, Wheel AEL

Swivel castor with total lock Wheel-∅ x width [mm]: 125x32

Technische Daten

  • Tragkraft kg 100
  • Bauhöhe H mm 165
  • Loch-Ø HD mm 12,5
  • Störkreisradius SR mm 120
  • Radlagerung Ball bearing
807 RÜ12 127 AELK

Institutional Series 800R, Wheel AEL

Swivel castor with directional lock Wheel-∅ x width [mm]: 125x32

Technische Daten

  • Tragkraft kg 100
  • Bauhöhe H mm 165
  • Loch-Ø HD mm 12,5
  • Störkreisradius SR mm 120
  • Radlagerung Ball bearing
800 RÜ12 150 AELK

Institutional Series 800R, Wheel AEL

Swivel castor Wheel-∅ x width [mm]: 150x32

Technische Daten

  • Tragkraft kg 120
  • Bauhöhe H mm 195
  • Loch-Ø HD mm 12,5
  • Störkreisradius SR mm 125
  • Radlagerung Ball bearing
801 RÜ12 150 AELK

Institutional Series 800R, Wheel AEL

Swivel castor with total lock Wheel-∅ x width [mm]: 150x32

Technische Daten

  • Tragkraft kg 120
  • Bauhöhe H mm 195
  • Loch-Ø HD mm 12,5
  • Störkreisradius SR mm 134
  • Radlagerung Ball bearing
807 RÜ12 150 AELK

Institutional Series 800R, Wheel AEL

Swivel castor with directional lock Wheel-∅ x width [mm]: 150x32

Technische Daten

  • Tragkraft kg 120
  • Bauhöhe H mm 195
  • Loch-Ø HD mm 12,5
  • Störkreisradius SR mm 134
  • Radlagerung Ball bearing
800 RÜ12 200 AELK

Institutional Series 800R, Wheel AEL

Swivel castor Wheel-∅ x width [mm]: 200x32

Technische Daten

  • Tragkraft kg 120
  • Bauhöhe H mm 251
  • Loch-Ø HD mm 12,5
  • Störkreisradius SR mm 168
  • Radlagerung Ball bearing
801 RÜ12 200 AELK

Institutional Series 800R, Wheel AEL

Swivel castor with total lock Wheel-∅ x width [mm]: 200x32

Technische Daten

  • Tragkraft kg 120
  • Bauhöhe H mm 251
  • Loch-Ø HD mm 12,5
  • Störkreisradius SR mm 168
  • Radlagerung Ball bearing
807 RÜ12 200 AELK

Institutional Series 800R, Wheel AEL

Swivel castor with directional lock Wheel-∅ x width [mm]: 200x32

Technische Daten

  • Tragkraft kg 120
  • Bauhöhe H mm 251
  • Loch-Ø HD mm 12,5
  • Störkreisradius SR mm 168
  • Radlagerung Ball bearing
