Heavy Duty Series GT, Wheel CI

 PDF product sheet

max 1270 kg
-30 °C - +80 °C
100-250 mm

++

swivels easily
+++

wear resistant
+++

shock proof
+

floor protective
+++

weather proof

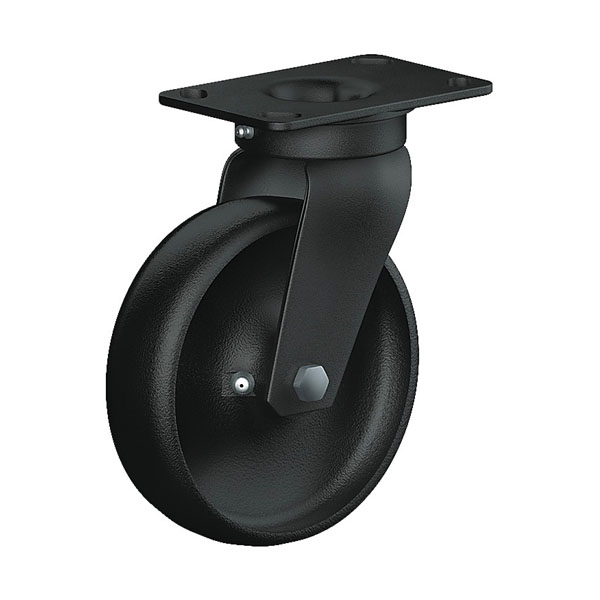

Swivel Castor

Show dimensions

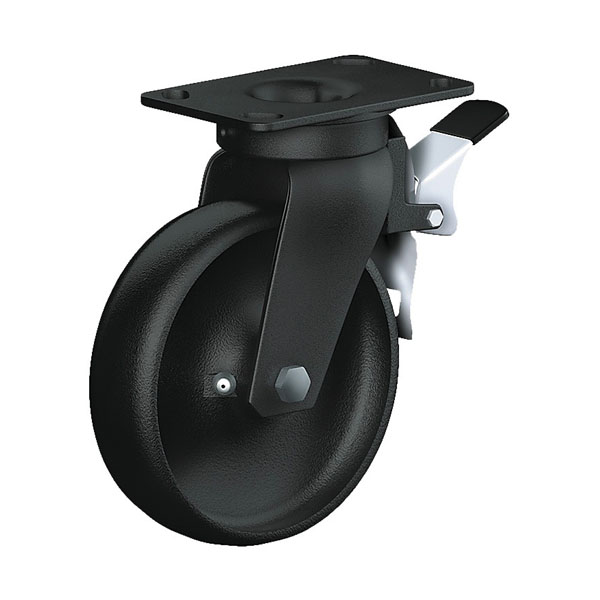

Wheel Brake

Show dimensions

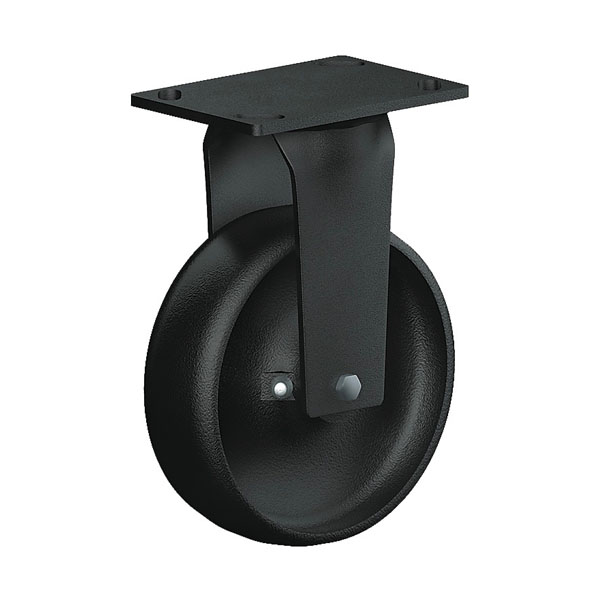

Fixed Castor

Show dimensions

Select the required versions in order to show them already filtered in the following table.

Advantages

easy running on smooth floors
very high load capacity
excellent abrasion resistance
with plain or ball bearing for high temperatures

Applications

Heavy duty dollies
Machinery moving dollies
Scaffolds

Material

Casted iron wheel, painted, round machined tread, Wheel-Ø 50 and 63 made of Zamac

Fork material

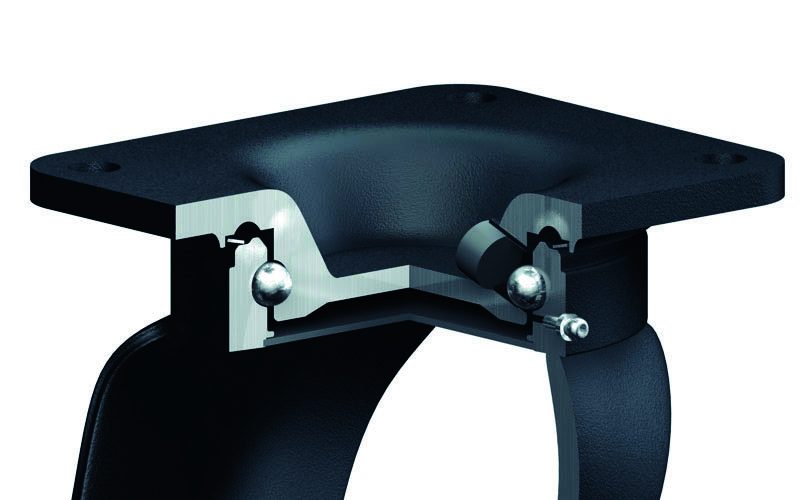

Non-Kingpin swivel head with hardened steel raceways and hardened steel balls, forged and tempered, fitted with grease nipple, wheel axle bolted and locked

Cadenas Partcommunity-Portal

For a PDF with the technical description and detailed 3D CAD plans, please select the desired version. You can then download a PDF with the technical description or access detailed 3D CAD plans via our Cadenas Partcommunity portal.

The models have been carefully designed and validated for correctness. However, we take no responsibility for any incorrect or incomplete data.

Select version

24 of 24 items in this series are displayed.

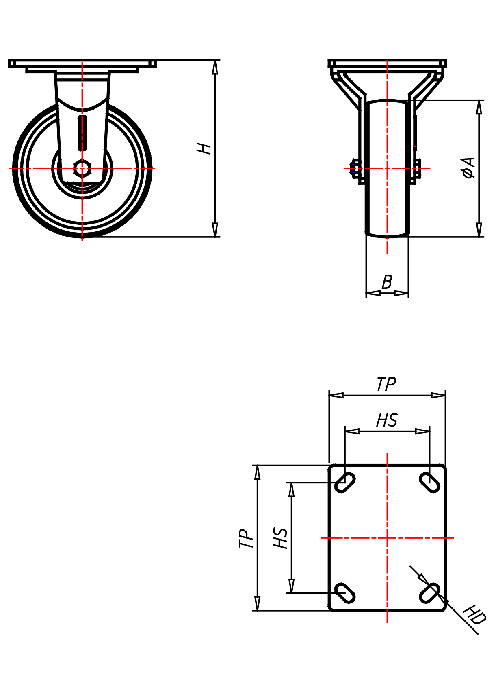

Article number	Articel type	Wheel-Ø A x width B mm	Load Capacity kg	Overall height H mm	Dimension of top plate TP mm	Hole spacing HS mm	Hole-Ø HD mm	Swivel radius SR mm
GT 100 QK	Swivel castor	100x32	450	140	138x110	105x80	10	103
Heavy Duty Series GT, Wheel CI Swivel castor Wheel-∅ x width [mm]: 100x32 Technische Daten Tragkraft kg 450 Bauhöhe H mm 140 Plattengröße TP mm 138x110 Lochabstand HS mm 105x80 Loch-Ø HD mm 10 Störkreisradius SR mm 103 Radlagerung Ball bearing PDF Data sheet 3D model (Cardenas Customer portal)
GTF 100 QK	Fixed castor	100x32	450	140	138x110	105x80	10
Heavy Duty Series GT, Wheel CI Fixed castor Wheel-∅ x width [mm]: 100x32 Technische Daten Tragkraft kg 450 Bauhöhe H mm 140 Plattengröße TP mm 138x110 Lochabstand HS mm 105x80 Loch-Ø HD mm 10 Radlagerung Ball bearing PDF Data sheet 3D model (Cardenas Customer portal)
GT 100 CIB	Swivel castor	100x38	450	140	138x110	105x80	10	104
Heavy Duty Series GT, Wheel CI Swivel castor Wheel-∅ x width [mm]: 100x38 Technische Daten Tragkraft kg 450 Bauhöhe H mm 140 Plattengröße TP mm 138x110 Lochabstand HS mm 105x80 Loch-Ø HD mm 10 Störkreisradius SR mm 104 Radlagerung Roller bearing PDF Data sheet 3D model (Cardenas Customer portal)
GTF 100 CIB	Fixed castor	100x38	450	140	138x110	105x80	10
Heavy Duty Series GT, Wheel CI Fixed castor Wheel-∅ x width [mm]: 100x38 Technische Daten Tragkraft kg 450 Bauhöhe H mm 140 Plattengröße TP mm 138x110 Lochabstand HS mm 105x80 Loch-Ø HD mm 10 Radlagerung Roller bearing PDF Data sheet 3D model (Cardenas Customer portal)
GT 100 CI	Swivel castor	100x38	450	140	138x110	105x80	10	104
Heavy Duty Series GT, Wheel CI Swivel castor Wheel-∅ x width [mm]: 100x38 Technische Daten Tragkraft kg 450 Bauhöhe H mm 140 Plattengröße TP mm 138x110 Lochabstand HS mm 105x80 Loch-Ø HD mm 10 Störkreisradius SR mm 104 Radlagerung Plain bearing PDF Data sheet 3D model (Cardenas Customer portal)
GTF 100 CI	Fixed castor	100x38	450	140	138x110	105x80	10
Heavy Duty Series GT, Wheel CI Fixed castor Wheel-∅ x width [mm]: 100x38 Technische Daten Tragkraft kg 450 Bauhöhe H mm 140 Plattengröße TP mm 138x110 Lochabstand HS mm 105x80 Loch-Ø HD mm 10 Radlagerung Plain bearing PDF Data sheet 3D model (Cardenas Customer portal)
GT 125 CIK	Swivel castor	125x41	600	165	138x110	105x80	10	116
Heavy Duty Series GT, Wheel CI Swivel castor Wheel-∅ x width [mm]: 125x41 Technische Daten Tragkraft kg 600 Bauhöhe H mm 165 Plattengröße TP mm 138x110 Lochabstand HS mm 105x80 Loch-Ø HD mm 10 Störkreisradius SR mm 116 Radlagerung Ball bearing PDF Data sheet 3D model (Cardenas Customer portal)
GTF 125 CIK	Fixed castor	125x41	600	165	138x110	105x80	10
Heavy Duty Series GT, Wheel CI Fixed castor Wheel-∅ x width [mm]: 125x41 Technische Daten Tragkraft kg 600 Bauhöhe H mm 165 Plattengröße TP mm 138x110 Lochabstand HS mm 105x80 Loch-Ø HD mm 10 Radlagerung Ball bearing PDF Data sheet 3D model (Cardenas Customer portal)
GT 125 CI	Swivel castor	125x41	600	165	138x110	105x80	10	116
Heavy Duty Series GT, Wheel CI Swivel castor Wheel-∅ x width [mm]: 125x41 Technische Daten Tragkraft kg 600 Bauhöhe H mm 165 Plattengröße TP mm 138x110 Lochabstand HS mm 105x80 Loch-Ø HD mm 10 Störkreisradius SR mm 116 Radlagerung Plain bearing PDF Data sheet 3D model (Cardenas Customer portal)
GTF 125 CI	Fixed castor	125x41	600	165	138x110	105x80	10
Heavy Duty Series GT, Wheel CI Fixed castor Wheel-∅ x width [mm]: 125x41 Technische Daten Tragkraft kg 600 Bauhöhe H mm 165 Plattengröße TP mm 138x110 Lochabstand HS mm 105x80 Loch-Ø HD mm 10 Radlagerung Plain bearing PDF Data sheet 3D model (Cardenas Customer portal)
GT 130 QK	Swivel castor	130x40	600	168	138x110	105x80	10	119
Heavy Duty Series GT, Wheel CI Swivel castor Wheel-∅ x width [mm]: 130x40 Technische Daten Tragkraft kg 600 Bauhöhe H mm 168 Plattengröße TP mm 138x110 Lochabstand HS mm 105x80 Loch-Ø HD mm 10 Störkreisradius SR mm 119 Radlagerung Ball bearing PDF Data sheet 3D model (Cardenas Customer portal)
GTF 130 QK	Fixed castor	130x40	600	168	138x110	105x80	10
Heavy Duty Series GT, Wheel CI Fixed castor Wheel-∅ x width [mm]: 130x40 Technische Daten Tragkraft kg 600 Bauhöhe H mm 168 Plattengröße TP mm 138x110 Lochabstand HS mm 105x80 Loch-Ø HD mm 10 Radlagerung Ball bearing PDF Data sheet 3D model (Cardenas Customer portal)

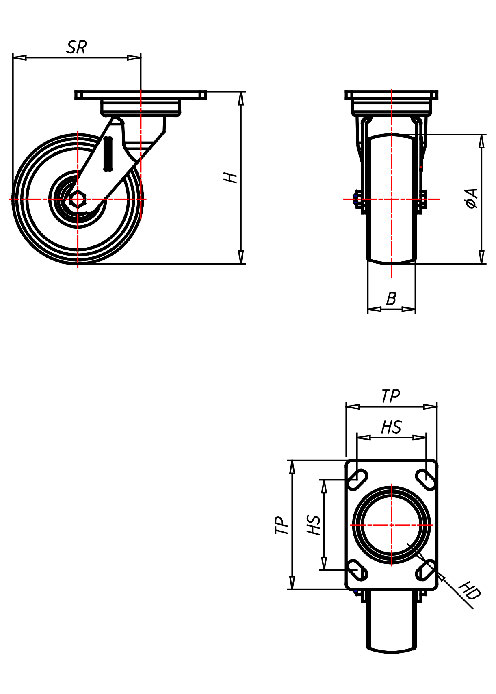

GT 151 QK	Swivel castor	150x55	1100	200	150x105	105x80	13	151
Heavy Duty Series GT, Wheel CI Swivel castor Wheel-∅ x width [mm]: 150x55 Technische Daten Tragkraft kg 1100 Bauhöhe H mm 200 Plattengröße TP mm 150x105 Lochabstand HS mm 105x80 Loch-Ø HD mm 13 Störkreisradius SR mm 151 Radlagerung Ball bearing PDF Data sheet 3D model (Cardenas Customer portal)
GTF 151 QK	Fixed castor	150x55	1100	200	150x105	105x80	13
Heavy Duty Series GT, Wheel CI Fixed castor Wheel-∅ x width [mm]: 150x55 Technische Daten Tragkraft kg 1100 Bauhöhe H mm 200 Plattengröße TP mm 150x105 Lochabstand HS mm 105x80 Loch-Ø HD mm 13 Radlagerung Ball bearing PDF Data sheet 3D model (Cardenas Customer portal)
GT 150 CIB	Swivel castor	150x45	1100	200	150x105	105x80	13	150
Heavy Duty Series GT, Wheel CI Swivel castor Wheel-∅ x width [mm]: 150x45 Technische Daten Tragkraft kg 1100 Bauhöhe H mm 200 Plattengröße TP mm 150x105 Lochabstand HS mm 105x80 Loch-Ø HD mm 13 Störkreisradius SR mm 150 Radlagerung Roller bearing PDF Data sheet 3D model (Cardenas Customer portal)
GTF 150 CIB	Fixed castor	150x45	1100	200	150x105	105x80	13
Heavy Duty Series GT, Wheel CI Fixed castor Wheel-∅ x width [mm]: 150x45 Technische Daten Tragkraft kg 1100 Bauhöhe H mm 200 Plattengröße TP mm 150x105 Lochabstand HS mm 105x80 Loch-Ø HD mm 13 Radlagerung Roller bearing PDF Data sheet 3D model (Cardenas Customer portal)
GT 150 CI	Swivel castor	150x45	1100	200	150x105	105x80	13	150
Heavy Duty Series GT, Wheel CI Swivel castor Wheel-∅ x width [mm]: 150x45 Technische Daten Tragkraft kg 1100 Bauhöhe H mm 200 Plattengröße TP mm 150x105 Lochabstand HS mm 105x80 Loch-Ø HD mm 13 Störkreisradius SR mm 150 Radlagerung Plain bearing PDF Data sheet 3D model (Cardenas Customer portal)
GTF 150 CI	Fixed castor	150x45	1100	200	150x105	105x80	13
Heavy Duty Series GT, Wheel CI Fixed castor Wheel-∅ x width [mm]: 150x45 Technische Daten Tragkraft kg 1100 Bauhöhe H mm 200 Plattengröße TP mm 150x105 Lochabstand HS mm 105x80 Loch-Ø HD mm 13 Radlagerung Plain bearing PDF Data sheet 3D model (Cardenas Customer portal)
GT 200 QK	Swivel castor	200x50	1200	250	150x105	105x80	13	187
Heavy Duty Series GT, Wheel CI Swivel castor Wheel-∅ x width [mm]: 200x50 Technische Daten Tragkraft kg 1200 Bauhöhe H mm 250 Plattengröße TP mm 150x105 Lochabstand HS mm 105x80 Loch-Ø HD mm 13 Störkreisradius SR mm 187 Radlagerung Ball bearing PDF Data sheet 3D model (Cardenas Customer portal)
GTF 200 QK	Fixed castor	200x50	1200	250	150x105	105x80	13
Heavy Duty Series GT, Wheel CI Fixed castor Wheel-∅ x width [mm]: 200x50 Technische Daten Tragkraft kg 1200 Bauhöhe H mm 250 Plattengröße TP mm 150x105 Lochabstand HS mm 105x80 Loch-Ø HD mm 13 Radlagerung Ball bearing PDF Data sheet 3D model (Cardenas Customer portal)
GT 200 CI	Swivel castor	200x45	1200	250	150x105	105x80	13	186
Heavy Duty Series GT, Wheel CI Swivel castor Wheel-∅ x width [mm]: 200x45 Technische Daten Tragkraft kg 1200 Bauhöhe H mm 250 Plattengröße TP mm 150x105 Lochabstand HS mm 105x80 Loch-Ø HD mm 13 Störkreisradius SR mm 186 Radlagerung Plain bearing PDF Data sheet 3D model (Cardenas Customer portal)
GTF 200 CI	Fixed castor	200x45	1200	250	150x105	105x80	13
Heavy Duty Series GT, Wheel CI Fixed castor Wheel-∅ x width [mm]: 200x45 Technische Daten Tragkraft kg 1200 Bauhöhe H mm 250 Plattengröße TP mm 150x105 Lochabstand HS mm 105x80 Loch-Ø HD mm 13 Radlagerung Plain bearing PDF Data sheet 3D model (Cardenas Customer portal)
GT 250 CIB	Swivel castor	250x51	1270	300	150x105	105x80	13	190
Heavy Duty Series GT, Wheel CI Swivel castor Wheel-∅ x width [mm]: 250x51 Technische Daten Tragkraft kg 1270 Bauhöhe H mm 300 Plattengröße TP mm 150x105 Lochabstand HS mm 105x80 Loch-Ø HD mm 13 Störkreisradius SR mm 190 Radlagerung Roller bearing PDF Data sheet 3D model (Cardenas Customer portal)
GTF 250 CIB	Fixed castor	250x51	1270	300	150x105	105x80	13
Heavy Duty Series GT, Wheel CI Fixed castor Wheel-∅ x width [mm]: 250x51 Technische Daten Tragkraft kg 1270 Bauhöhe H mm 300 Plattengröße TP mm 150x105 Lochabstand HS mm 105x80 Loch-Ø HD mm 13 Radlagerung Roller bearing PDF Data sheet 3D model (Cardenas Customer portal)
