Institutional Series 315R, Wheel EL

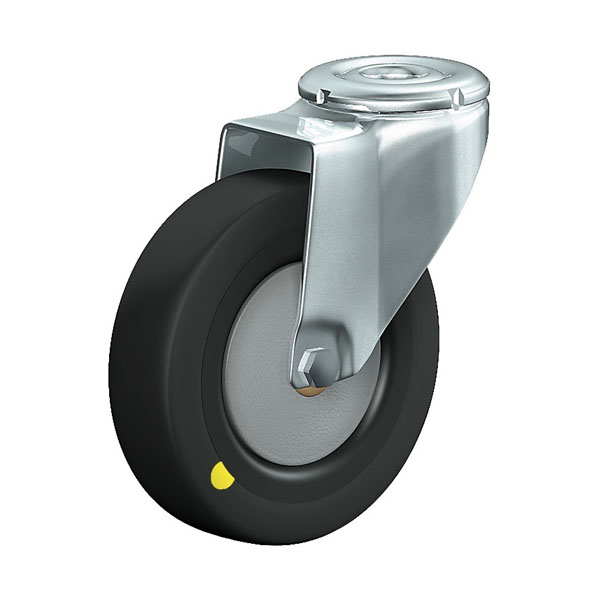

  • Swivel Castor Institutional Series 315R, Wheel EL

    SWIVEL CASTOR

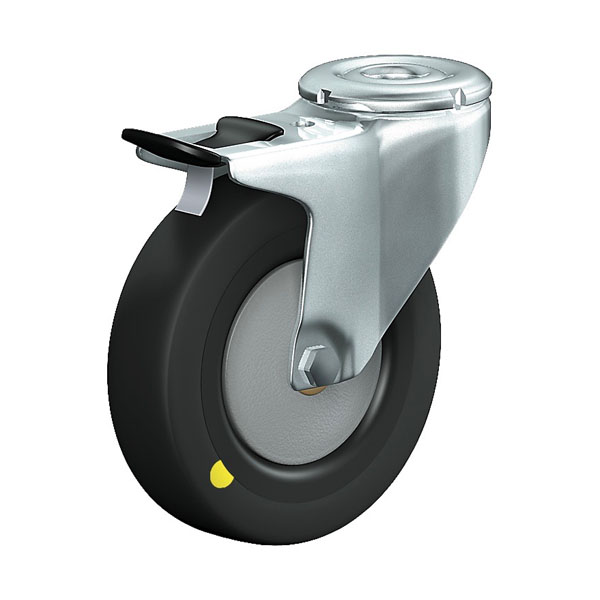

  • Swivel Castor With Total Lock Institutional Series 315R, Wheel EL

    SWIVEL CASTOR WITH TOTAL LOCK

Select the required versions in order to show them already filtered in the following table.

Institutional Series 315R, Wheel ELelectrically conductive

PDF product sheet
  • max 70 kg
  • -20 °C - +60 °C
  • 50-100 mm
  • ++
    swivels easily
  • ++
    wear resistant
  • +
    shock proof
  • ++
    floor protective
  • ++
    weather proof
  • Swivel Castor Institutional Series 315R, Wheel EL

    Swivel Castor

  • Swivel Castor With Total Lock Institutional Series 315R, Wheel EL

    Swivel Castor With Total Lock

Select the required versions in order to show them already filtered in the following table.

Description

Advantages

  • electrically conductive
  • silent in motion
  • good running performance
  • resistant to diluted acids

Applications

  • Portable bar units
  • Metal-Technology
  • Workshops
  • Book carts
  • Sidetables
  • Laboratory equipment
  • Instrument stands
  • School furniture
  • Bedside carts
  • Carpentry
  • Health-Professionals

Material

Material

rubber tyre, electrically
conductive, volume resistance value <104Ω
nylon rim, conductive, volume resistance value <104Ω

Fork material

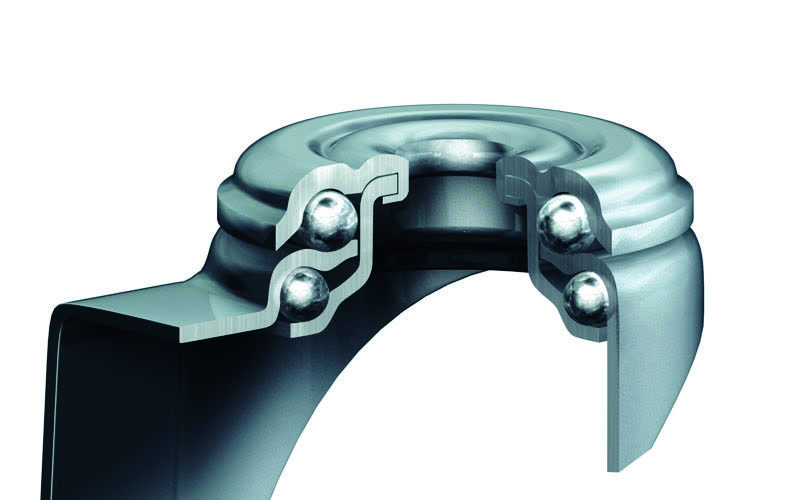

Finish: zinc plated and chromate coated, large double ball bearing – Ø 46 mm, revited,
dust protection ring, wheel axle bolted and locked, wheel-/ total lock – spring stainless steel

Documents/CAD

Cadenas Partcommunity-Portal

For a PDF with the technical description and detailed 3D CAD plans, please select the desired version. You can then download a PDF with the technical description or access detailed 3D CAD plans via our Cadenas Partcommunity portal.

The models have been carefully designed and validated for correctness. However, we take no responsibility for any incorrect or incomplete data.

Select version

Select version

12 of 12 items in this series are displayed.

Article number Articel type Price € QTY
315 RÜ10 50 EL

Institutional Series 315R, Wheel EL

Swivel castor Wheel-∅ x width [mm]: 50x18

Technische Daten

  • Tragkraft kg 40
  • Bauhöhe H mm 70
  • Loch-Ø HD mm 10,5
  • Störkreisradius SR mm 51
  • Radlagerung Ball bearing
316 RÜ10 50 EL

Institutional Series 315R, Wheel EL

Swivel castor with total lock Wheel-∅ x width [mm]: 50x18

Technische Daten

  • Tragkraft kg 40
  • Bauhöhe H mm 70
  • Loch-Ø HD mm 10,5
  • Störkreisradius SR mm 73
  • Radlagerung Ball bearing
315 RÜ12 50 EL

Institutional Series 315R, Wheel EL

Swivel castor Wheel-∅ x width [mm]: 50x18

Technische Daten

  • Tragkraft kg 40
  • Bauhöhe H mm 70
  • Loch-Ø HD mm 12,5
  • Störkreisradius SR mm 51
  • Radlagerung Ball bearing
316 RÜ12 50 EL

Institutional Series 315R, Wheel EL

Swivel castor with total lock Wheel-∅ x width [mm]: 50x18

Technische Daten

  • Tragkraft kg 40
  • Bauhöhe H mm 70
  • Loch-Ø HD mm 12,5
  • Störkreisradius SR mm 73
  • Radlagerung Ball bearing
315 RÜ10 75 EL

Institutional Series 315R, Wheel EL

Swivel castor Wheel-∅ x width [mm]: 75x25

Technische Daten

  • Tragkraft kg 60
  • Bauhöhe H mm 97
  • Loch-Ø HD mm 10,5
  • Störkreisradius SR mm 68
  • Radlagerung Ball bearing
316 RÜ10 75 EL

Institutional Series 315R, Wheel EL

Swivel castor with total lock Wheel-∅ x width [mm]: 75x25

Technische Daten

  • Tragkraft kg 60
  • Bauhöhe H mm 97
  • Loch-Ø HD mm 10,5
  • Störkreisradius SR mm 83
  • Radlagerung Ball bearing
315 RÜ12 75 EL

Institutional Series 315R, Wheel EL

Swivel castor Wheel-∅ x width [mm]: 75x25

Technische Daten

  • Tragkraft kg 60
  • Bauhöhe H mm 97
  • Loch-Ø HD mm 12,5
  • Störkreisradius SR mm 68
  • Radlagerung Ball bearing
316 RÜ12 75 EL

Institutional Series 315R, Wheel EL

Swivel castor with total lock Wheel-∅ x width [mm]: 75x25

Technische Daten

  • Tragkraft kg 60
  • Bauhöhe H mm 97
  • Loch-Ø HD mm 12,5
  • Störkreisradius SR mm 83
  • Radlagerung Ball bearing
315 RÜ10 100 EL

Institutional Series 315R, Wheel EL

Swivel castor Wheel-∅ x width [mm]: 100x24

Technische Daten

  • Tragkraft kg 70
  • Bauhöhe H mm 121
  • Loch-Ø HD mm 10,5
  • Störkreisradius SR mm 85
  • Radlagerung Ball bearing
316 RÜ10 100 EL

Institutional Series 315R, Wheel EL

Swivel castor with total lock Wheel-∅ x width [mm]: 100x24

Technische Daten

  • Tragkraft kg 70
  • Bauhöhe H mm 121
  • Loch-Ø HD mm 10,5
  • Störkreisradius SR mm 96
  • Radlagerung Ball bearing
315 RÜ12 100 EL

Institutional Series 315R, Wheel EL

Swivel castor Wheel-∅ x width [mm]: 100x24

Technische Daten

  • Tragkraft kg 70
  • Bauhöhe H mm 121
  • Loch-Ø HD mm 12,5
  • Störkreisradius SR mm 85
  • Radlagerung Ball bearing
316 RÜ12 100 EL

Institutional Series 315R, Wheel EL

Swivel castor with total lock Wheel-∅ x width [mm]: 100x24

Technische Daten

  • Tragkraft kg 70
  • Bauhöhe H mm 121
  • Loch-Ø HD mm 12,5
  • Störkreisradius SR mm 96
  • Radlagerung Ball bearing

Suitable accessories
