Institutional Series 315R, Wheel P

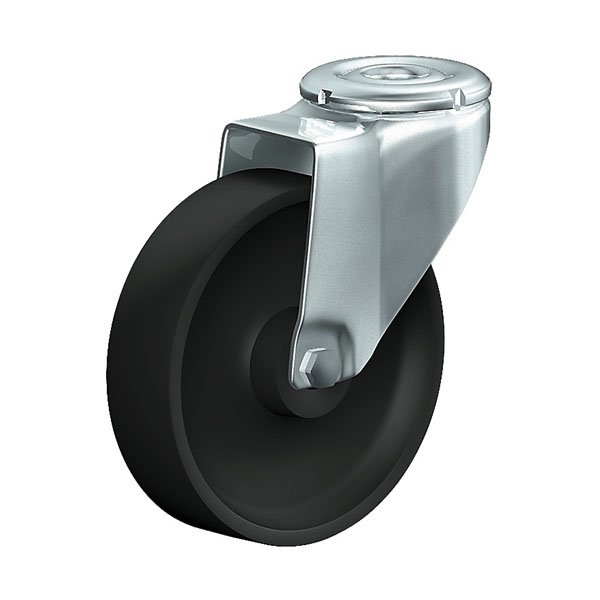

  • Swivel Castor Institutional Series 315R, Wheel P

    SWIVEL CASTOR

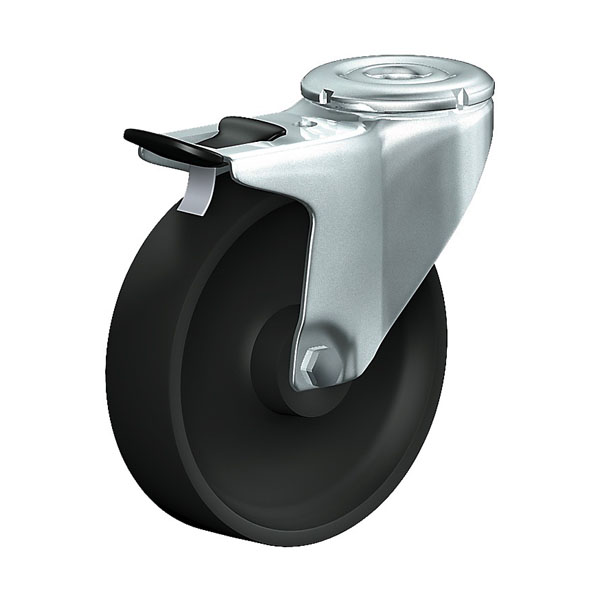

  • Swivel Castor With Total Lock Institutional Series 315R, Wheel P

    SWIVEL CASTOR WITH TOTAL LOCK

Select the required versions in order to show them already filtered in the following table.

Institutional Series 315R, Wheel P

PDF product sheet
  • max 80 kg
  • -30 °C - +70 °C
  • 50-100 mm
  • ++
    swivels easily
  • +++
    wear resistant
  • +
    shock proof
  • ++
    floor protective
  • ++
    weather proof
  • Swivel Castor Institutional Series 315R, Wheel P

    Swivel Castor

  • Swivel Castor With Total Lock Institutional Series 315R, Wheel P

    Swivel Castor With Total Lock

Select the required versions in order to show them already filtered in the following table.

Description

Advantages

  • easy running on smooth floors
  • impact proof
  • high abrasion resistance
  • easy to clean
  • high chemical resistance

Applications

  • Metal-Technology
  • Workshops
  • Book carts
  • Sidetables
  • Carpentry

Material

Material

Casted high quality nylon wheel

Fork material

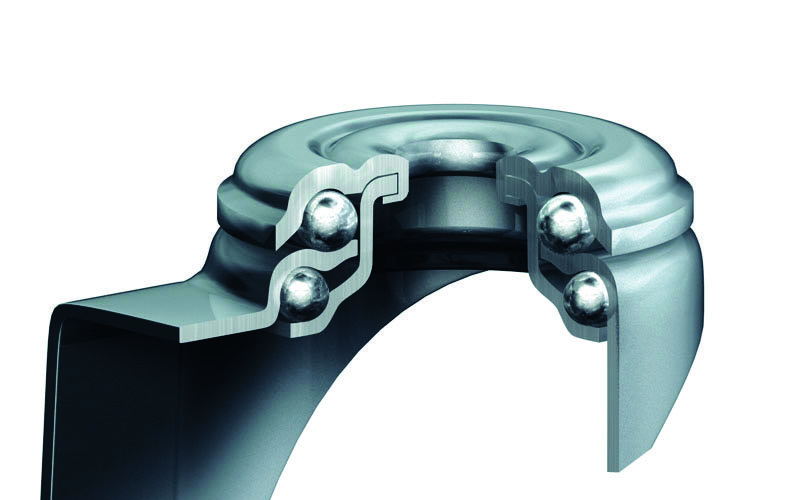

Finish: zinc plated and chromate coated, large double ball bearing – Ø 46 mm, revited,
dust protection ring, wheel axle bolted and locked, wheel-/ total lock – spring stainless steel

Documents/CAD

Cadenas Partcommunity-Portal

For a PDF with the technical description and detailed 3D CAD plans, please select the desired version. You can then download a PDF with the technical description or access detailed 3D CAD plans via our Cadenas Partcommunity portal.

The models have been carefully designed and validated for correctness. However, we take no responsibility for any incorrect or incomplete data.

Select version

Select version

12 of 12 items in this series are displayed.

Article number Articel type Price € QTY
315 RÜ10 50 P

Institutional Series 315R, Wheel P

Swivel castor Wheel-∅ x width [mm]: 50x18

Technische Daten

  • Tragkraft kg 50
  • Bauhöhe H mm 70
  • Loch-Ø HD mm 10,5
  • Störkreisradius SR mm 51
  • Radlagerung Nylon plain bearing
316 RÜ10 50 P

Institutional Series 315R, Wheel P

Swivel castor with total lock Wheel-∅ x width [mm]: 50x18

Technische Daten

  • Tragkraft kg 50
  • Bauhöhe H mm 70
  • Loch-Ø HD mm 10,5
  • Störkreisradius SR mm 73
  • Radlagerung Nylon plain bearing
315 RÜ12 50 P

Institutional Series 315R, Wheel P

Swivel castor Wheel-∅ x width [mm]: 50x18

Technische Daten

  • Tragkraft kg 50
  • Bauhöhe H mm 70
  • Loch-Ø HD mm 12,5
  • Störkreisradius SR mm 51
  • Radlagerung Nylon plain bearing
316 RÜ12 50 P

Institutional Series 315R, Wheel P

Swivel castor with total lock Wheel-∅ x width [mm]: 50x18

Technische Daten

  • Tragkraft kg 50
  • Bauhöhe H mm 70
  • Loch-Ø HD mm 12,5
  • Störkreisradius SR mm 73
  • Radlagerung Nylon plain bearing
315 RÜ10 75 P

Institutional Series 315R, Wheel P

Swivel castor Wheel-∅ x width [mm]: 75x25

Technische Daten

  • Tragkraft kg 70
  • Bauhöhe H mm 97
  • Loch-Ø HD mm 10,5
  • Störkreisradius SR mm 68
  • Radlagerung Nylon plain bearing
316 RÜ10 75 P

Institutional Series 315R, Wheel P

Swivel castor with total lock Wheel-∅ x width [mm]: 75x25

Technische Daten

  • Tragkraft kg 70
  • Bauhöhe H mm 97
  • Loch-Ø HD mm 10,5
  • Störkreisradius SR mm 83
  • Radlagerung Nylon plain bearing
315 RÜ12 75 P

Institutional Series 315R, Wheel P

Swivel castor Wheel-∅ x width [mm]: 75x25

Technische Daten

  • Tragkraft kg 70
  • Bauhöhe H mm 97
  • Loch-Ø HD mm 12,5
  • Störkreisradius SR mm 68
  • Radlagerung Nylon plain bearing
316 RÜ12 75 P

Institutional Series 315R, Wheel P

Swivel castor with total lock Wheel-∅ x width [mm]: 75x25

Technische Daten

  • Tragkraft kg 70
  • Bauhöhe H mm 97
  • Loch-Ø HD mm 12,5
  • Störkreisradius SR mm 83
  • Radlagerung Nylon plain bearing
315 RÜ10 100 P

Institutional Series 315R, Wheel P

Swivel castor Wheel-∅ x width [mm]: 100x24

Technische Daten

  • Tragkraft kg 80
  • Bauhöhe H mm 121
  • Loch-Ø HD mm 10,5
  • Störkreisradius SR mm 85
  • Radlagerung Nylon plain bearing
316 RÜ10 100 P

Institutional Series 315R, Wheel P

Swivel castor with total lock Wheel-∅ x width [mm]: 100x24

Technische Daten

  • Tragkraft kg 80
  • Bauhöhe H mm 121
  • Loch-Ø HD mm 10,5
  • Störkreisradius SR mm 96
  • Radlagerung Nylon plain bearing
315 RÜ12 100 P

Institutional Series 315R, Wheel P

Swivel castor Wheel-∅ x width [mm]: 100x24

Technische Daten

  • Tragkraft kg 80
  • Bauhöhe H mm 121
  • Loch-Ø HD mm 12,5
  • Störkreisradius SR mm 85
  • Radlagerung Nylon plain bearing
316 RÜ12 100 P

Institutional Series 315R, Wheel P

Swivel castor with total lock Wheel-∅ x width [mm]: 100x24

Technische Daten

  • Tragkraft kg 80
  • Bauhöhe H mm 121
  • Loch-Ø HD mm 12,5
  • Störkreisradius SR mm 96
  • Radlagerung Nylon plain bearing
