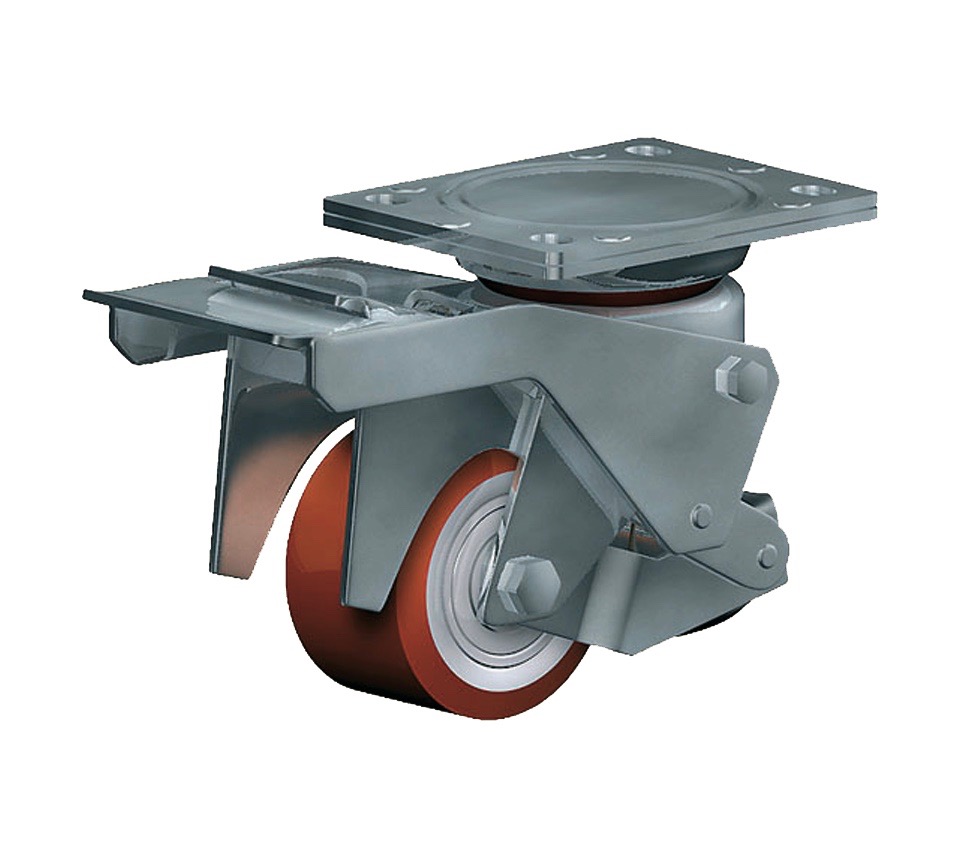

Levelling Castor Series HR, Wheel Z
  •  Levelling Castor Series HR, Wheel Z

Select the required versions in order to show them already filtered in the following table.

Levelling Castor Series HR, Wheel Z

PDF product sheet
  • max 450 kg
  • -30 °C - +80 °C
  • 75-125 mm
  • +++
    swivels easily
  • +++
    wear resistant
  • +++
    shock proof
  • ++
    floor protective
  • ++
    weather proof
  •  Levelling Castor Series HR, Wheel Z

Select the required versions in order to show them already filtered in the following table.

Description

Floor condition

  • PVC Boden

    PVC/Concrete

  • Fliesenboden

    Tiles

  • Asphaltboden

    Asphalt

  • Parkettboden

    Parquet flooring

  • Hindernisse am Boden

    Obstacles

Advantages

  • THE LEVELLING CASTOR WITH INTEGRATED, ADJUSTABLE MOUNT PROVIDES PERFECT STABILITY. In the position ,levelling’, the housing is free of load and can be turned. The force necessary to service the leavers doesn’t depend on the weight of the load.
  • silent in motion
  • low rolling resistance
  • high abrasion and tear resistance
  • high resistance to shocks
  • high chemical resistance

Applications

  • Decoration carts
  • Stage equipment

Material

Material

Cast polyurethane coating, 95±3 Shore A

Steel wheel centre

Fork material

Finish: reinforced pressed steel housing zinc plated, hardened double ball bearing, sealed, grease nipple, levelling foot reinforced black nylon with NBR-rubber pad

Documents/CAD

Cadenas Partcommunity-Portal

For a PDF with the technical description and detailed 3D CAD plans, please select the desired version. You can then download a PDF with the technical description or access detailed 3D CAD plans via our Cadenas Partcommunity portal.

The models have been carefully designed and validated for correctness. However, we take no responsibility for any incorrect or incomplete data.

Select version

Select version

3 of 3 items in this series are displayed.

Article number Articel type Price € QTY
HR 75 ZK

Levelling Castor Series HR, Wheel Z

Swivel castor Wheel-∅ x width [mm]: 75x40

Levelling Castor Series HR, Wheel Z

Technische Daten

  • Tragkraft kg 300
  • Bauhöhe H mm 115-123
  • Plattengröße TP mm 105x85
  • Lochabstand HS mm 80x60
  • Loch-Ø HD mm 9
  • Störkreisradius SR mm 189
  • Radlagerung Ball bearing

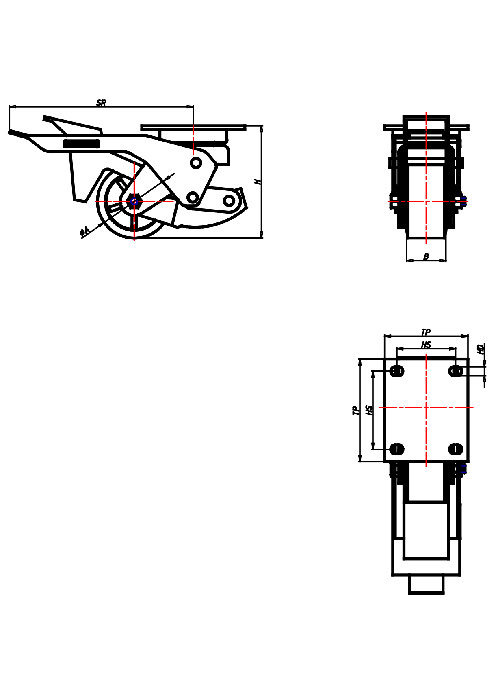

HR 80 ZK

Levelling Castor Series HR, Wheel Z

Swivel castor Wheel-∅ x width [mm]: 80x25

Levelling Castor Series HR, Wheel Z

Technische Daten

  • Tragkraft kg 150
  • Bauhöhe H mm 117-123
  • Plattengröße TP mm 105x85
  • Lochabstand HS mm 80x60
  • Loch-Ø HD mm 9
  • Störkreisradius SR mm 190
  • Radlagerung Ball bearing
HR 125 ZK

Levelling Castor Series HR, Wheel Z

Swivel castor Wheel-∅ x width [mm]: 125x45

Levelling Castor Series HR, Wheel Z

Technische Daten

  • Tragkraft kg 450
  • Bauhöhe H mm 171-181
  • Plattengröße TP mm 135x110
  • Lochabstand HS mm 105x80
  • Loch-Ø HD mm 13
  • Störkreisradius SR mm 254
  • Radlagerung Ball bearing
