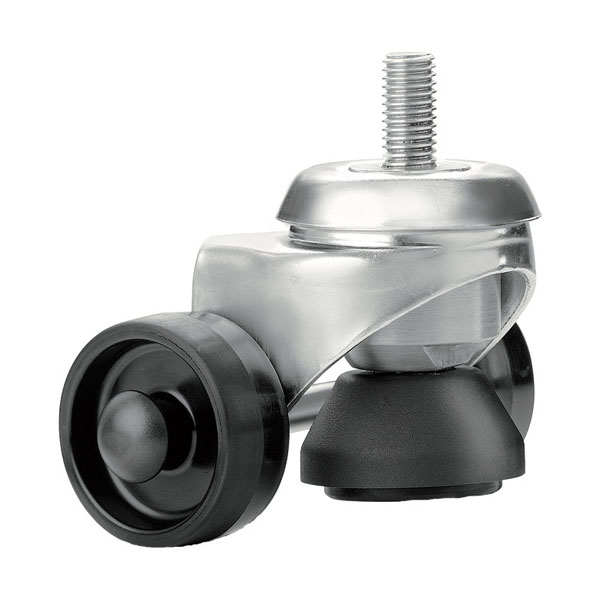

Casted high quality nylon wheel
Steel housing - zinc plated
double ball race,
levelling foot reinforced nylon with
NBR rubber pad, Ø 40 mm
axle length: 100 mm
• low overall height
• very good manoeuvrability

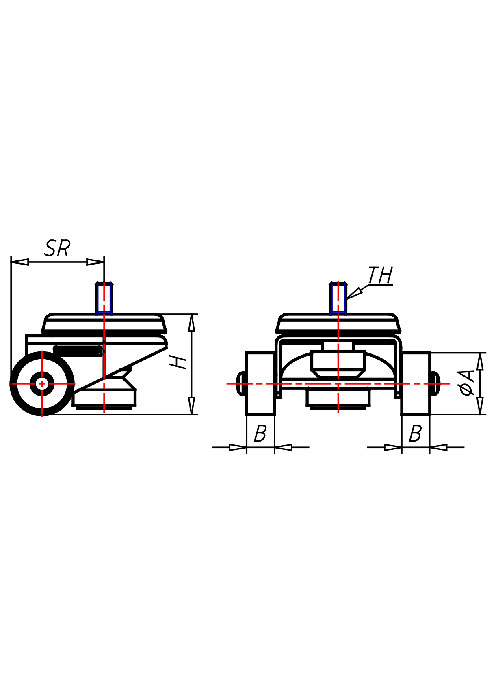

For a PDF with the technical description and detailed 3D CAD plans, please select the desired version. You can then download a PDF with the technical description or access detailed 3D CAD plans via our Cadenas Partcommunity portal.
The models have been carefully designed and validated for correctness. However, we take no responsibility for any incorrect or incomplete data.
Wheel Cast polyurethane coating, 95±3 Shore A
Fork Finish: reinforced pressed steel housing zinc plated, hardened double ball bearing, sealed, grease nipple, levelling foot reinforced black nylon with NBR-rubber pad
Wheel high quality nylon wheel
Fork Finish: reinforced pressed steel housing zinc plated, hardened double ball bearing, sealed, grease nipple, levelling foot reinforced black nylon with NBR-rubber pad
Wheel Casted high quality nylon wheel
Fork Stainless steel housing 1.4301 double ball race, pedal: length 140 mm, width 100 mm levelling foot with NBR rubber pad, Ø 40 mm • low overall height • very good manoeuvrability
Wheel Standard rubber tyre grey
Fork Stainless steel housing 1.4301 double ball race, pedal: length 140 mm, width 100 mm levelling foot with NBR rubber pad, Ø 40 mm • low overall height • very good manoeuvrability
