Wheels Series L, Wheel TYP E
  • Type E Wheels Series L, Wheel TYP E

    TYPE E

Select the required versions in order to show them already filtered in the following table.

Wheels - Pneumatic Wheels Series L TYP E

PDF product sheet
  • max 200 kg
  • -10 °C - +40 °C
  • 400-400 mm
  • ++
    swivels easily
  • +
    wear resistant
  • +++
    shock proof
  • +++
    floor protective
  • ++
    weather proof
  • Type E Wheels Series L, Wheel TYP E

    Type E

Select the required versions in order to show them already filtered in the following table.

Description

Advantages

  • excellent anti shock absorption
  • very low rolling resistance
  • very silent in motion
  • high running performance

Applications

  • Bins
  • Refuse bins
  • Trash containers
  • Refuse containers

Material

Material

Tread: black rubber
Revited steel rim, painted in grey

Documents/CAD

Cadenas Partcommunity-Portal

For a PDF with the technical description and detailed 3D CAD plans, please select the desired version. You can then download a PDF with the technical description or access detailed 3D CAD plans via our Cadenas Partcommunity portal.

The models have been carefully designed and validated for correctness. However, we take no responsibility for any incorrect or incomplete data.

Select version

Select version

2 of 2 items in this series are displayed.

Article number Articel type Price € QTY
400 LB 20

Wheels Series L, Wheel TYP E

Wheel Wheel-∅ x width [mm]: 400x100

Wheels Series L, Wheel TYP E

Technische Daten

  • Tragkraft kg 200
  • Nabenlänge mm 75
  • Einbaulänge mm 75
  • Radlagerung Roller bearing
  • Bohrungsdurchmesser mm 20
  • Radtype E
  • Felge grey
  • Reifen black

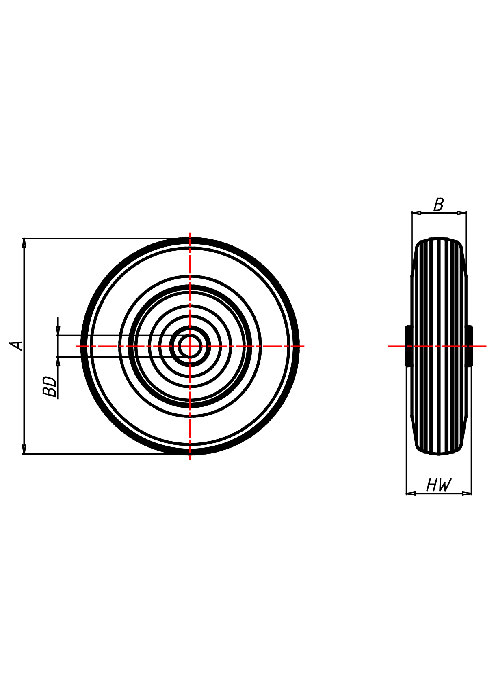

400 LB 25

Wheels Series L, Wheel TYP E

Wheel Wheel-∅ x width [mm]: 400x100

Wheels Series L, Wheel TYP E

Technische Daten

  • Tragkraft kg 200
  • Nabenlänge mm 75
  • Einbaulänge mm 75
  • Radlagerung Roller bearing
  • Bohrungsdurchmesser mm 25
  • Radtype E
  • Felge grey
  • Reifen black
