Wheels Series L, Wheel TYP F
  • Type F Wheels Series L, Wheel TYP F

    TYPE F

Select the required versions in order to show them already filtered in the following table.

Wheels - Pneumatic Wheels Series L TYP F

PDF product sheet
  • max 75 kg
  • -10 °C - +40 °C
  • 150-200 mm
  • ++
    swivels easily
  • +
    wear resistant
  • +++
    shock proof
  • +++
    floor protective
  • ++
    weather proof
  • Type F Wheels Series L, Wheel TYP F

    Type F

Select the required versions in order to show them already filtered in the following table.

Description

Advantages

  • excellent anti shock absorption
  • very low rolling resistance
  • very silent in motion
  • high running performance
  • non-marking in grey

Applications

  • Bins
  • Refuse bins
  • Trash containers
  • Refuse containers

Material

Material

Tread: grey rubber
Rim: Nylon

Documents/CAD

Cadenas Partcommunity-Portal

For a PDF with the technical description and detailed 3D CAD plans, please select the desired version. You can then download a PDF with the technical description or access detailed 3D CAD plans via our Cadenas Partcommunity portal.

The models have been carefully designed and validated for correctness. However, we take no responsibility for any incorrect or incomplete data.

Select version

Select version

3 of 3 items in this series are displayed.

Article number Articel type Price € QTY
150 LKGK 8

Wheels Series L, Wheel TYP F

Wheel Wheel-∅ x width [mm]: 150x32

Wheels Series L, Wheel TYP F

Technische Daten

  • Tragkraft kg 50
  • Nabenlänge mm 36
  • Einbaulänge mm 36
  • Radlagerung 2 Ball bearings
  • Bohrungsdurchmesser mm 8
  • Radtype F
  • Felge black
  • Reifen grey
200 LKUK 8

Wheels Series L, Wheel TYP F

Wheel Wheel-∅ x width [mm]: 200x50

Wheels Series L, Wheel TYP F

Technische Daten

  • Tragkraft kg 75
  • Nabenlänge mm 50
  • Einbaulänge mm 50
  • Radlagerung 2 Ball bearings
  • Bohrungsdurchmesser mm 8
  • Radtype F
  • Felge grey
  • Reifen grey

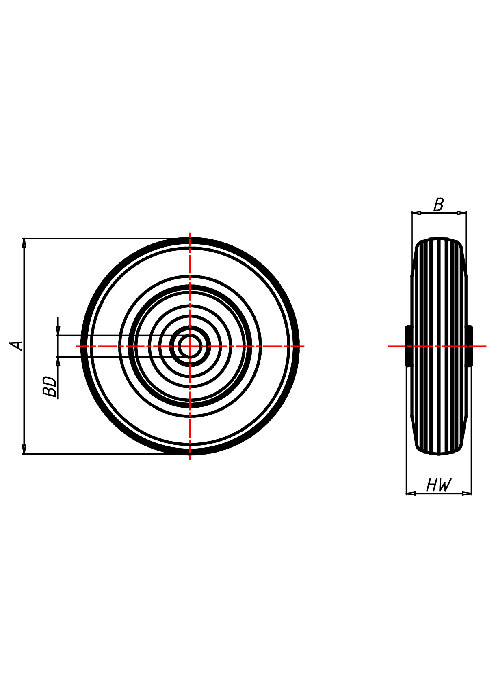

200 LKUK 12

Wheels Series L, Wheel TYP F

Wheel Wheel-∅ x width [mm]: 200x50

Wheels Series L, Wheel TYP F

Technische Daten

  • Tragkraft kg 75
  • Nabenlänge mm 50
  • Einbaulänge mm 50
  • Radlagerung 2 Ball bearings
  • Bohrungsdurchmesser mm 12
  • Radtype F
  • Felge grey
  • Reifen grey
