Tread: cast polyurethane, 95±3 Shore A Core: De-cast aluminium alloy
Fork material

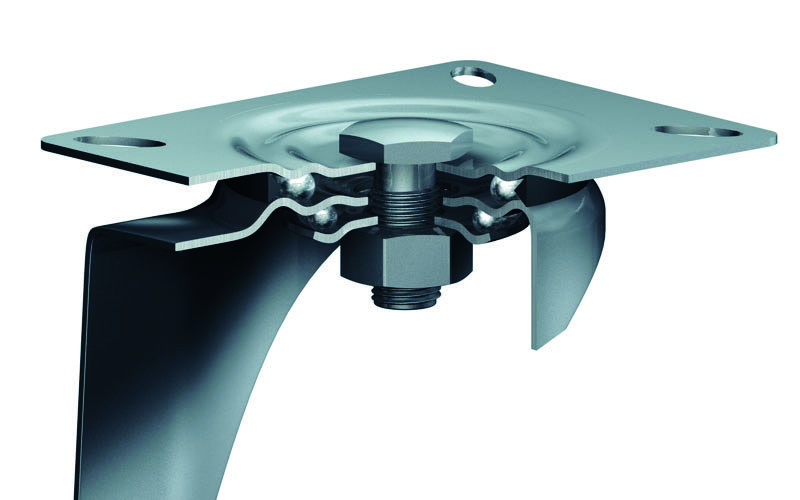

Finish: electro-zinc plated, hardened steel balls, double ball race swivel head – pressed steel sheet, with strong Kingpin bolted and locked – adjustable, thermoplastic dust protection ring and seal, wheel axle bolted, adjustable total lock – leading or trailing available
Documents/CAD
Cadenas Partcommunity-Portal
For a PDF with the technical description and detailed 3D CAD plans, please select the desired version. You can then download a PDF with the technical description or access detailed 3D CAD plans via our Cadenas Partcommunity portal.
The models have been carefully designed and validated for correctness. However, we take no responsibility for any incorrect or incomplete data.
Wheel Tread: cast-polyurethane 85 +- 3 shore A soft
Fork Finish: electro-zinc plated, hardened steel balls, double ball race swivel head – pressed steel sheet, with strong Kingpin bolted and locked – adjustable, thermoplastic dust protection ring and seal, wheel axle bolted, adjustable total lock – leading or trailing available
Transport
Serie KD,
Rad AL
max 450 kg
150-500 mm
Wheel Coated in injected polyurethane, 58±3 Shore D
Fork Finish: electro-zinc plated, hardened steel balls, double ball race swivel head – pressed steel sheet, with strong Kingpin bolted and locked – adjustable, thermoplastic dust protection ring and seal, wheel axle bolted, adjustable total lock – leading or trailing available
Transport
Serie KD,
Rad E
max 450 kg
150-500 mm
Wheel Tread: Elastic solid rubber tyre, black, 73±5 Shore A, vulcanised on wheel centre
Fork Finish: electro-zinc plated, hardened steel balls, double ball race swivel head – pressed steel sheet, with strong Kingpin bolted and locked – adjustable, thermoplastic dust protection ring and seal, wheel axle bolted, adjustable total lock – leading or trailing available
Transport
Serie KD,
Rad EGBA
max 450 kg
150-500 mm
Wheel SUPER-Elastic solid rubber tyre black 55 ± 3 Shore A soft, crowned treat
Fork Finish: electro-zinc plated, hardened steel balls, double ball race swivel head – pressed steel sheet, with strong Kingpin bolted and locked – adjustable, thermoplastic dust protection ring and seal, wheel axle bolted, adjustable total lock – leading or trailing available
Transport
Serie KD,
Rad EL
max 205 kg
150-500 mm
Wheel rubber tyre, electrically conductive, volume resistance value <104Ω
Fork Finish: electro-zinc plated, hardened steel balls, double ball race swivel head – pressed steel sheet, with strong Kingpin bolted and locked – adjustable, thermoplastic dust protection ring and seal, wheel axle bolted, adjustable total lock – leading or trailing available
