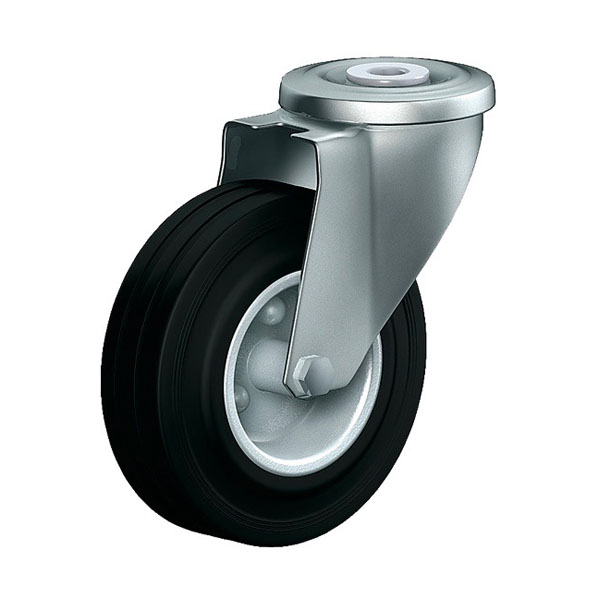

Heat Series CRH, Wheel HB
  • Swivel Castor Heat Series CRH, Wheel HB

    SWIVEL CASTOR

Select the required versions in order to show them already filtered in the following table.

Heat Series CRH, Wheel HB

PDF product sheet
  • max 230 kg
  • -20 °C - +120 °C
  • 100-200 mm
  • ++
    swivels easily
  • ++
    wear resistant
  • ++
    shock proof
  • ++
    floor protective
  • ++
    weather proof
  • Swivel Castor Heat Series CRH, Wheel HB

    Swivel Castor

Select the required versions in order to show them already filtered in the following table.

Description

Advantages

  • heat resistant
  • silent in motion
  • good running    performance
  • resistant to diluted acids

Applications

  • Bread racks

Material

Material

Standard rubber tyre black, heat-resistant
Bolted steel rim, zinc-plated

Fork material

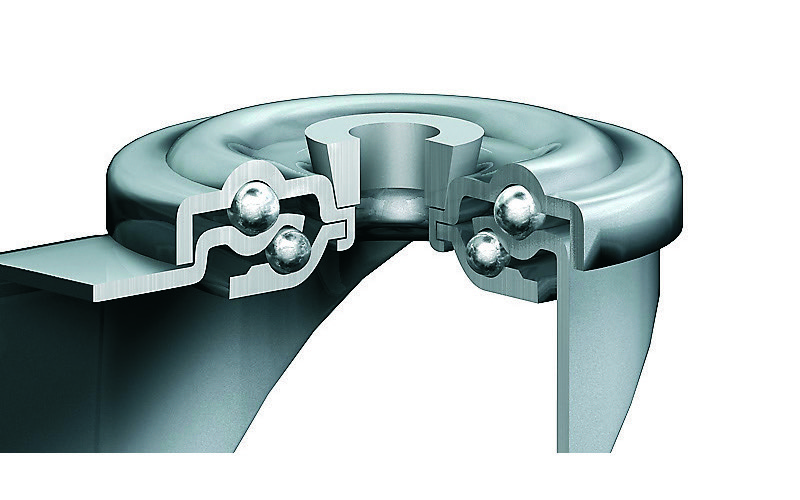

Finish: electro-zinc plated, double ball bearing – revited, hardened steel balls, high melting point grease, wheel axle bolted

Documents/CAD

Cadenas Partcommunity-Portal

For a PDF with the technical description and detailed 3D CAD plans, please select the desired version. You can then download a PDF with the technical description or access detailed 3D CAD plans via our Cadenas Partcommunity portal.

The models have been carefully designed and validated for correctness. However, we take no responsibility for any incorrect or incomplete data.

Select version

Select version

4 of 4 items in this series are displayed.

Article number Articel type Price € QTY
CRH 100 HBX

Heat Series CRH, Wheel HB

Swivel castor Wheel-∅ x width [mm]: 100x30

Heat Series CRH, Wheel HB

Technische Daten

  • Tragkraft kg 80
  • Bauhöhe H mm 128
  • Loch-Ø HD mm 12,5
  • Störkreisradius SR mm 88
  • Radlagerung Roller bearing
CRSH 125 HBX

Heat Series CRH, Wheel HB

Swivel castor Wheel-∅ x width [mm]: 125x38

Heat Series CRH, Wheel HB

Technische Daten

  • Tragkraft kg 120
  • Bauhöhe H mm 160
  • Loch-Ø HD mm 12,5
  • Störkreisradius SR mm 113
  • Radlagerung Roller bearing

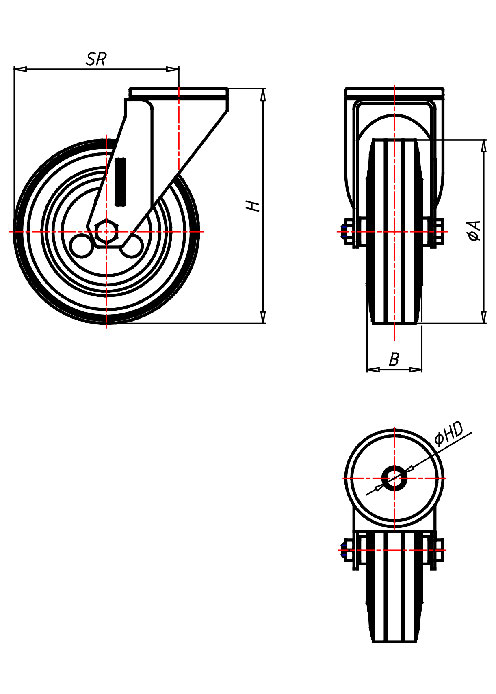

CRH 160 HBX

Heat Series CRH, Wheel HB

Swivel castor Wheel-∅ x width [mm]: 160x40

Heat Series CRH, Wheel HB

Technische Daten

  • Tragkraft kg 180
  • Bauhöhe H mm 203
  • Loch-Ø HD mm 12,5
  • Störkreisradius SR mm 138
  • Radlagerung Roller bearing
CRH 200 HBX

Heat Series CRH, Wheel HB

Swivel castor Wheel-∅ x width [mm]: 200x50

Heat Series CRH, Wheel HB

Technische Daten

  • Tragkraft kg 230
  • Bauhöhe H mm 240
  • Loch-Ø HD mm 12,5
  • Störkreisradius SR mm 161
  • Radlagerung Roller bearing

Suitable accessories
