Description
Advantages
- very silent in motion
- low rolling resistance
- high abrasion and tear resistance
- high resistance to shocks
- easy to clean
- good chemical resistance
Applications
- Bread racks

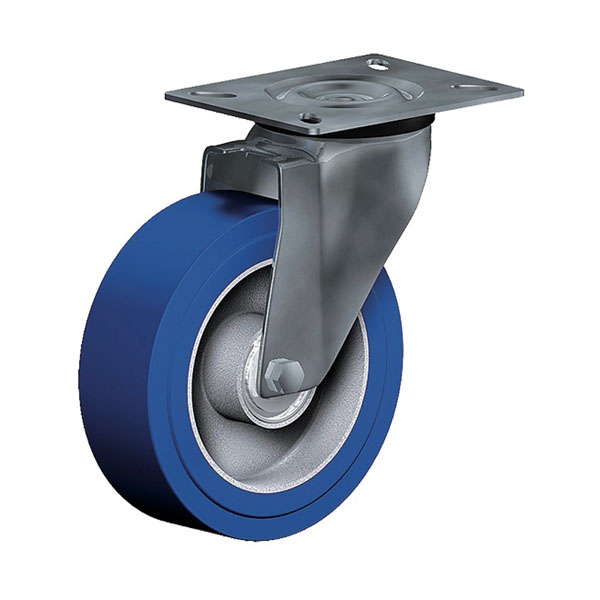

Heat Series XDH, Wheel HE
PDF product sheet
- max 80 kg
- -40 °C - +250 °C
- 100-100 mm
-
++
swivels easily -
++
wear resistant -
++
shock proof -
+++
floor protective -
+++
weather proof
Material
Material
Vulcanized SILICONE rubber 73±5 Shore A §§
Core in die-cast aluminium alloy
Fork material

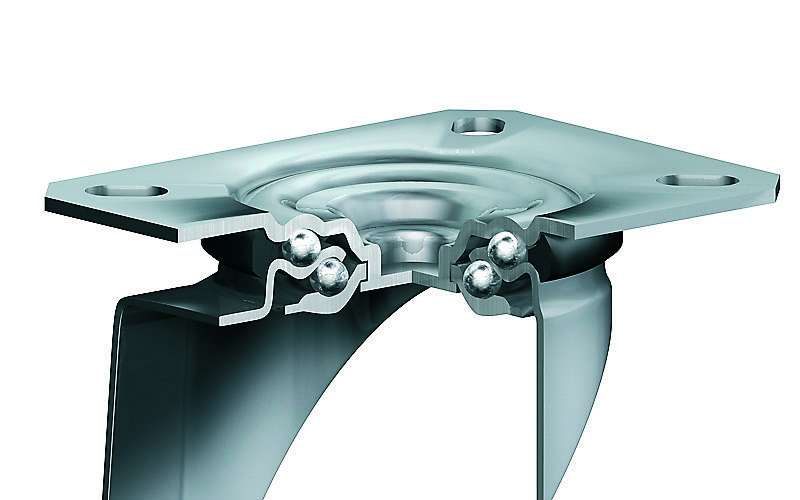

Finish: Polished stainless steel housing AISI 304, stainless steel balls AISI 420, double ball bearing, revited, dust protection ring up to max. 270° C, high melting point grease, wheel axle bolted
Documents/CAD
Cadenas Partcommunity-Portal
For a PDF with the technical description and detailed 3D CAD plans, please select the desired version. You can then download a PDF with the technical description or access detailed 3D CAD plans via our Cadenas Partcommunity portal.
The models have been carefully designed and validated for correctness. However, we take no responsibility for any incorrect or incomplete data.
Select version
Suitable accessories
-
Fixing Bolt STAINLESS STEEL M8x20 mm
Art.No. M 8X20 INOXEdelstahl
Edelstahl V2A
M8x20
€ /Pc., exkl. Shipping -
High melting point grease HLF 4025
Art.No. SPRAY HLF 4025-40 bis + 160 Grad
lebensmittelecht
€ /Pc., exkl. Shipping -
High melting point grease HTSF 285
Art.No. SPRAY HTSF 285+ 285 Grad
€ /Pc., exkl. Shipping -
Foot guard stainless steel and PU
Art.No. FUSSSCHUTZ PU€ /Pc., exkl. Shipping
Similar products
-
Heat
Serie XDH, Rad RHWheel Heat resistant red running surface made of Teflon
-
Heat
Serie XDH, Rad HBWheel Standard rubber tyre black, heat-resistant
Fork Finish: Polished stainless steel housing AISI 304, stainless steel balls AISI 420, double ball bearing, revited, dust protection ring up to max. 270° C, high melting point grease, wheel axle bolted
-
Heat
Serie XRH, Rad HEWheel Vulcanized SILICONE rubber 73±5 Shore A §§
Fork Finish: Polished stainless steel housing AISI 304, stainless steel balls AISI 420, double ball bearing, revited, high melting point grease, wheel axle bolted
-
Heat
Serie CDH, Rad HBWheel Standard rubber tyre black, heat-resistant
Fork Finish: electro-zinc plated, double ball bearing – revited, hardened steel balls, dust protection ring for temperatures up to max. 270° C, high melting point grease, wheel axle bolted
-
Heat
Serie CRH, Rad HEWheel Standard rubber tyre black, heat-resistant
Fork Finish: electro-zinc plated, double ball bearing – revited, hardened steel balls, high melting point grease, wheel axle bolted
