Stainless Steel Series XD, Wheel DG

 PDF product sheet

max 230 kg
-20 °C - +60 °C
80-200 mm

++

swivels easily
++

wear resistant
++

shock proof
+++

floor protective
+++

weather proof

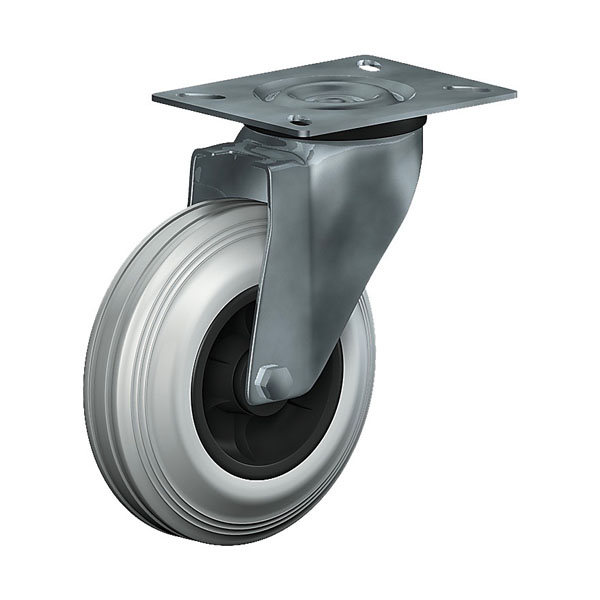

Swivel Castor

Show dimensions

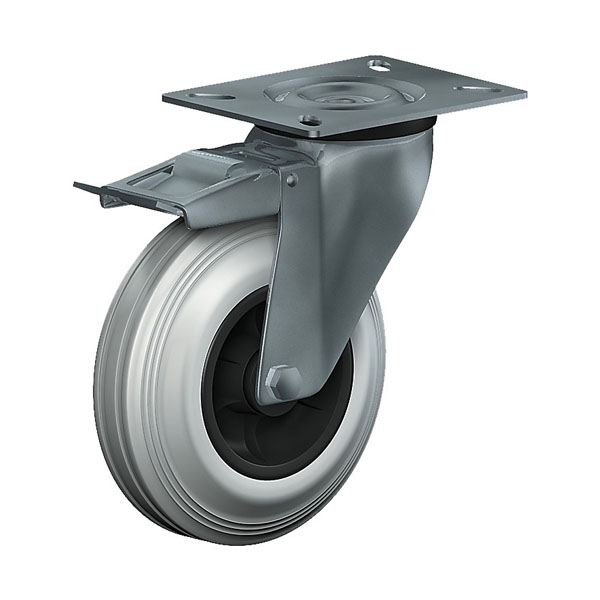

Swivel Castor With Total Lock

Show dimensions

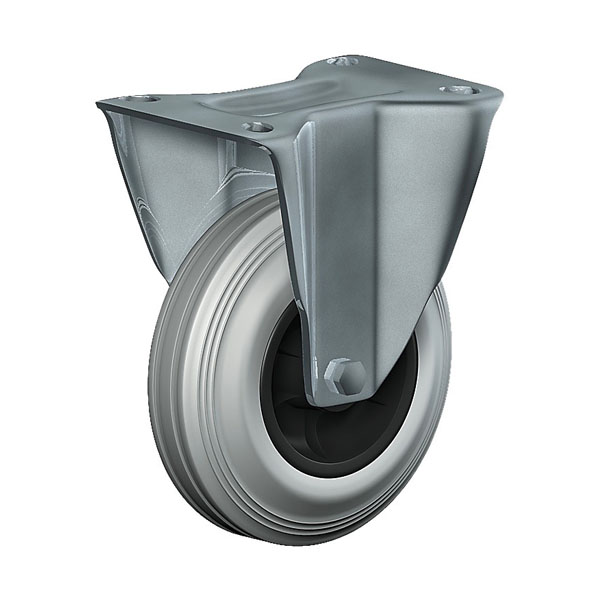

Fixed Castor

Show dimensions

Select the required versions in order to show them already filtered in the following table.

Advantages

non-marking – floor protective
excellent running performance
very silent in motion
low rolling resistance
good abrasion resistance

Applications

Mechatronik
Wet environments
Dollies

Material

Elastic solid rubber tyre, grey, 75±5 Shore A

Quality nylon wheel centre, black

Fork material

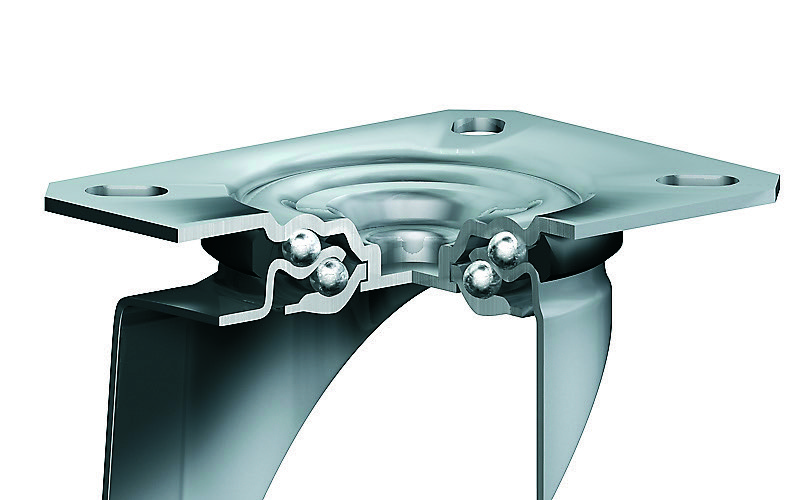

Finish: Polished stainless steel swivel fork AISI 304, stainless steel balls AISI 420, double ball bearing – revited, with dust protection ring, wheel axle bolted, total lock

Cadenas Partcommunity-Portal

For a PDF with the technical description and detailed 3D CAD plans, please select the desired version. You can then download a PDF with the technical description or access detailed 3D CAD plans via our Cadenas Partcommunity portal.

The models have been carefully designed and validated for correctness. However, we take no responsibility for any incorrect or incomplete data.

Select version

40 of 40 items in this series are displayed.

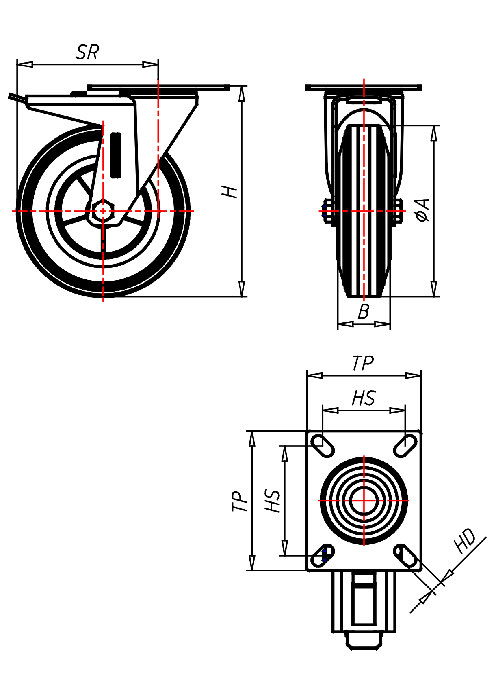

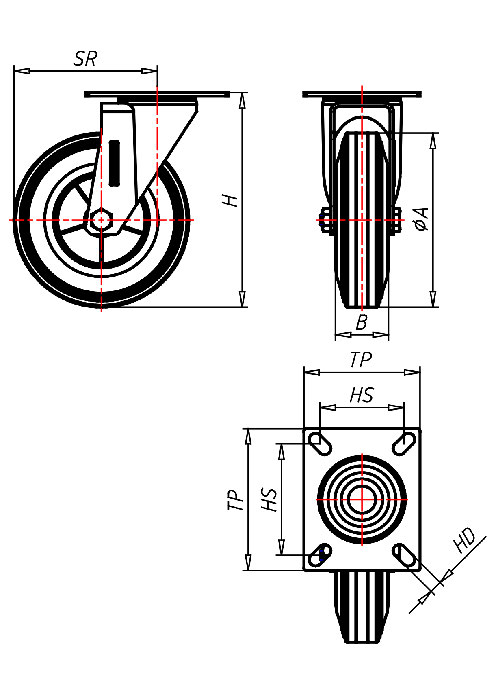

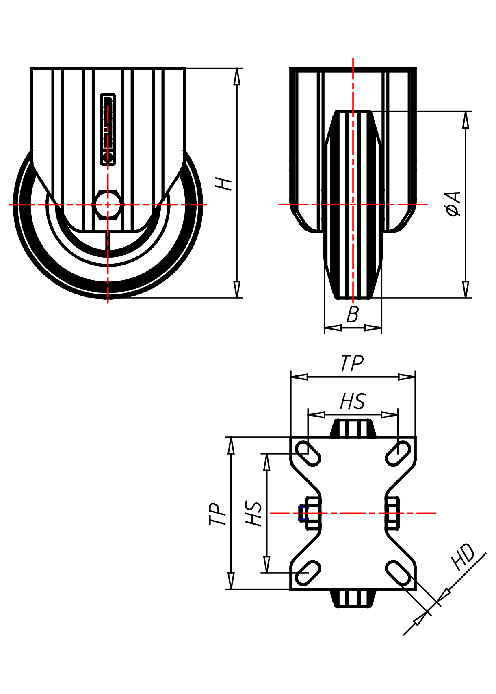

Article number	Articel type	Wheel-Ø A x width B mm	Load Capacity kg	Overall height H mm	Dimension of top plate TP mm	Hole spacing HS mm	Hole-Ø HD mm	Swivel radius SR mm
XD 80 DGBX	Swivel castor	80x30	55	106	102x83	80x60	9	75
Stainless Steel Series XD, Wheel DG Swivel castor Wheel-∅ x width [mm]: 80x30 Technische Daten Tragkraft kg 55 Bauhöhe H mm 106 Plattengröße TP mm 102x83 Lochabstand HS mm 80x60 Loch-Ø HD mm 9 Störkreisradius SR mm 75 Radlagerung Roller bearing PDF Data sheet 3D model (Cardenas Customer portal)
XDT 80 DGBX	Swivel castor with total lock	80x30	55	106	102x83	80x60	9	108
Stainless Steel Series XD, Wheel DG Swivel castor with total lock Wheel-∅ x width [mm]: 80x30 Technische Daten Tragkraft kg 55 Bauhöhe H mm 106 Plattengröße TP mm 102x83 Lochabstand HS mm 80x60 Loch-Ø HD mm 9 Störkreisradius SR mm 108 Radlagerung Roller bearing PDF Data sheet 3D model (Cardenas Customer portal)
XF 80 DGBX	Fixed castor	80x30	55	106	102x83	80x60	9
Stainless Steel Series XD, Wheel DG Fixed castor Wheel-∅ x width [mm]: 80x30 Technische Daten Tragkraft kg 55 Bauhöhe H mm 106 Plattengröße TP mm 102x83 Lochabstand HS mm 80x60 Loch-Ø HD mm 9 Radlagerung Roller bearing PDF Data sheet 3D model (Cardenas Customer portal)
XD 80 DG	Swivel castor	80x30	55	106	102x83	80x60	9	75
Stainless Steel Series XD, Wheel DG Swivel castor Wheel-∅ x width [mm]: 80x30 Technische Daten Tragkraft kg 55 Bauhöhe H mm 106 Plattengröße TP mm 102x83 Lochabstand HS mm 80x60 Loch-Ø HD mm 9 Störkreisradius SR mm 75 Radlagerung Nylon plain bearing PDF Data sheet 3D model (Cardenas Customer portal)
XDT 80 DG	Swivel castor with total lock	80x30	55	106	102x83	80x60	9	108
Stainless Steel Series XD, Wheel DG Swivel castor with total lock Wheel-∅ x width [mm]: 80x30 Technische Daten Tragkraft kg 55 Bauhöhe H mm 106 Plattengröße TP mm 102x83 Lochabstand HS mm 80x60 Loch-Ø HD mm 9 Störkreisradius SR mm 108 Radlagerung Nylon plain bearing
XF 80 DG	Fixed castor	80x30	55	106	102x83	80x60	9
Stainless Steel Series XD, Wheel DG Fixed castor Wheel-∅ x width [mm]: 80x30 Technische Daten Tragkraft kg 55 Bauhöhe H mm 106 Plattengröße TP mm 102x83 Lochabstand HS mm 80x60 Loch-Ø HD mm 9 Radlagerung Nylon plain bearing PDF Data sheet 3D model (Cardenas Customer portal)
XD 100 DGBX	Swivel castor	100x30	85	128	102x83	80x60	9	88
Stainless Steel Series XD, Wheel DG Swivel castor Wheel-∅ x width [mm]: 100x30 Technische Daten Tragkraft kg 85 Bauhöhe H mm 128 Plattengröße TP mm 102x83 Lochabstand HS mm 80x60 Loch-Ø HD mm 9 Störkreisradius SR mm 88 Radlagerung Roller bearing PDF Data sheet 3D model (Cardenas Customer portal)
XDT 100 DGBX	Swivel castor with total lock	100x30	85	128	102x83	80x60	9	108
Stainless Steel Series XD, Wheel DG Swivel castor with total lock Wheel-∅ x width [mm]: 100x30 Technische Daten Tragkraft kg 85 Bauhöhe H mm 128 Plattengröße TP mm 102x83 Lochabstand HS mm 80x60 Loch-Ø HD mm 9 Störkreisradius SR mm 108 Radlagerung Roller bearing PDF Data sheet 3D model (Cardenas Customer portal)
XF 100 DGBX	Fixed castor	100x30	85	128	102x83	80x60	9
Stainless Steel Series XD, Wheel DG Fixed castor Wheel-∅ x width [mm]: 100x30 Technische Daten Tragkraft kg 85 Bauhöhe H mm 128 Plattengröße TP mm 102x83 Lochabstand HS mm 80x60 Loch-Ø HD mm 9 Radlagerung Roller bearing PDF Data sheet 3D model (Cardenas Customer portal)
XD 100 DG	Swivel castor	100x30	85	128	102x83	80x60	9	88
Stainless Steel Series XD, Wheel DG Swivel castor Wheel-∅ x width [mm]: 100x30 Technische Daten Tragkraft kg 85 Bauhöhe H mm 128 Plattengröße TP mm 102x83 Lochabstand HS mm 80x60 Loch-Ø HD mm 9 Störkreisradius SR mm 88 Radlagerung Nylon plain bearing PDF Data sheet 3D model (Cardenas Customer portal)
XDT 100 DG	Swivel castor with total lock	100x30	85	128	102x83	80x60	9	108
Stainless Steel Series XD, Wheel DG Swivel castor with total lock Wheel-∅ x width [mm]: 100x30 Technische Daten Tragkraft kg 85 Bauhöhe H mm 128 Plattengröße TP mm 102x83 Lochabstand HS mm 80x60 Loch-Ø HD mm 9 Störkreisradius SR mm 108 Radlagerung Nylon plain bearing PDF Data sheet 3D model (Cardenas Customer portal)
XF 100 DG	Fixed castor	100x30	85	128	102x83	80x60	9
Stainless Steel Series XD, Wheel DG Fixed castor Wheel-∅ x width [mm]: 100x30 Technische Daten Tragkraft kg 85 Bauhöhe H mm 128 Plattengröße TP mm 102x83 Lochabstand HS mm 80x60 Loch-Ø HD mm 9 Radlagerung Nylon plain bearing PDF Data sheet 3D model (Cardenas Customer portal)
XD 125 DGBX	Swivel castor	125x38	110	154	102x83	80x60	9	104
Stainless Steel Series XD, Wheel DG Swivel castor Wheel-∅ x width [mm]: 125x38 Technische Daten Tragkraft kg 110 Bauhöhe H mm 154 Plattengröße TP mm 102x83 Lochabstand HS mm 80x60 Loch-Ø HD mm 9 Störkreisradius SR mm 104 Radlagerung Roller bearing PDF Data sheet 3D model (Cardenas Customer portal)
XDT 125 DGBX	Swivel castor with total lock	125x38	110	154	102x83	80x60	9	108
Stainless Steel Series XD, Wheel DG Swivel castor with total lock Wheel-∅ x width [mm]: 125x38 Technische Daten Tragkraft kg 110 Bauhöhe H mm 154 Plattengröße TP mm 102x83 Lochabstand HS mm 80x60 Loch-Ø HD mm 9 Störkreisradius SR mm 108 Radlagerung Roller bearing PDF Data sheet 3D model (Cardenas Customer portal)
XF 125 DGBX	Fixed castor	125x38	110	154	102x83	80x60	9
Stainless Steel Series XD, Wheel DG Fixed castor Wheel-∅ x width [mm]: 125x38 Technische Daten Tragkraft kg 110 Bauhöhe H mm 154 Plattengröße TP mm 102x83 Lochabstand HS mm 80x60 Loch-Ø HD mm 9 Radlagerung Roller bearing PDF Data sheet 3D model (Cardenas Customer portal)
XD 125 DG	Swivel castor	125x38	110	154	102x83	80x60	9	104
Stainless Steel Series XD, Wheel DG Swivel castor Wheel-∅ x width [mm]: 125x38 Technische Daten Tragkraft kg 110 Bauhöhe H mm 154 Plattengröße TP mm 102x83 Lochabstand HS mm 80x60 Loch-Ø HD mm 9 Störkreisradius SR mm 104 Radlagerung Nylon plain bearing PDF Data sheet 3D model (Cardenas Customer portal)
XDT 125 DG	Swivel castor with total lock	125x38	110	154	102x83	80x60	9	108
Stainless Steel Series XD, Wheel DG Swivel castor with total lock Wheel-∅ x width [mm]: 125x38 Technische Daten Tragkraft kg 110 Bauhöhe H mm 154 Plattengröße TP mm 102x83 Lochabstand HS mm 80x60 Loch-Ø HD mm 9 Störkreisradius SR mm 108 Radlagerung Nylon plain bearing PDF Data sheet 3D model (Cardenas Customer portal)
XF 125 DG	Fixed castor	125x38	110	154	102x83	80x60	9
Stainless Steel Series XD, Wheel DG Fixed castor Wheel-∅ x width [mm]: 125x38 Technische Daten Tragkraft kg 110 Bauhöhe H mm 154 Plattengröße TP mm 102x83 Lochabstand HS mm 80x60 Loch-Ø HD mm 9 Radlagerung Nylon plain bearing PDF Data sheet 3D model (Cardenas Customer portal)
XD 150 DGBX	Swivel castor	150x40	150	181	135x110	105x80	11	128
Stainless Steel Series XD, Wheel DG Swivel castor Wheel-∅ x width [mm]: 150x40 Technische Daten Tragkraft kg 150 Bauhöhe H mm 181 Plattengröße TP mm 135x110 Lochabstand HS mm 105x80 Loch-Ø HD mm 11 Störkreisradius SR mm 128 Radlagerung Roller bearing PDF Data sheet 3D model (Cardenas Customer portal)
XDT 150 DGBX	Swivel castor with total lock	150x40	150	181	135x110	105x80	11	140
Stainless Steel Series XD, Wheel DG Swivel castor with total lock Wheel-∅ x width [mm]: 150x40 Technische Daten Tragkraft kg 150 Bauhöhe H mm 181 Plattengröße TP mm 135x110 Lochabstand HS mm 105x80 Loch-Ø HD mm 11 Störkreisradius SR mm 140 Radlagerung Roller bearing PDF Data sheet 3D model (Cardenas Customer portal)
XF 150 DGBX	Fixed castor	150x40	150	181	135x110	105x80	11
Stainless Steel Series XD, Wheel DG Fixed castor Wheel-∅ x width [mm]: 150x40 Technische Daten Tragkraft kg 150 Bauhöhe H mm 181 Plattengröße TP mm 135x110 Lochabstand HS mm 105x80 Loch-Ø HD mm 11 Radlagerung Roller bearing PDF Data sheet 3D model (Cardenas Customer portal)
XL 150 DGBX	Swivel castor	150x40	150	181	102x83	80x60	9	128
Stainless Steel Series XD, Wheel DG Swivel castor Wheel-∅ x width [mm]: 150x40 Technische Daten Tragkraft kg 150 Bauhöhe H mm 181 Plattengröße TP mm 102x83 Lochabstand HS mm 80x60 Loch-Ø HD mm 9 Störkreisradius SR mm 128 Radlagerung Roller bearing PDF Data sheet 3D model (Cardenas Customer portal)
XLT 150 DGBX	Swivel castor with total lock	150x40	150	181	102x83	80x60	9	140
Stainless Steel Series XD, Wheel DG Swivel castor with total lock Wheel-∅ x width [mm]: 150x40 Technische Daten Tragkraft kg 150 Bauhöhe H mm 181 Plattengröße TP mm 102x83 Lochabstand HS mm 80x60 Loch-Ø HD mm 9 Störkreisradius SR mm 140 Radlagerung Roller bearing PDF Data sheet 3D model (Cardenas Customer portal)
XLF 150 DGBX	Fixed castor	150x40	150	181	102x83	80x60	9
Stainless Steel Series XD, Wheel DG Fixed castor Wheel-∅ x width [mm]: 150x40 Technische Daten Tragkraft kg 150 Bauhöhe H mm 181 Plattengröße TP mm 102x83 Lochabstand HS mm 80x60 Loch-Ø HD mm 9 Radlagerung Roller bearing PDF Data sheet 3D model (Cardenas Customer portal)
XD 150 DG	Swivel castor	150x40	150	181	135x110	105x80	11	128
Stainless Steel Series XD, Wheel DG Swivel castor Wheel-∅ x width [mm]: 150x40 Technische Daten Tragkraft kg 150 Bauhöhe H mm 181 Plattengröße TP mm 135x110 Lochabstand HS mm 105x80 Loch-Ø HD mm 11 Störkreisradius SR mm 128 Radlagerung Nylon plain bearing PDF Data sheet 3D model (Cardenas Customer portal)
XDT 150 DG	Swivel castor with total lock	150x40	150	181	135x110	105x80	11	140
Stainless Steel Series XD, Wheel DG Swivel castor with total lock Wheel-∅ x width [mm]: 150x40 Technische Daten Tragkraft kg 150 Bauhöhe H mm 181 Plattengröße TP mm 135x110 Lochabstand HS mm 105x80 Loch-Ø HD mm 11 Störkreisradius SR mm 140 Radlagerung Nylon plain bearing PDF Data sheet 3D model (Cardenas Customer portal)
XF 150 DG	Fixed castor	150x40	150	181	135x110	105x80	11
Stainless Steel Series XD, Wheel DG Fixed castor Wheel-∅ x width [mm]: 150x40 Technische Daten Tragkraft kg 150 Bauhöhe H mm 181 Plattengröße TP mm 135x110 Lochabstand HS mm 105x80 Loch-Ø HD mm 11 Radlagerung Nylon plain bearing PDF Data sheet 3D model (Cardenas Customer portal)
XL 150 DG	Swivel castor	150x40	150	181	102x83	80x60	9	128
Stainless Steel Series XD, Wheel DG Swivel castor Wheel-∅ x width [mm]: 150x40 Technische Daten Tragkraft kg 150 Bauhöhe H mm 181 Plattengröße TP mm 102x83 Lochabstand HS mm 80x60 Loch-Ø HD mm 9 Störkreisradius SR mm 128 Radlagerung Nylon plain bearing PDF Data sheet 3D model (Cardenas Customer portal)
XLT 150 DG	Swivel castor with total lock	150x40	150	181	102x83	80x60	9	140
Stainless Steel Series XD, Wheel DG Swivel castor with total lock Wheel-∅ x width [mm]: 150x40 Technische Daten Tragkraft kg 150 Bauhöhe H mm 181 Plattengröße TP mm 102x83 Lochabstand HS mm 80x60 Loch-Ø HD mm 9 Störkreisradius SR mm 140 Radlagerung Nylon plain bearing PDF Data sheet 3D model (Cardenas Customer portal)
XLF 150 DG	Fixed castor	150x40	150	181	102x83	80x60	9
Stainless Steel Series XD, Wheel DG Fixed castor Wheel-∅ x width [mm]: 150x40 Technische Daten Tragkraft kg 150 Bauhöhe H mm 181 Plattengröße TP mm 102x83 Lochabstand HS mm 80x60 Loch-Ø HD mm 9 Radlagerung Nylon plain bearing PDF Data sheet 3D model (Cardenas Customer portal)
XD 160 DGBX	Swivel castor	160x40	160	191	135x110	105x80	11	133
Stainless Steel Series XD, Wheel DG Swivel castor Wheel-∅ x width [mm]: 160x40 Technische Daten Tragkraft kg 160 Bauhöhe H mm 191 Plattengröße TP mm 135x110 Lochabstand HS mm 105x80 Loch-Ø HD mm 11 Störkreisradius SR mm 133 Radlagerung Roller bearing PDF Data sheet 3D model (Cardenas Customer portal)
XF 160 DGBX	Fixed castor	160x40	160	191	135x110	105x80	11
Stainless Steel Series XD, Wheel DG Fixed castor Wheel-∅ x width [mm]: 160x40 Technische Daten Tragkraft kg 160 Bauhöhe H mm 191 Plattengröße TP mm 135x110 Lochabstand HS mm 105x80 Loch-Ø HD mm 11 Radlagerung Roller bearing PDF Data sheet 3D model (Cardenas Customer portal)
XD 160 DG	Swivel castor	160x40	160	191	135x110	105x80	11	133
Stainless Steel Series XD, Wheel DG Swivel castor Wheel-∅ x width [mm]: 160x40 Technische Daten Tragkraft kg 160 Bauhöhe H mm 191 Plattengröße TP mm 135x110 Lochabstand HS mm 105x80 Loch-Ø HD mm 11 Störkreisradius SR mm 133 Radlagerung Nylon plain bearing
XF 160 DG	Fixed castor	160x40	160	191	135x110	105x80	11
Stainless Steel Series XD, Wheel DG Fixed castor Wheel-∅ x width [mm]: 160x40 Technische Daten Tragkraft kg 160 Bauhöhe H mm 191 Plattengröße TP mm 135x110 Lochabstand HS mm 105x80 Loch-Ø HD mm 11 Radlagerung Nylon plain bearing
XD 200 DGBX	Swivel castor	200x50	230	240	135x110	105x80	11	161
Stainless Steel Series XD, Wheel DG Swivel castor Wheel-∅ x width [mm]: 200x50 Technische Daten Tragkraft kg 230 Bauhöhe H mm 240 Plattengröße TP mm 135x110 Lochabstand HS mm 105x80 Loch-Ø HD mm 11 Störkreisradius SR mm 161 Radlagerung Roller bearing PDF Data sheet 3D model (Cardenas Customer portal)
XDT 200 DGBX	Swivel castor with total lock	200x50	230	240	135x110	105x80	11	168
Stainless Steel Series XD, Wheel DG Swivel castor with total lock Wheel-∅ x width [mm]: 200x50 Technische Daten Tragkraft kg 230 Bauhöhe H mm 240 Plattengröße TP mm 135x110 Lochabstand HS mm 105x80 Loch-Ø HD mm 11 Störkreisradius SR mm 168 Radlagerung Roller bearing PDF Data sheet 3D model (Cardenas Customer portal)
XF 200 DGBX	Fixed castor	200x50	230	240	135x110	105x80	11
Stainless Steel Series XD, Wheel DG Fixed castor Wheel-∅ x width [mm]: 200x50 Technische Daten Tragkraft kg 230 Bauhöhe H mm 240 Plattengröße TP mm 135x110 Lochabstand HS mm 105x80 Loch-Ø HD mm 11 Radlagerung Roller bearing PDF Data sheet 3D model (Cardenas Customer portal)
XD 200 DG	Swivel castor	200x50	230	240	135x110	105x80	11	161
Stainless Steel Series XD, Wheel DG Swivel castor Wheel-∅ x width [mm]: 200x50 Technische Daten Tragkraft kg 230 Bauhöhe H mm 240 Plattengröße TP mm 135x110 Lochabstand HS mm 105x80 Loch-Ø HD mm 11 Störkreisradius SR mm 161 Radlagerung Nylon plain bearing PDF Data sheet 3D model (Cardenas Customer portal)
XDT 200 DG	Swivel castor with total lock	200x50	230	240	135x110	105x80	11	168
Stainless Steel Series XD, Wheel DG Swivel castor with total lock Wheel-∅ x width [mm]: 200x50 Technische Daten Tragkraft kg 230 Bauhöhe H mm 240 Plattengröße TP mm 135x110 Lochabstand HS mm 105x80 Loch-Ø HD mm 11 Störkreisradius SR mm 168 Radlagerung Nylon plain bearing PDF Data sheet 3D model (Cardenas Customer portal)
XF 200 DG	Fixed castor	200x50	230	240	135x110	105x80	11
Stainless Steel Series XD, Wheel DG Fixed castor Wheel-∅ x width [mm]: 200x50 Technische Daten Tragkraft kg 230 Bauhöhe H mm 240 Plattengröße TP mm 135x110 Lochabstand HS mm 105x80 Loch-Ø HD mm 11 Radlagerung Nylon plain bearing PDF Data sheet 3D model (Cardenas Customer portal)

Suitable accessories

Fixing Bolt STAINLESS STEEL M8x20 mm
Art.No. M 8X20 INOX

Edelstahl
Edelstahl V2A
M8x20

Qty € /Pc., exkl. Shipping
Fixing Bolt STAINLESS STEEL M10x20 mm
Art.No. M 10X20 INOX

Edelstahl
Edelstahl V2A
M10x20

Qty € /Pc., exkl. Shipping
Foot guard stainless steel and PU
