Stainless Steel Series XD, Wheel P

 PDF product sheet

max 370 kg
-30 °C - +80 °C
80-200 mm

++

swivels easily
+++

wear resistant
++

shock proof
++

floor protective
+++

weather proof

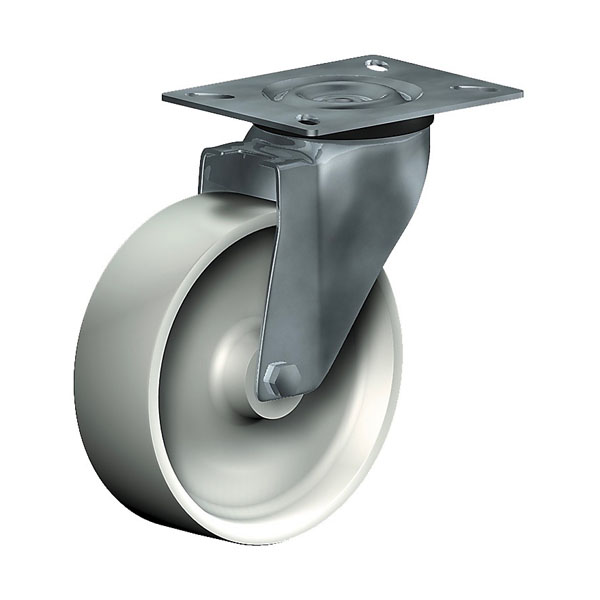

Swivel Castor

Show dimensions

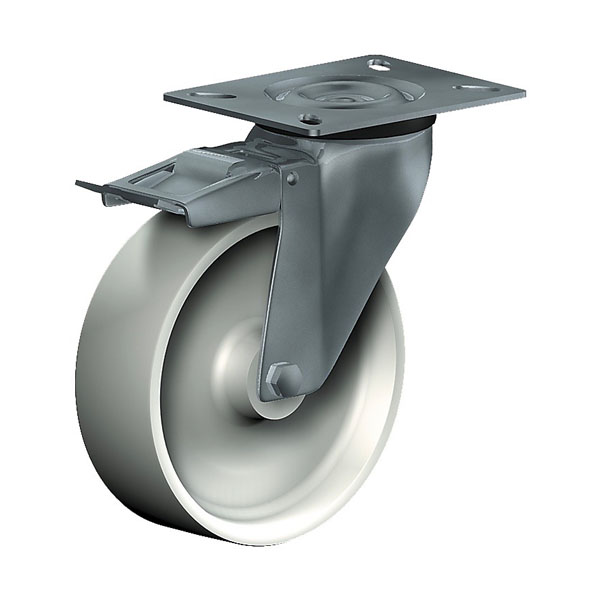

Swivel Castor With Total Lock

Show dimensions

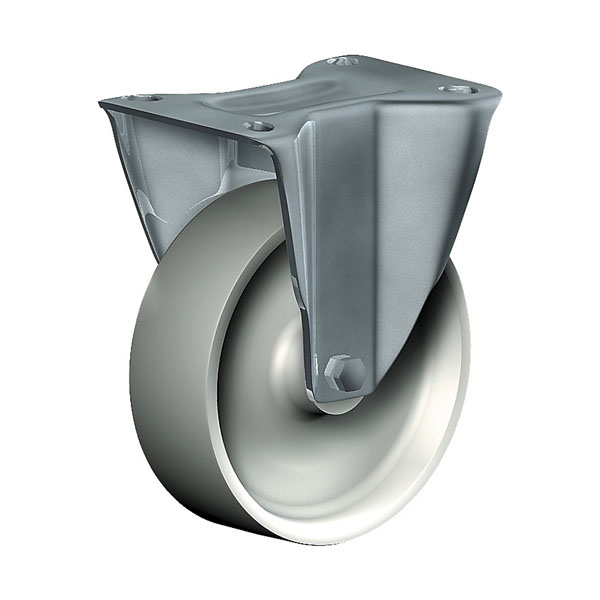

Fixed Castor

Show dimensions

Select the required versions in order to show them already filtered in the following table.

Floor condition

PVC/Concrete
Carpet
Asphalt

Advantages

easy running on smooth floors
impact proof
high abrasion resistance
easy to clean
high chemical resistance

Applications

Kitchen equipment
Mechatronik
Wet environments
Dollies

Material

Casted high quality nylon wheel

Fork material

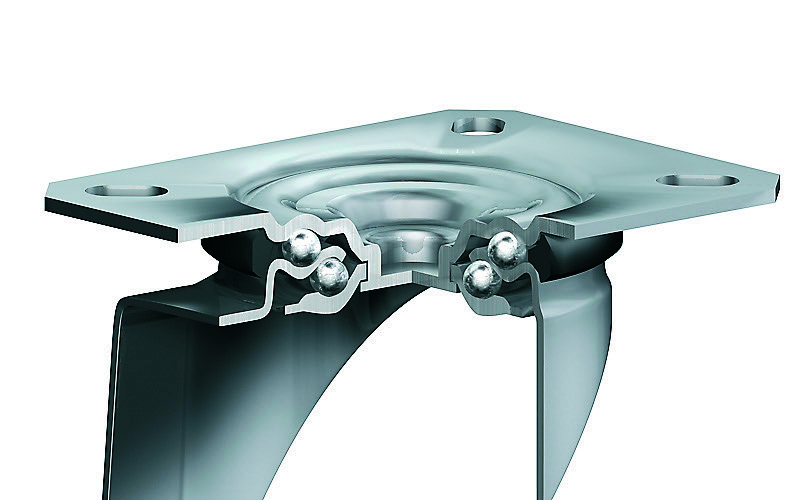

Finish: Polished stainless steel swivel fork AISI 304, stainless steel balls AISI 420, double ball bearing – revited, with dust protection ring, wheel axle bolted, total lock

Cadenas Partcommunity-Portal

For a PDF with the technical description and detailed 3D CAD plans, please select the desired version. You can then download a PDF with the technical description or access detailed 3D CAD plans via our Cadenas Partcommunity portal.

The models have been carefully designed and validated for correctness. However, we take no responsibility for any incorrect or incomplete data.

Select version

54 of 54 items in this series are displayed.

Article number	Articel type	Wheel-Ø A x width B mm	Load Capacity kg	Overall height H mm	Dimension of top plate TP mm	Hole spacing HS mm	Hole-Ø HD mm	Swivel radius SR mm	Price €
XD 80 PBX	Swivel castor	80x30	150	106	102x83	80x60	9	75	54,50
Stainless Steel Series XD, Wheel P Swivel castor Wheel-∅ x width [mm]: 80x30 Technische Daten Tragkraft kg 150 Bauhöhe H mm 106 Plattengröße TP mm 102x83 Lochabstand HS mm 80x60 Loch-Ø HD mm 9 Störkreisradius SR mm 75 Radlagerung Roller bearing PDF Data sheet 3D model (Cardenas Customer portal)
XDT 80 PBX	Swivel castor with total lock	80x30	150	106	102x83	80x60	9	108	73,40
Stainless Steel Series XD, Wheel P Swivel castor with total lock Wheel-∅ x width [mm]: 80x30 Technische Daten Tragkraft kg 150 Bauhöhe H mm 106 Plattengröße TP mm 102x83 Lochabstand HS mm 80x60 Loch-Ø HD mm 9 Störkreisradius SR mm 108 Radlagerung Roller bearing PDF Data sheet 3D model (Cardenas Customer portal)

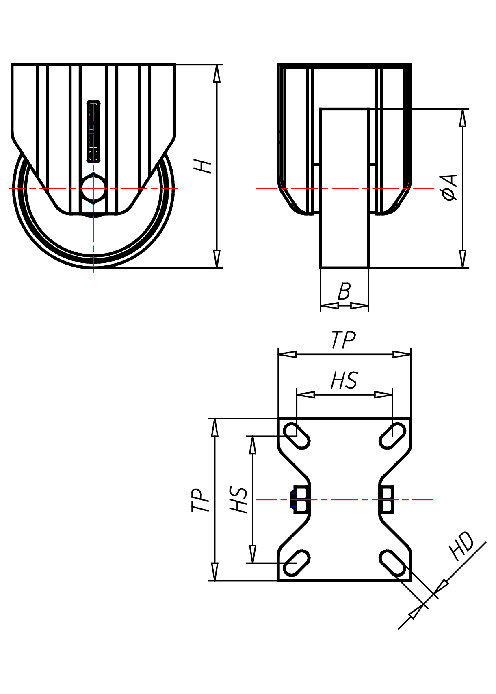

XF 80 PBX	Fixed castor	80x30	150	106	102x83	80x60	9		37,10
Stainless Steel Series XD, Wheel P Fixed castor Wheel-∅ x width [mm]: 80x30 Technische Daten Tragkraft kg 150 Bauhöhe H mm 106 Plattengröße TP mm 102x83 Lochabstand HS mm 80x60 Loch-Ø HD mm 9 Radlagerung Roller bearing PDF Data sheet 3D model (Cardenas Customer portal)
XD 80 P	Swivel castor	80x30	150	106	102x83	80x60	9	75	44,00
Stainless Steel Series XD, Wheel P Swivel castor Wheel-∅ x width [mm]: 80x30 Technische Daten Tragkraft kg 150 Bauhöhe H mm 106 Plattengröße TP mm 102x83 Lochabstand HS mm 80x60 Loch-Ø HD mm 9 Störkreisradius SR mm 75 Radlagerung Nylon plain bearing PDF Data sheet 3D model (Cardenas Customer portal)
XDT 80 P	Swivel castor with total lock	80x30	150	106	102x83	80x60	9	108	63,10
Stainless Steel Series XD, Wheel P Swivel castor with total lock Wheel-∅ x width [mm]: 80x30 Technische Daten Tragkraft kg 150 Bauhöhe H mm 106 Plattengröße TP mm 102x83 Lochabstand HS mm 80x60 Loch-Ø HD mm 9 Störkreisradius SR mm 108 Radlagerung Nylon plain bearing PDF Data sheet 3D model (Cardenas Customer portal)
XF 80 P	Fixed castor	80x30	150	106	102x83	80x60	9		27,00
Stainless Steel Series XD, Wheel P Fixed castor Wheel-∅ x width [mm]: 80x30 Technische Daten Tragkraft kg 150 Bauhöhe H mm 106 Plattengröße TP mm 102x83 Lochabstand HS mm 80x60 Loch-Ø HD mm 9 Radlagerung Nylon plain bearing PDF Data sheet 3D model (Cardenas Customer portal)
XD 100 PBX	Swivel castor	100x30	150	128	102x83	80x60	9	88	57,10
Stainless Steel Series XD, Wheel P Swivel castor Wheel-∅ x width [mm]: 100x30 Technische Daten Tragkraft kg 150 Bauhöhe H mm 128 Plattengröße TP mm 102x83 Lochabstand HS mm 80x60 Loch-Ø HD mm 9 Störkreisradius SR mm 88 Radlagerung Roller bearing PDF Data sheet 3D model (Cardenas Customer portal)
XDT 100 PBX	Swivel castor with total lock	100x30	150	128	102x83	80x60	9	108	75,50
Stainless Steel Series XD, Wheel P Swivel castor with total lock Wheel-∅ x width [mm]: 100x30 Technische Daten Tragkraft kg 150 Bauhöhe H mm 128 Plattengröße TP mm 102x83 Lochabstand HS mm 80x60 Loch-Ø HD mm 9 Störkreisradius SR mm 108 Radlagerung Roller bearing PDF Data sheet 3D model (Cardenas Customer portal)
XF 100 PBX	Fixed castor	100x30	150	128	102x83	80x60	9		39,80
Stainless Steel Series XD, Wheel P Fixed castor Wheel-∅ x width [mm]: 100x30 Technische Daten Tragkraft kg 150 Bauhöhe H mm 128 Plattengröße TP mm 102x83 Lochabstand HS mm 80x60 Loch-Ø HD mm 9 Radlagerung Roller bearing PDF Data sheet 3D model (Cardenas Customer portal)
XD 100 PL	Swivel castor	100x30	150	128	102x83	80x60	9	88	46,70
Stainless Steel Series XD, Wheel P Swivel castor Wheel-∅ x width [mm]: 100x30 Technische Daten Tragkraft kg 150 Bauhöhe H mm 128 Plattengröße TP mm 102x83 Lochabstand HS mm 80x60 Loch-Ø HD mm 9 Störkreisradius SR mm 88 Radlagerung Nylon plain bearing PDF Data sheet 3D model (Cardenas Customer portal)
XDT 100 PL	Swivel castor with total lock	100x30	150	128	102x83	80x60	9	108	65,50
Stainless Steel Series XD, Wheel P Swivel castor with total lock Wheel-∅ x width [mm]: 100x30 Technische Daten Tragkraft kg 150 Bauhöhe H mm 128 Plattengröße TP mm 102x83 Lochabstand HS mm 80x60 Loch-Ø HD mm 9 Störkreisradius SR mm 108 Radlagerung Nylon plain bearing PDF Data sheet 3D model (Cardenas Customer portal)
XF 100 PL	Fixed castor	100x30	150	128	102x83	80x60	9		29,70
Stainless Steel Series XD, Wheel P Fixed castor Wheel-∅ x width [mm]: 100x30 Technische Daten Tragkraft kg 150 Bauhöhe H mm 128 Plattengröße TP mm 102x83 Lochabstand HS mm 80x60 Loch-Ø HD mm 9 Radlagerung Nylon plain bearing PDF Data sheet 3D model (Cardenas Customer portal)

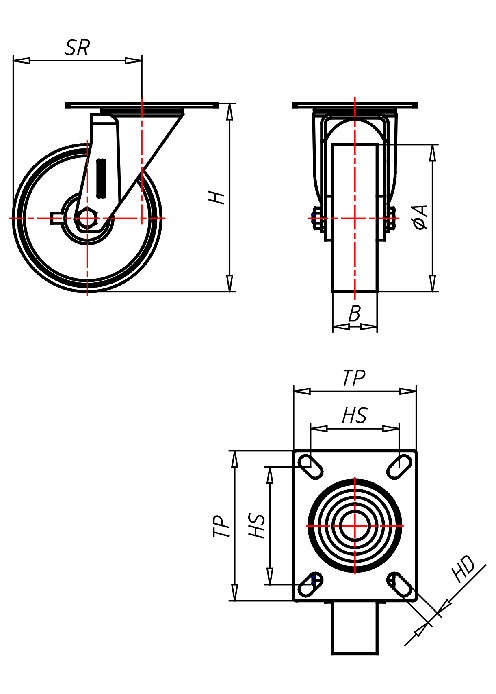

XD 125 PLLBX	Swivel castor	125x30	150	154	102x83	80x60	9	104	56,80
Stainless Steel Series XD, Wheel P Swivel castor Wheel-∅ x width [mm]: 125x30 Technische Daten Tragkraft kg 150 Bauhöhe H mm 154 Plattengröße TP mm 102x83 Lochabstand HS mm 80x60 Loch-Ø HD mm 9 Störkreisradius SR mm 104 Radlagerung Roller bearing PDF Data sheet 3D model (Cardenas Customer portal)
XDT 125 PLLBX	Swivel castor with total lock	125x30	150	154	102x83	80x60	9	108	80,00
Stainless Steel Series XD, Wheel P Swivel castor with total lock Wheel-∅ x width [mm]: 125x30 Technische Daten Tragkraft kg 150 Bauhöhe H mm 154 Plattengröße TP mm 102x83 Lochabstand HS mm 80x60 Loch-Ø HD mm 9 Störkreisradius SR mm 108 Radlagerung Roller bearing PDF Data sheet 3D model (Cardenas Customer portal)
XF 125 PLLBX	Fixed castor	125x30	150	154	102x83	80x60	9		40,10
Stainless Steel Series XD, Wheel P Fixed castor Wheel-∅ x width [mm]: 125x30 Technische Daten Tragkraft kg 150 Bauhöhe H mm 154 Plattengröße TP mm 102x83 Lochabstand HS mm 80x60 Loch-Ø HD mm 9 Radlagerung Roller bearing PDF Data sheet 3D model (Cardenas Customer portal)
XS 125 PBX	Swivel castor	125x40	250	160	102x83	80x60	9	113	87,00
Stainless Steel Series XD, Wheel P Swivel castor Wheel-∅ x width [mm]: 125x40 Technische Daten Tragkraft kg 250 Bauhöhe H mm 160 Plattengröße TP mm 102x83 Lochabstand HS mm 80x60 Loch-Ø HD mm 9 Störkreisradius SR mm 113 Radlagerung Roller bearing PDF Data sheet 3D model (Cardenas Customer portal)
XST 125 PBX	Swivel castor with total lock	125x40	250	160	102x83	80x60	9	140	110,90
Stainless Steel Series XD, Wheel P Swivel castor with total lock Wheel-∅ x width [mm]: 125x40 Technische Daten Tragkraft kg 250 Bauhöhe H mm 160 Plattengröße TP mm 102x83 Lochabstand HS mm 80x60 Loch-Ø HD mm 9 Störkreisradius SR mm 140 Radlagerung Roller bearing PDF Data sheet 3D model (Cardenas Customer portal)
XSF 125 PBX	Fixed castor	125x40	250	160	102x83	80x60	9		62,00
Stainless Steel Series XD, Wheel P Fixed castor Wheel-∅ x width [mm]: 125x40 Technische Daten Tragkraft kg 250 Bauhöhe H mm 160 Plattengröße TP mm 102x83 Lochabstand HS mm 80x60 Loch-Ø HD mm 9 Radlagerung Roller bearing PDF Data sheet 3D model (Cardenas Customer portal)
XSS 125 PBX	Swivel castor	125x40	250	160	135x110	105x80	11	113	94,60
Stainless Steel Series XD, Wheel P Swivel castor Wheel-∅ x width [mm]: 125x40 Technische Daten Tragkraft kg 250 Bauhöhe H mm 160 Plattengröße TP mm 135x110 Lochabstand HS mm 105x80 Loch-Ø HD mm 11 Störkreisradius SR mm 113 Radlagerung Roller bearing PDF Data sheet 3D model (Cardenas Customer portal)
XSST 125 PBX	Swivel castor with total lock	125x40	250	160	135x110	105x80	11	140	117,90
Stainless Steel Series XD, Wheel P Swivel castor with total lock Wheel-∅ x width [mm]: 125x40 Technische Daten Tragkraft kg 250 Bauhöhe H mm 160 Plattengröße TP mm 135x110 Lochabstand HS mm 105x80 Loch-Ø HD mm 11 Störkreisradius SR mm 140 Radlagerung Roller bearing PDF Data sheet 3D model (Cardenas Customer portal)
XSSF 125 PBX	Fixed castor	125x40	250	160	135x110	105x80	11		71,30
Stainless Steel Series XD, Wheel P Fixed castor Wheel-∅ x width [mm]: 125x40 Technische Daten Tragkraft kg 250 Bauhöhe H mm 160 Plattengröße TP mm 135x110 Lochabstand HS mm 105x80 Loch-Ø HD mm 11 Radlagerung Roller bearing PDF Data sheet 3D model (Cardenas Customer portal)
XD 125 PLL	Swivel castor	125x30	150	154	102x83	80x60	9	104	54,20
Stainless Steel Series XD, Wheel P Swivel castor Wheel-∅ x width [mm]: 125x30 Technische Daten Tragkraft kg 150 Bauhöhe H mm 154 Plattengröße TP mm 102x83 Lochabstand HS mm 80x60 Loch-Ø HD mm 9 Störkreisradius SR mm 104 Radlagerung Nylon plain bearing PDF Data sheet 3D model (Cardenas Customer portal)
XDT 125 PLL	Swivel castor with total lock	125x30	150	154	102x83	80x60	9	108	77,70
Stainless Steel Series XD, Wheel P Swivel castor with total lock Wheel-∅ x width [mm]: 125x30 Technische Daten Tragkraft kg 150 Bauhöhe H mm 154 Plattengröße TP mm 102x83 Lochabstand HS mm 80x60 Loch-Ø HD mm 9 Störkreisradius SR mm 108 Radlagerung Nylon plain bearing PDF Data sheet 3D model (Cardenas Customer portal)
XF 125 PLL	Fixed castor	125x30	150	154	102x83	80x60	9		37,70
Stainless Steel Series XD, Wheel P Fixed castor Wheel-∅ x width [mm]: 125x30 Technische Daten Tragkraft kg 150 Bauhöhe H mm 154 Plattengröße TP mm 102x83 Lochabstand HS mm 80x60 Loch-Ø HD mm 9 Radlagerung Nylon plain bearing PDF Data sheet 3D model (Cardenas Customer portal)
XS 125 PL	Swivel castor	125x40	225	160	102x83	80x60	9	113	67,00
Stainless Steel Series XD, Wheel P Swivel castor Wheel-∅ x width [mm]: 125x40 Technische Daten Tragkraft kg 225 Bauhöhe H mm 160 Plattengröße TP mm 102x83 Lochabstand HS mm 80x60 Loch-Ø HD mm 9 Störkreisradius SR mm 113 Radlagerung Nylon plain bearing PDF Data sheet 3D model (Cardenas Customer portal)
XST 125 PL	Swivel castor with total lock	125x40	225	160	102x83	80x60	9	140	89,00
Stainless Steel Series XD, Wheel P Swivel castor with total lock Wheel-∅ x width [mm]: 125x40 Technische Daten Tragkraft kg 225 Bauhöhe H mm 160 Plattengröße TP mm 102x83 Lochabstand HS mm 80x60 Loch-Ø HD mm 9 Störkreisradius SR mm 140 Radlagerung Nylon plain bearing PDF Data sheet 3D model (Cardenas Customer portal)
XSF 125 PL	Fixed castor	125x40	225	160	102x83	80x60	9		43,50
Stainless Steel Series XD, Wheel P Fixed castor Wheel-∅ x width [mm]: 125x40 Technische Daten Tragkraft kg 225 Bauhöhe H mm 160 Plattengröße TP mm 102x83 Lochabstand HS mm 80x60 Loch-Ø HD mm 9 Radlagerung Nylon plain bearing PDF Data sheet 3D model (Cardenas Customer portal)
XSS 125 PL	Swivel castor	125x40	225	160	135x110	105x80	11	113	75,80
Stainless Steel Series XD, Wheel P Swivel castor Wheel-∅ x width [mm]: 125x40 Technische Daten Tragkraft kg 225 Bauhöhe H mm 160 Plattengröße TP mm 135x110 Lochabstand HS mm 105x80 Loch-Ø HD mm 11 Störkreisradius SR mm 113 Radlagerung Nylon plain bearing PDF Data sheet 3D model (Cardenas Customer portal)
XSST 125 PL	Swivel castor with total lock	125x40	225	160	135x110	105x80	11	140	97,50
Stainless Steel Series XD, Wheel P Swivel castor with total lock Wheel-∅ x width [mm]: 125x40 Technische Daten Tragkraft kg 225 Bauhöhe H mm 160 Plattengröße TP mm 135x110 Lochabstand HS mm 105x80 Loch-Ø HD mm 11 Störkreisradius SR mm 140 Radlagerung Nylon plain bearing PDF Data sheet 3D model (Cardenas Customer portal)
XSSF 125 PL	Fixed castor	125x40	225	160	135x110	105x80	11		52,80
Stainless Steel Series XD, Wheel P Fixed castor Wheel-∅ x width [mm]: 125x40 Technische Daten Tragkraft kg 225 Bauhöhe H mm 160 Plattengröße TP mm 135x110 Lochabstand HS mm 105x80 Loch-Ø HD mm 11 Radlagerung Nylon plain bearing PDF Data sheet 3D model (Cardenas Customer portal)
XD 150 PBX	Swivel castor	150x40	250	181	135x110	105x80	11	128	99,10
Stainless Steel Series XD, Wheel P Swivel castor Wheel-∅ x width [mm]: 150x40 Technische Daten Tragkraft kg 250 Bauhöhe H mm 181 Plattengröße TP mm 135x110 Lochabstand HS mm 105x80 Loch-Ø HD mm 11 Störkreisradius SR mm 128 Radlagerung Roller bearing PDF Data sheet 3D model (Cardenas Customer portal)
XDT 150 PBX	Swivel castor with total lock	150x40	250	181	135x110	105x80	11	140	122,40
Stainless Steel Series XD, Wheel P Swivel castor with total lock Wheel-∅ x width [mm]: 150x40 Technische Daten Tragkraft kg 250 Bauhöhe H mm 181 Plattengröße TP mm 135x110 Lochabstand HS mm 105x80 Loch-Ø HD mm 11 Störkreisradius SR mm 140 Radlagerung Roller bearing PDF Data sheet 3D model (Cardenas Customer portal)
XF 150 PBX	Fixed castor	150x40	250	181	135x110	105x80	11		74,80
Stainless Steel Series XD, Wheel P Fixed castor Wheel-∅ x width [mm]: 150x40 Technische Daten Tragkraft kg 250 Bauhöhe H mm 181 Plattengröße TP mm 135x110 Lochabstand HS mm 105x80 Loch-Ø HD mm 11 Radlagerung Roller bearing PDF Data sheet 3D model (Cardenas Customer portal)
XL 150 PBX	Swivel castor	150x40	250	181	102x83	80x60	9	128	94,10
Stainless Steel Series XD, Wheel P Swivel castor Wheel-∅ x width [mm]: 150x40 Technische Daten Tragkraft kg 250 Bauhöhe H mm 181 Plattengröße TP mm 102x83 Lochabstand HS mm 80x60 Loch-Ø HD mm 9 Störkreisradius SR mm 128 Radlagerung Roller bearing PDF Data sheet 3D model (Cardenas Customer portal)
XLT 150 PBX	Swivel castor with total lock	150x40	250	181	102x83	80x60	9	140	117,40
Stainless Steel Series XD, Wheel P Swivel castor with total lock Wheel-∅ x width [mm]: 150x40 Technische Daten Tragkraft kg 250 Bauhöhe H mm 181 Plattengröße TP mm 102x83 Lochabstand HS mm 80x60 Loch-Ø HD mm 9 Störkreisradius SR mm 140 Radlagerung Roller bearing PDF Data sheet 3D model (Cardenas Customer portal)
XLF 150 PBX	Fixed castor	150x40	250	181	102x83	80x60	9		69,50
Stainless Steel Series XD, Wheel P Fixed castor Wheel-∅ x width [mm]: 150x40 Technische Daten Tragkraft kg 250 Bauhöhe H mm 181 Plattengröße TP mm 102x83 Lochabstand HS mm 80x60 Loch-Ø HD mm 9 Radlagerung Roller bearing PDF Data sheet 3D model (Cardenas Customer portal)
XD 150 PL	Swivel castor	150x40	250	181	135x110	105x80	11	128	79,90
Stainless Steel Series XD, Wheel P Swivel castor Wheel-∅ x width [mm]: 150x40 Technische Daten Tragkraft kg 250 Bauhöhe H mm 181 Plattengröße TP mm 135x110 Lochabstand HS mm 105x80 Loch-Ø HD mm 11 Störkreisradius SR mm 128 Radlagerung Nylon plain bearing PDF Data sheet 3D model (Cardenas Customer portal)
XDT 150 PL	Swivel castor with total lock	150x40	250	181	135x110	105x80	11	140	103,40
Stainless Steel Series XD, Wheel P Swivel castor with total lock Wheel-∅ x width [mm]: 150x40 Technische Daten Tragkraft kg 250 Bauhöhe H mm 181 Plattengröße TP mm 135x110 Lochabstand HS mm 105x80 Loch-Ø HD mm 11 Störkreisradius SR mm 140 Radlagerung Nylon plain bearing PDF Data sheet 3D model (Cardenas Customer portal)
XF 150 PL	Fixed castor	150x40	250	181	135x110	105x80	11		55,30
Stainless Steel Series XD, Wheel P Fixed castor Wheel-∅ x width [mm]: 150x40 Technische Daten Tragkraft kg 250 Bauhöhe H mm 181 Plattengröße TP mm 135x110 Lochabstand HS mm 105x80 Loch-Ø HD mm 11 Radlagerung Nylon plain bearing PDF Data sheet 3D model (Cardenas Customer portal)
XL 150 PL	Swivel castor	150x40	250	181	102x83	80x60	9	128	74,50
Stainless Steel Series XD, Wheel P Swivel castor Wheel-∅ x width [mm]: 150x40 Technische Daten Tragkraft kg 250 Bauhöhe H mm 181 Plattengröße TP mm 102x83 Lochabstand HS mm 80x60 Loch-Ø HD mm 9 Störkreisradius SR mm 128 Radlagerung Nylon plain bearing PDF Data sheet 3D model (Cardenas Customer portal)
XLT 150 PL	Swivel castor with total lock	150x40	250	181	102x83	80x60	9	140	98,10
Stainless Steel Series XD, Wheel P Swivel castor with total lock Wheel-∅ x width [mm]: 150x40 Technische Daten Tragkraft kg 250 Bauhöhe H mm 181 Plattengröße TP mm 102x83 Lochabstand HS mm 80x60 Loch-Ø HD mm 9 Störkreisradius SR mm 140 Radlagerung Nylon plain bearing PDF Data sheet 3D model (Cardenas Customer portal)
XLF 150 PL	Fixed castor	150x40	250	181	102x83	80x60	9		49,60
Stainless Steel Series XD, Wheel P Fixed castor Wheel-∅ x width [mm]: 150x40 Technische Daten Tragkraft kg 250 Bauhöhe H mm 181 Plattengröße TP mm 102x83 Lochabstand HS mm 80x60 Loch-Ø HD mm 9 Radlagerung Nylon plain bearing PDF Data sheet 3D model (Cardenas Customer portal)
XD 175 PBX	Swivel castor	175x50	370	216	135x110	105x80	11	147	151,10
Stainless Steel Series XD, Wheel P Swivel castor Wheel-∅ x width [mm]: 175x50 Technische Daten Tragkraft kg 370 Bauhöhe H mm 216 Plattengröße TP mm 135x110 Lochabstand HS mm 105x80 Loch-Ø HD mm 11 Störkreisradius SR mm 147 Radlagerung Roller bearing PDF Data sheet 3D model (Cardenas Customer portal)
XDT 175 PBX	Swivel castor with total lock	175x50	370	216	135x110	105x80	11	168	186,80
Stainless Steel Series XD, Wheel P Swivel castor with total lock Wheel-∅ x width [mm]: 175x50 Technische Daten Tragkraft kg 370 Bauhöhe H mm 216 Plattengröße TP mm 135x110 Lochabstand HS mm 105x80 Loch-Ø HD mm 11 Störkreisradius SR mm 168 Radlagerung Roller bearing PDF Data sheet 3D model (Cardenas Customer portal)
XF 175 PBX	Fixed castor	175x50	370	216	135x110	105x80	11		114,10
Stainless Steel Series XD, Wheel P Fixed castor Wheel-∅ x width [mm]: 175x50 Technische Daten Tragkraft kg 370 Bauhöhe H mm 216 Plattengröße TP mm 135x110 Lochabstand HS mm 105x80 Loch-Ø HD mm 11 Radlagerung Roller bearing PDF Data sheet 3D model (Cardenas Customer portal)
XD 175 P	Swivel castor	175x50	370	216	135x110	105x80	11	147	121,30
Stainless Steel Series XD, Wheel P Swivel castor Wheel-∅ x width [mm]: 175x50 Technische Daten Tragkraft kg 370 Bauhöhe H mm 216 Plattengröße TP mm 135x110 Lochabstand HS mm 105x80 Loch-Ø HD mm 11 Störkreisradius SR mm 147 Radlagerung Nylon plain bearing PDF Data sheet 3D model (Cardenas Customer portal)
XDT 175 P	Swivel castor with total lock	175x50	370	216	135x110	105x80	11	168	158,00
Stainless Steel Series XD, Wheel P Swivel castor with total lock Wheel-∅ x width [mm]: 175x50 Technische Daten Tragkraft kg 370 Bauhöhe H mm 216 Plattengröße TP mm 135x110 Lochabstand HS mm 105x80 Loch-Ø HD mm 11 Störkreisradius SR mm 168 Radlagerung Nylon plain bearing PDF Data sheet 3D model (Cardenas Customer portal)
XF 175 P	Fixed castor	175x50	370	216	135x110	105x80	11		84,70
Stainless Steel Series XD, Wheel P Fixed castor Wheel-∅ x width [mm]: 175x50 Technische Daten Tragkraft kg 370 Bauhöhe H mm 216 Plattengröße TP mm 135x110 Lochabstand HS mm 105x80 Loch-Ø HD mm 11 Radlagerung Nylon plain bearing PDF Data sheet 3D model (Cardenas Customer portal)
XD 200 PBX	Swivel castor	200x50	370	240	135x110	105x80	11	161	157,50
Stainless Steel Series XD, Wheel P Swivel castor Wheel-∅ x width [mm]: 200x50 Technische Daten Tragkraft kg 370 Bauhöhe H mm 240 Plattengröße TP mm 135x110 Lochabstand HS mm 105x80 Loch-Ø HD mm 11 Störkreisradius SR mm 161 Radlagerung Roller bearing PDF Data sheet 3D model (Cardenas Customer portal)

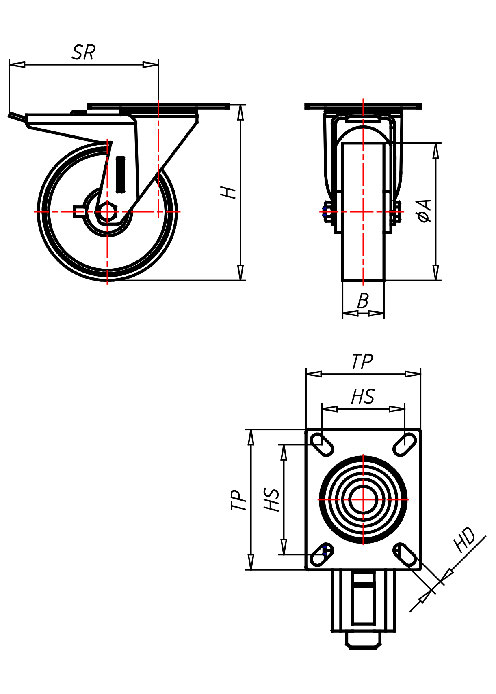

XDT 200 PBX	Swivel castor with total lock	200x50	370	240	135x110	105x80	11	168	193,30
Stainless Steel Series XD, Wheel P Swivel castor with total lock Wheel-∅ x width [mm]: 200x50 Technische Daten Tragkraft kg 370 Bauhöhe H mm 240 Plattengröße TP mm 135x110 Lochabstand HS mm 105x80 Loch-Ø HD mm 11 Störkreisradius SR mm 168 Radlagerung Roller bearing PDF Data sheet 3D model (Cardenas Customer portal)
XF 200 PBX	Fixed castor	200x50	370	240	135x110	105x80	11		120,00
Stainless Steel Series XD, Wheel P Fixed castor Wheel-∅ x width [mm]: 200x50 Technische Daten Tragkraft kg 370 Bauhöhe H mm 240 Plattengröße TP mm 135x110 Lochabstand HS mm 105x80 Loch-Ø HD mm 11 Radlagerung Roller bearing PDF Data sheet 3D model (Cardenas Customer portal)
XD 200 P	Swivel castor	200x50	370	240	135x110	105x80	11	161	128,90
Stainless Steel Series XD, Wheel P Swivel castor Wheel-∅ x width [mm]: 200x50 Technische Daten Tragkraft kg 370 Bauhöhe H mm 240 Plattengröße TP mm 135x110 Lochabstand HS mm 105x80 Loch-Ø HD mm 11 Störkreisradius SR mm 161 Radlagerung Nylon plain bearing PDF Data sheet 3D model (Cardenas Customer portal)
XDT 200 P	Swivel castor with total lock	200x50	370	240	135x110	105x80	11	168	165,10
Stainless Steel Series XD, Wheel P Swivel castor with total lock Wheel-∅ x width [mm]: 200x50 Technische Daten Tragkraft kg 370 Bauhöhe H mm 240 Plattengröße TP mm 135x110 Lochabstand HS mm 105x80 Loch-Ø HD mm 11 Störkreisradius SR mm 168 Radlagerung Nylon plain bearing PDF Data sheet 3D model (Cardenas Customer portal)
XF 200 P	Fixed castor	200x50	370	240	135x110	105x80	11		91,80
Stainless Steel Series XD, Wheel P Fixed castor Wheel-∅ x width [mm]: 200x50 Technische Daten Tragkraft kg 370 Bauhöhe H mm 240 Plattengröße TP mm 135x110 Lochabstand HS mm 105x80 Loch-Ø HD mm 11 Radlagerung Nylon plain bearing PDF Data sheet 3D model (Cardenas Customer portal)

Suitable accessories

Fixing Bolt STAINLESS STEEL M8x20 mm
Art.No. M 8X20 INOX

Edelstahl
Edelstahl V2A
M8x20

Qty € 0,30/Pc., exkl. Shipping
Fixing Bolt STAINLESS STEEL M10x20 mm
Art.No. M 10X20 INOX

Edelstahl
Edelstahl V2A
M10x20

Qty € 0,70/Pc., exkl. Shipping
Foot guard stainless steel and PU
Art.No. FUSSSCHUTZ PU

Qty € auf Anfrage/Pc., exkl. Shipping
