Heavy Duty Series PD, Wheel AEL

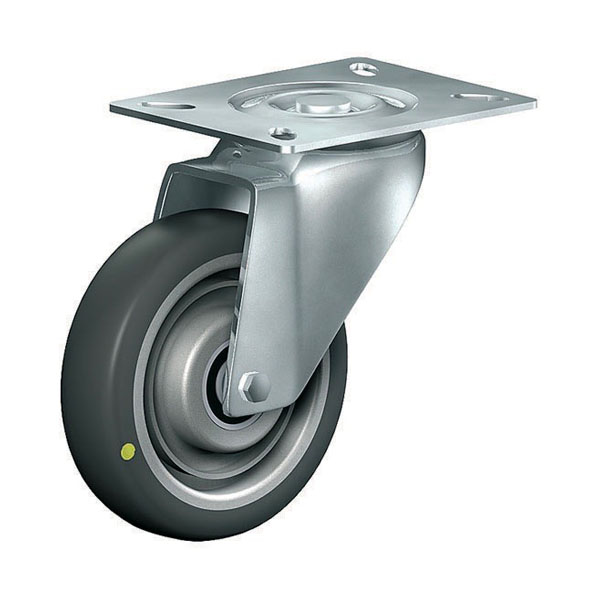

  • Swivel Castor Heavy Duty Series PD, Wheel AEL

    SWIVEL CASTOR

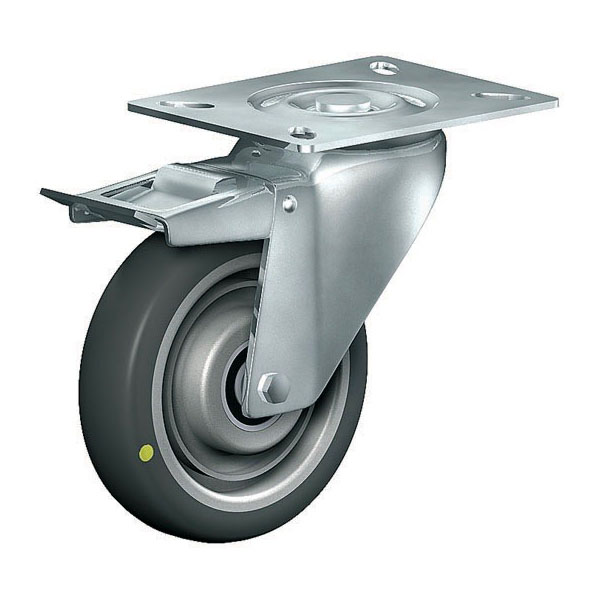

  • Swivel Castor With Total Lock Heavy Duty Series PD, Wheel AEL

    SWIVEL CASTOR WITH TOTAL LOCK

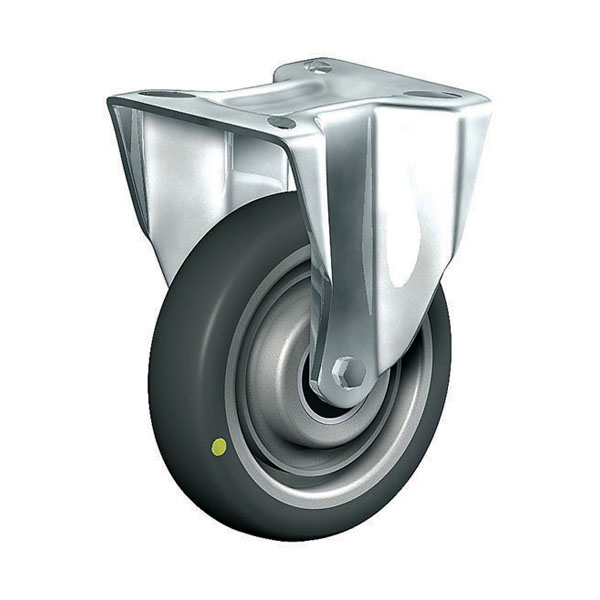

  • Fixed Castor Heavy Duty Series PD, Wheel AEL

    FIXED CASTOR

Select the required versions in order to show them already filtered in the following table.

Heavy Duty Series PD, Wheel AELelectrically conductive

PDF product sheet
  • max 500 kg
  • -20 °C - +80 °C
  • 80-200 mm
  • ++
    swivels easily
  • +++
    wear resistant
  • +++
    shock proof
  • +++
    floor protective
  • ++
    weather proof
  • Swivel Castor Heavy Duty Series PD, Wheel AEL

    Swivel Castor

  • Swivel Castor With Total Lock Heavy Duty Series PD, Wheel AEL

    Swivel Castor With Total Lock

  • Fixed Castor Heavy Duty Series PD, Wheel AEL

    Fixed Castor

Select the required versions in order to show them already filtered in the following table.

Description

Advantages

  • electrically conductive
  • silent in motion
  • low rolling resistance
  • non-marking
  • high resistance to shocks
  • good chemical resistance

Applications

  • Heavy duty dollies
  • Machinery moving dollies
  • Scaffolds
  • Racks

Material

Material

coated in polyurethane, 90±3 Shore A elecrically conductive <104Ω
High quality nylon wheel centre

Fork material

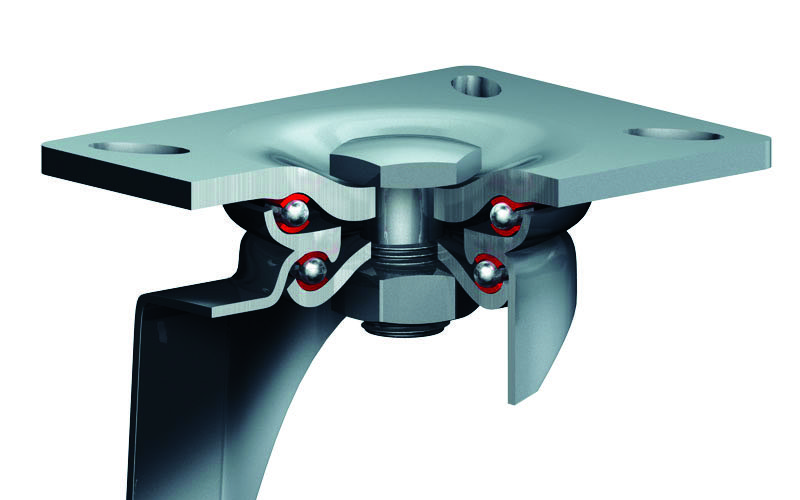

Finish: electro-zinc plated, hardened steel balls, double ball race – hardened steel sheet, with strong Kingpin bolted and locked – adjustable, thermoplastic dust protection ring and seal, wheel axle bolted, adjustable total lock – leading or trailing available

Documents/CAD

Cadenas Partcommunity-Portal

For a PDF with the technical description and detailed 3D CAD plans, please select the desired version. You can then download a PDF with the technical description or access detailed 3D CAD plans via our Cadenas Partcommunity portal.

The models have been carefully designed and validated for correctness. However, we take no responsibility for any incorrect or incomplete data.

Select version

Select version

14 of 14 items in this series are displayed.

Article number Articel type Price € QTY
PD 80 AELK

Heavy Duty Series PD, Wheel AEL

Swivel castor Wheel-∅ x width [mm]: 80x32

Heavy Duty Series PD, Wheel AEL

Technische Daten

  • Tragkraft kg 130
  • Bauhöhe H mm 128
  • Plattengröße TP mm 105x85
  • Lochabstand HS mm 80x60
  • Loch-Ø HD mm 8,5
  • Störkreisradius SR mm 84
  • Radlagerung Ball bearing
PDF 80 AELK

Heavy Duty Series PD, Wheel AEL

Fixed castor Wheel-∅ x width [mm]: 80x32

Heavy Duty Series PD, Wheel AEL

Technische Daten

  • Tragkraft kg 130
  • Bauhöhe H mm 128
  • Plattengröße TP mm 105x85
  • Lochabstand HS mm 80x60
  • Loch-Ø HD mm 8,5
  • Radlagerung Ball bearing
PD 102 AELK

Heavy Duty Series PD, Wheel AEL

Swivel castor Wheel-∅ x width [mm]: 100x32

Heavy Duty Series PD, Wheel AEL

Technische Daten

  • Tragkraft kg 150
  • Bauhöhe H mm 138
  • Plattengröße TP mm 105x85
  • Lochabstand HS mm 80x60
  • Loch-Ø HD mm 8,5
  • Störkreisradius SR mm 93
  • Radlagerung Ball bearing

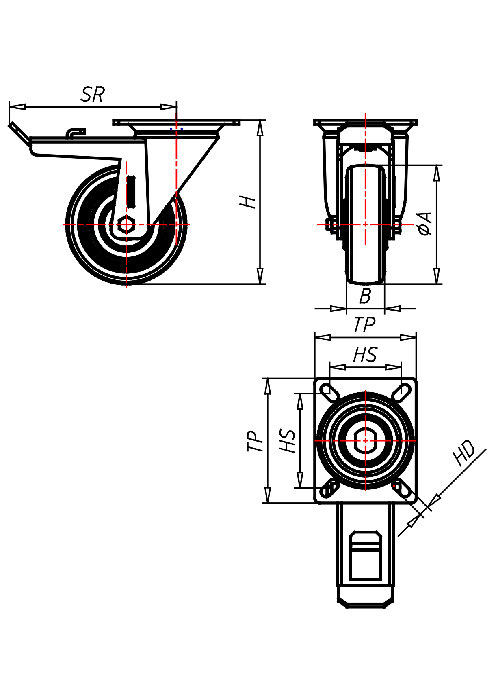

PDT 102 AELK

Heavy Duty Series PD, Wheel AEL

Swivel castor with total lock Wheel-∅ x width [mm]: 100x32

Heavy Duty Series PD, Wheel AEL

Technische Daten

  • Tragkraft kg 150
  • Bauhöhe H mm 138
  • Plattengröße TP mm 105x85
  • Lochabstand HS mm 80x60
  • Loch-Ø HD mm 8,5
  • Störkreisradius SR mm 140
  • Radlagerung Ball bearing
PDF 102 AELK

Heavy Duty Series PD, Wheel AEL

Fixed castor Wheel-∅ x width [mm]: 100x32

Heavy Duty Series PD, Wheel AEL

Technische Daten

  • Tragkraft kg 150
  • Bauhöhe H mm 138
  • Plattengröße TP mm 105x85
  • Lochabstand HS mm 80x60
  • Loch-Ø HD mm 8,5
  • Radlagerung Ball bearing
PD 125 AELK

Heavy Duty Series PD, Wheel AEL

Swivel castor Wheel-∅ x width [mm]: 125x46

Heavy Duty Series PD, Wheel AEL

Technische Daten

  • Tragkraft kg 400
  • Bauhöhe H mm 164
  • Plattengröße TP mm 135x110
  • Lochabstand HS mm 105x80
  • Loch-Ø HD mm 10,5
  • Störkreisradius SR mm 107
  • Radlagerung Ball bearing
PDT 125 AELK

Heavy Duty Series PD, Wheel AEL

Swivel castor with total lock Wheel-∅ x width [mm]: 125x46

Heavy Duty Series PD, Wheel AEL

Technische Daten

  • Tragkraft kg 400
  • Bauhöhe H mm 164
  • Plattengröße TP mm 135x110
  • Lochabstand HS mm 105x80
  • Loch-Ø HD mm 10,5
  • Störkreisradius SR mm 140
  • Radlagerung Ball bearing

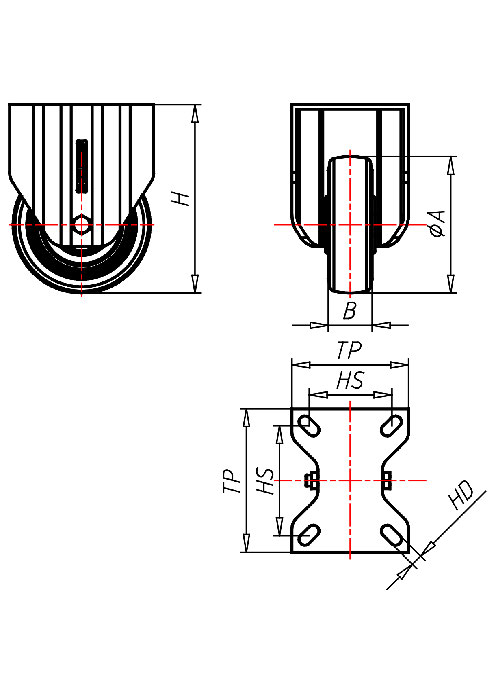

PDF 125 AELK

Heavy Duty Series PD, Wheel AEL

Fixed castor Wheel-∅ x width [mm]: 125x46

Heavy Duty Series PD, Wheel AEL

Technische Daten

  • Tragkraft kg 400
  • Bauhöhe H mm 164
  • Plattengröße TP mm 135x110
  • Lochabstand HS mm 105x80
  • Loch-Ø HD mm 10,5
  • Radlagerung Ball bearing
PD 160 AELK

Heavy Duty Series PD, Wheel AEL

Swivel castor Wheel-∅ x width [mm]: 160x46

Heavy Duty Series PD, Wheel AEL

Technische Daten

  • Tragkraft kg 450
  • Bauhöhe H mm 200
  • Plattengröße TP mm 135x110
  • Lochabstand HS mm 105x80
  • Loch-Ø HD mm 10,5
  • Störkreisradius SR mm 130
  • Radlagerung Ball bearing
PDT 160 ALELK

Heavy Duty Series PD, Wheel AEL

Swivel castor with total lock Wheel-∅ x width [mm]: 160x46

Heavy Duty Series PD, Wheel AEL

Technische Daten

  • Tragkraft kg 450
  • Bauhöhe H mm 200
  • Plattengröße TP mm 135x110
  • Lochabstand HS mm 105x80
  • Loch-Ø HD mm 10,5
  • Störkreisradius SR mm 140
  • Radlagerung Ball bearing
PDF 160 ALELK

Heavy Duty Series PD, Wheel AEL

Fixed castor Wheel-∅ x width [mm]: 160x46

Heavy Duty Series PD, Wheel AEL

Technische Daten

  • Tragkraft kg 450
  • Bauhöhe H mm 200
  • Plattengröße TP mm 135x110
  • Lochabstand HS mm 105x80
  • Loch-Ø HD mm 10,5
  • Radlagerung Ball bearing

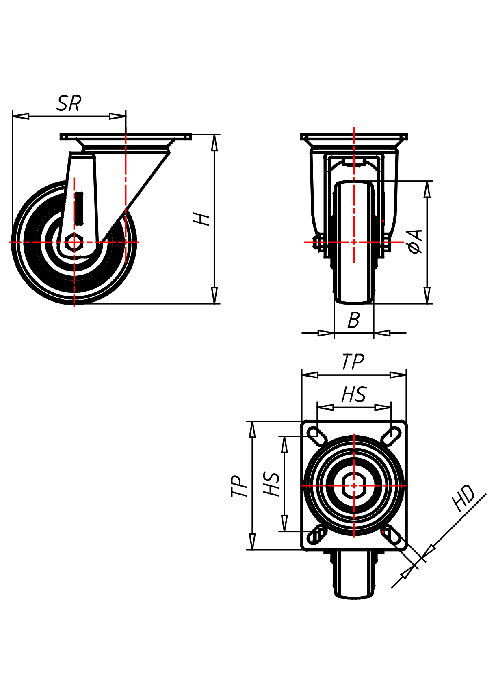

PD 200 AELK

Heavy Duty Series PD, Wheel AEL

Swivel castor Wheel-∅ x width [mm]: 200x50

Heavy Duty Series PD, Wheel AEL

Technische Daten

  • Tragkraft kg 500
  • Bauhöhe H mm 250
  • Plattengröße TP mm 135x110
  • Lochabstand HS mm 105x80
  • Loch-Ø HD mm 12,5
  • Störkreisradius SR mm 167
  • Radlagerung Ball bearing
PDT 200 AELK

Heavy Duty Series PD, Wheel AEL

Swivel castor with total lock Wheel-∅ x width [mm]: 200x50

Heavy Duty Series PD, Wheel AEL

Technische Daten

  • Tragkraft kg 500
  • Bauhöhe H mm 250
  • Plattengröße TP mm 135x110
  • Lochabstand HS mm 105x80
  • Loch-Ø HD mm 12,5
  • Störkreisradius SR mm 170
  • Radlagerung Ball bearing
PDF 200 AELK

Heavy Duty Series PD, Wheel AEL

Fixed castor Wheel-∅ x width [mm]: 200x50

Heavy Duty Series PD, Wheel AEL

Technische Daten

  • Tragkraft kg 500
  • Bauhöhe H mm 250
  • Plattengröße TP mm 135x110
  • Lochabstand HS mm 105x80
  • Loch-Ø HD mm 12,5
  • Radlagerung Ball bearing
