Stainless Steel Series IN, Wheel P

 PDF product sheet

max 250 kg
-30 °C - +80 °C
80-200 mm

++

swivels easily
+++

wear resistant
++

shock proof
++

floor protective
+++

weather proof

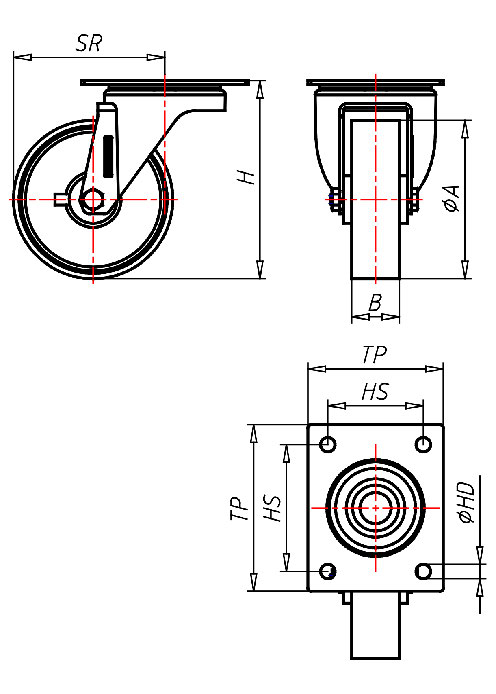

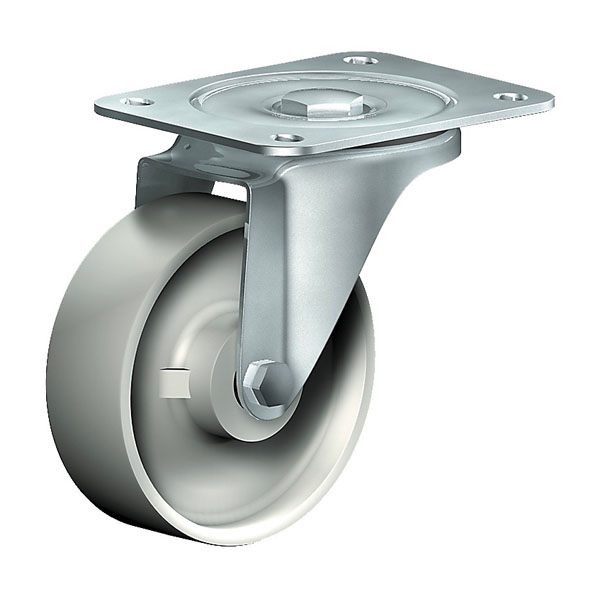

Swivel Castor

Show dimensions

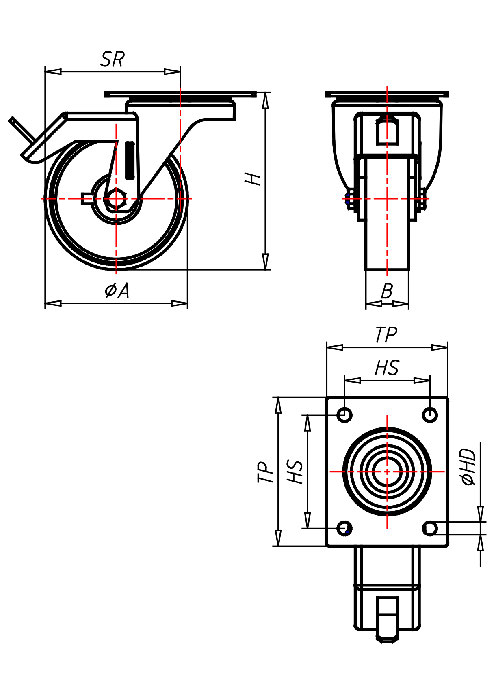

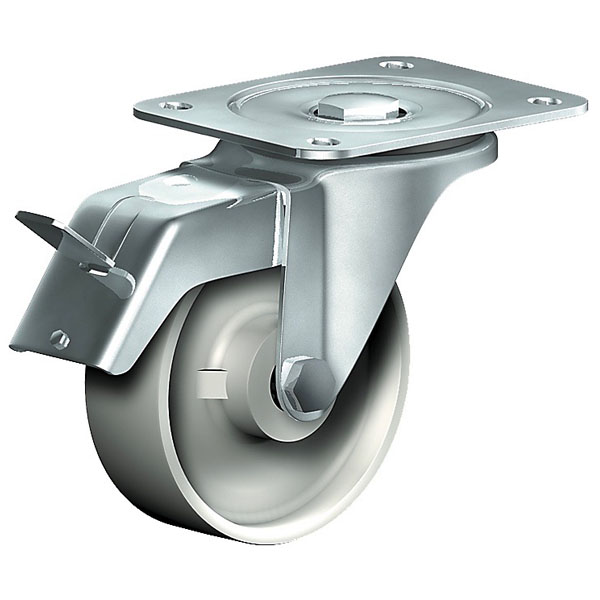

Swivel Castor With Total Lock

Show dimensions

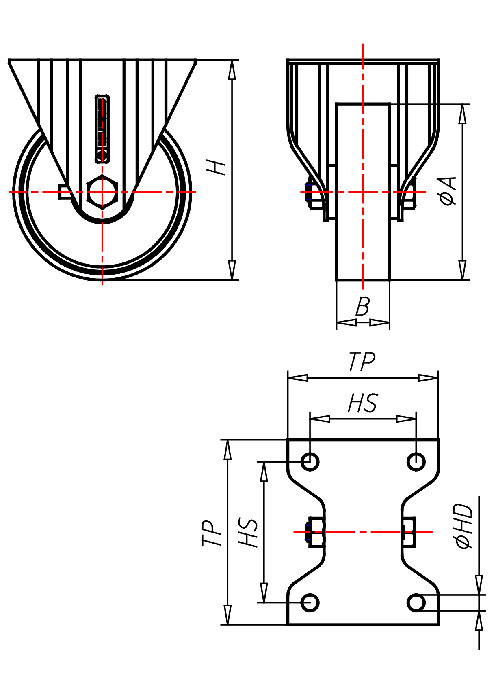

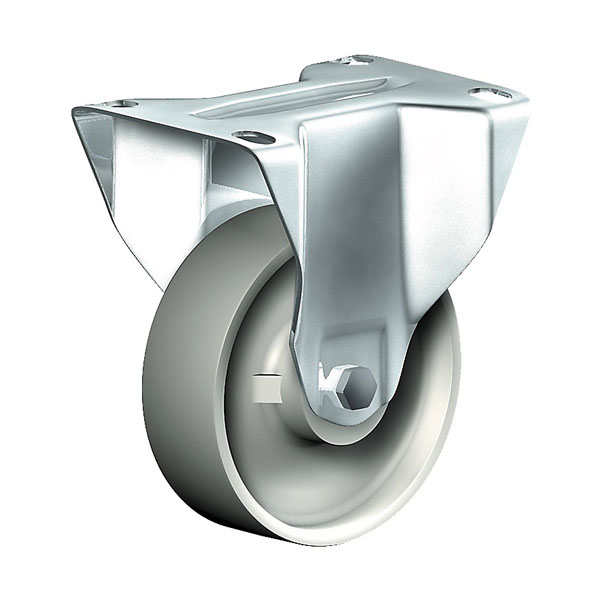

Fixed Castor

Show dimensions

Select the required versions in order to show them already filtered in the following table.

Advantages

easy running on smooth floors
impact proof
high abrasion resistance
easy to clean
high chemical resistance

Applications

Wet environments
Dollies

Material

Casted high quality nylon wheel

Fork material

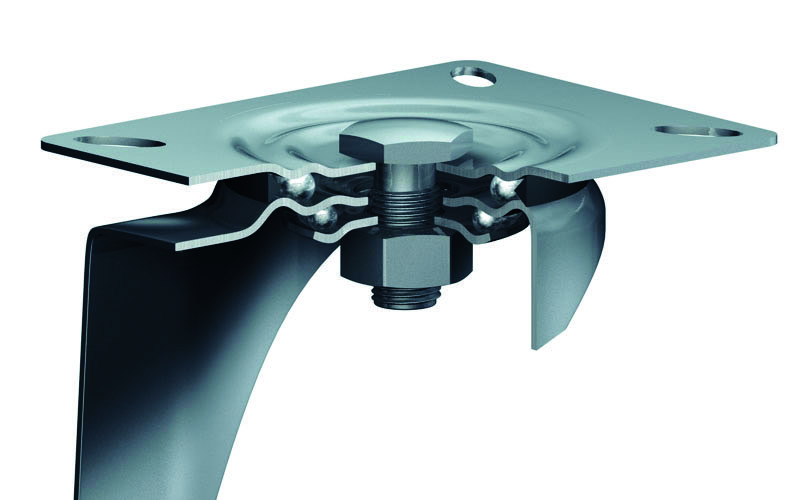

Finish: Polished stainless steel, swivel fork with top plate, double ball bearing – bolted, with dust protection ring, wheel axle bolted – locked, adjustable total lock

Cadenas Partcommunity-Portal

For a PDF with the technical description and detailed 3D CAD plans, please select the desired version. You can then download a PDF with the technical description or access detailed 3D CAD plans via our Cadenas Partcommunity portal.

The models have been carefully designed and validated for correctness. However, we take no responsibility for any incorrect or incomplete data.

Select version

42 of 42 items in this series are displayed.

Article number	Articel type	Wheel-Ø A x width B mm	Load Capacity kg	Overall height H mm	Dimension of top plate TP mm	Hole spacing HS mm	Hole-Ø HD mm	Swivel radius SR mm
IN 80 PBX	Swivel castor	80x24	120	100	105x85	80x60	9	81
Stainless Steel Series IN, Wheel P Swivel castor Wheel-∅ x width [mm]: 80x24 Technische Daten Tragkraft kg 120 Bauhöhe H mm 100 Plattengröße TP mm 105x85 Lochabstand HS mm 80x60 Loch-Ø HD mm 9 Störkreisradius SR mm 81 Radlagerung Roller bearing PDF Data sheet 3D model (Cardenas Customer portal)
INT 80 PBX	Swivel castor with total lock	80x24	120	100	105x85	80x60	9	115
Stainless Steel Series IN, Wheel P Swivel castor with total lock Wheel-∅ x width [mm]: 80x24 Technische Daten Tragkraft kg 120 Bauhöhe H mm 100 Plattengröße TP mm 105x85 Lochabstand HS mm 80x60 Loch-Ø HD mm 9 Störkreisradius SR mm 115 Radlagerung Roller bearing
INF 80 PBX	Fixed castor	80x24	120	100	105x85	80x60	9
Stainless Steel Series IN, Wheel P Fixed castor Wheel-∅ x width [mm]: 80x24 Technische Daten Tragkraft kg 120 Bauhöhe H mm 100 Plattengröße TP mm 105x85 Lochabstand HS mm 80x60 Loch-Ø HD mm 9 Radlagerung Roller bearing PDF Data sheet 3D model (Cardenas Customer portal)
IN 80 P	Swivel castor	80x24	120	100	105x85	80x60	9	81
Stainless Steel Series IN, Wheel P Swivel castor Wheel-∅ x width [mm]: 80x24 Technische Daten Tragkraft kg 120 Bauhöhe H mm 100 Plattengröße TP mm 105x85 Lochabstand HS mm 80x60 Loch-Ø HD mm 9 Störkreisradius SR mm 81 Radlagerung Nylon plain bearing PDF Data sheet 3D model (Cardenas Customer portal)
INT 80 P	Swivel castor with total lock	80x24	120	100	105x85	80x60	9	115
Stainless Steel Series IN, Wheel P Swivel castor with total lock Wheel-∅ x width [mm]: 80x24 Technische Daten Tragkraft kg 120 Bauhöhe H mm 100 Plattengröße TP mm 105x85 Lochabstand HS mm 80x60 Loch-Ø HD mm 9 Störkreisradius SR mm 115 Radlagerung Nylon plain bearing PDF Data sheet 3D model (Cardenas Customer portal)
INF 80 P	Fixed castor	80x24	120	100	105x85	80x60	9
Stainless Steel Series IN, Wheel P Fixed castor Wheel-∅ x width [mm]: 80x24 Technische Daten Tragkraft kg 120 Bauhöhe H mm 100 Plattengröße TP mm 105x85 Lochabstand HS mm 80x60 Loch-Ø HD mm 9 Radlagerung Nylon plain bearing
INV 100 PBX	Swivel castor	100x30	175	125	135x110	105x80	11	101
Stainless Steel Series IN, Wheel P Swivel castor Wheel-∅ x width [mm]: 100x30 Technische Daten Tragkraft kg 175 Bauhöhe H mm 125 Plattengröße TP mm 135x110 Lochabstand HS mm 105x80 Loch-Ø HD mm 11 Störkreisradius SR mm 101 Radlagerung Roller bearing PDF Data sheet 3D model (Cardenas Customer portal)
INVT 100 PBX	Swivel castor with total lock	100x30	175	125	135x110	105x80	11	150
Stainless Steel Series IN, Wheel P Swivel castor with total lock Wheel-∅ x width [mm]: 100x30 Technische Daten Tragkraft kg 175 Bauhöhe H mm 125 Plattengröße TP mm 135x110 Lochabstand HS mm 105x80 Loch-Ø HD mm 11 Störkreisradius SR mm 150 Radlagerung Roller bearing PDF Data sheet 3D model (Cardenas Customer portal)
INVF 100 PBX	Fixed castor	100x30	175	125	135x110	105x80	11
Stainless Steel Series IN, Wheel P Fixed castor Wheel-∅ x width [mm]: 100x30 Technische Daten Tragkraft kg 175 Bauhöhe H mm 125 Plattengröße TP mm 135x110 Lochabstand HS mm 105x80 Loch-Ø HD mm 11 Radlagerung Roller bearing PDF Data sheet 3D model (Cardenas Customer portal)
IN 100 PBX	Swivel castor	100x30	125	125	105x85	80x60	9	91
Stainless Steel Series IN, Wheel P Swivel castor Wheel-∅ x width [mm]: 100x30 Technische Daten Tragkraft kg 125 Bauhöhe H mm 125 Plattengröße TP mm 105x85 Lochabstand HS mm 80x60 Loch-Ø HD mm 9 Störkreisradius SR mm 91 Radlagerung Roller bearing PDF Data sheet 3D model (Cardenas Customer portal)
INT 100 PBX	Swivel castor with total lock	100x30	125	125	105x85	80x60	9	120
Stainless Steel Series IN, Wheel P Swivel castor with total lock Wheel-∅ x width [mm]: 100x30 Technische Daten Tragkraft kg 125 Bauhöhe H mm 125 Plattengröße TP mm 105x85 Lochabstand HS mm 80x60 Loch-Ø HD mm 9 Störkreisradius SR mm 120 Radlagerung Roller bearing PDF Data sheet 3D model (Cardenas Customer portal)
INF 100 PBX	Fixed castor	100x30	125	125	105x85	80x60	9
Stainless Steel Series IN, Wheel P Fixed castor Wheel-∅ x width [mm]: 100x30 Technische Daten Tragkraft kg 125 Bauhöhe H mm 125 Plattengröße TP mm 105x85 Lochabstand HS mm 80x60 Loch-Ø HD mm 9 Radlagerung Roller bearing PDF Data sheet 3D model (Cardenas Customer portal)
INV 101 P	Swivel castor	100x30	250	125	135x110	105x80	11	101
Stainless Steel Series IN, Wheel P Swivel castor Wheel-∅ x width [mm]: 100x30 Technische Daten Tragkraft kg 250 Bauhöhe H mm 125 Plattengröße TP mm 135x110 Lochabstand HS mm 105x80 Loch-Ø HD mm 11 Störkreisradius SR mm 101 Radlagerung Nylon plain bearing PDF Data sheet 3D model (Cardenas Customer portal)
INVT 101 P	Swivel castor with total lock	100x30	250	125	135x110	105x80	11	150
Stainless Steel Series IN, Wheel P Swivel castor with total lock Wheel-∅ x width [mm]: 100x30 Technische Daten Tragkraft kg 250 Bauhöhe H mm 125 Plattengröße TP mm 135x110 Lochabstand HS mm 105x80 Loch-Ø HD mm 11 Störkreisradius SR mm 150 Radlagerung Nylon plain bearing PDF Data sheet 3D model (Cardenas Customer portal)
INVF 101 P	Fixed castor	100x30	250	125	135x110	105x80	11
Stainless Steel Series IN, Wheel P Fixed castor Wheel-∅ x width [mm]: 100x30 Technische Daten Tragkraft kg 250 Bauhöhe H mm 125 Plattengröße TP mm 135x110 Lochabstand HS mm 105x80 Loch-Ø HD mm 11 Radlagerung Nylon plain bearing PDF Data sheet 3D model (Cardenas Customer portal)
IN 100 P	Swivel castor	100x30	125	125	105x85	80x60	9	91
Stainless Steel Series IN, Wheel P Swivel castor Wheel-∅ x width [mm]: 100x30 Technische Daten Tragkraft kg 125 Bauhöhe H mm 125 Plattengröße TP mm 105x85 Lochabstand HS mm 80x60 Loch-Ø HD mm 9 Störkreisradius SR mm 91 Radlagerung Nylon plain bearing PDF Data sheet 3D model (Cardenas Customer portal)
INT 100 P	Swivel castor with total lock	100x30	125	125	105x85	80x60	9	120
Stainless Steel Series IN, Wheel P Swivel castor with total lock Wheel-∅ x width [mm]: 100x30 Technische Daten Tragkraft kg 125 Bauhöhe H mm 125 Plattengröße TP mm 105x85 Lochabstand HS mm 80x60 Loch-Ø HD mm 9 Störkreisradius SR mm 120 Radlagerung Nylon plain bearing PDF Data sheet 3D model (Cardenas Customer portal)
INF 100 P	Fixed castor	100x30	125	125	105x85	80x60	9
Stainless Steel Series IN, Wheel P Fixed castor Wheel-∅ x width [mm]: 100x30 Technische Daten Tragkraft kg 125 Bauhöhe H mm 125 Plattengröße TP mm 105x85 Lochabstand HS mm 80x60 Loch-Ø HD mm 9 Radlagerung Nylon plain bearing PDF Data sheet 3D model (Cardenas Customer portal)
IN 125 PBX	Swivel castor	125x30	250	155	135x110	105x80	11	113
Stainless Steel Series IN, Wheel P Swivel castor Wheel-∅ x width [mm]: 125x30 Technische Daten Tragkraft kg 250 Bauhöhe H mm 155 Plattengröße TP mm 135x110 Lochabstand HS mm 105x80 Loch-Ø HD mm 11 Störkreisradius SR mm 113 Radlagerung Roller bearing PDF Data sheet 3D model (Cardenas Customer portal)
INT 125 PBX	Swivel castor with total lock	125x30	250	155	135x110	105x80	11	155
Stainless Steel Series IN, Wheel P Swivel castor with total lock Wheel-∅ x width [mm]: 125x30 Technische Daten Tragkraft kg 250 Bauhöhe H mm 155 Plattengröße TP mm 135x110 Lochabstand HS mm 105x80 Loch-Ø HD mm 11 Störkreisradius SR mm 155 Radlagerung Roller bearing PDF Data sheet 3D model (Cardenas Customer portal)
INF 125 PBX	Fixed castor	125x30	250	155	135x110	105x80	11
Stainless Steel Series IN, Wheel P Fixed castor Wheel-∅ x width [mm]: 125x30 Technische Daten Tragkraft kg 250 Bauhöhe H mm 155 Plattengröße TP mm 135x110 Lochabstand HS mm 105x80 Loch-Ø HD mm 11 Radlagerung Roller bearing PDF Data sheet 3D model (Cardenas Customer portal)
IN 125 PL	Swivel castor	125x30	225	155	135x110	105x80	11	113
Stainless Steel Series IN, Wheel P Swivel castor Wheel-∅ x width [mm]: 125x30 Technische Daten Tragkraft kg 225 Bauhöhe H mm 155 Plattengröße TP mm 135x110 Lochabstand HS mm 105x80 Loch-Ø HD mm 11 Störkreisradius SR mm 113 Radlagerung Nylon plain bearing PDF Data sheet 3D model (Cardenas Customer portal)
INT 125 PL	Swivel castor with total lock	125x30	225	155	135x110	105x80	11	155
Stainless Steel Series IN, Wheel P Swivel castor with total lock Wheel-∅ x width [mm]: 125x30 Technische Daten Tragkraft kg 225 Bauhöhe H mm 155 Plattengröße TP mm 135x110 Lochabstand HS mm 105x80 Loch-Ø HD mm 11 Störkreisradius SR mm 155 Radlagerung Nylon plain bearing PDF Data sheet 3D model (Cardenas Customer portal)
INF 125 PL	Fixed castor	125x30	225	155	135x110	105x80	11
Stainless Steel Series IN, Wheel P Fixed castor Wheel-∅ x width [mm]: 125x30 Technische Daten Tragkraft kg 225 Bauhöhe H mm 155 Plattengröße TP mm 135x110 Lochabstand HS mm 105x80 Loch-Ø HD mm 11 Radlagerung Nylon plain bearing PDF Data sheet 3D model (Cardenas Customer portal)
IN 150 PBX	Swivel castor	150x40	250	180	135x110	105x80	11	127
Stainless Steel Series IN, Wheel P Swivel castor Wheel-∅ x width [mm]: 150x40 Technische Daten Tragkraft kg 250 Bauhöhe H mm 180 Plattengröße TP mm 135x110 Lochabstand HS mm 105x80 Loch-Ø HD mm 11 Störkreisradius SR mm 127 Radlagerung Roller bearing PDF Data sheet 3D model (Cardenas Customer portal)
INT 150 PBX	Swivel castor with total lock	150x40	250	180	135x110	105x80	11	150
Stainless Steel Series IN, Wheel P Swivel castor with total lock Wheel-∅ x width [mm]: 150x40 Technische Daten Tragkraft kg 250 Bauhöhe H mm 180 Plattengröße TP mm 135x110 Lochabstand HS mm 105x80 Loch-Ø HD mm 11 Störkreisradius SR mm 150 Radlagerung Roller bearing PDF Data sheet 3D model (Cardenas Customer portal)
INF 150 PBX	Fixed castor	150x40	250	180	135x110	105x80	11
Stainless Steel Series IN, Wheel P Fixed castor Wheel-∅ x width [mm]: 150x40 Technische Daten Tragkraft kg 250 Bauhöhe H mm 180 Plattengröße TP mm 135x110 Lochabstand HS mm 105x80 Loch-Ø HD mm 11 Radlagerung Roller bearing PDF Data sheet 3D model (Cardenas Customer portal)
IN 150 PL	Swivel castor	150x40	250	180	135x110	105x80	11	127
Stainless Steel Series IN, Wheel P Swivel castor Wheel-∅ x width [mm]: 150x40 Technische Daten Tragkraft kg 250 Bauhöhe H mm 180 Plattengröße TP mm 135x110 Lochabstand HS mm 105x80 Loch-Ø HD mm 11 Störkreisradius SR mm 127 Radlagerung Nylon plain bearing PDF Data sheet 3D model (Cardenas Customer portal)
INT 150 PL	Swivel castor with total lock	150x40	250	180	135x110	105x80	11	150
Stainless Steel Series IN, Wheel P Swivel castor with total lock Wheel-∅ x width [mm]: 150x40 Technische Daten Tragkraft kg 250 Bauhöhe H mm 180 Plattengröße TP mm 135x110 Lochabstand HS mm 105x80 Loch-Ø HD mm 11 Störkreisradius SR mm 150 Radlagerung Nylon plain bearing PDF Data sheet 3D model (Cardenas Customer portal)
INF 150 PL	Fixed castor	150x40	250	180	135x110	105x80	11
Stainless Steel Series IN, Wheel P Fixed castor Wheel-∅ x width [mm]: 150x40 Technische Daten Tragkraft kg 250 Bauhöhe H mm 180 Plattengröße TP mm 135x110 Lochabstand HS mm 105x80 Loch-Ø HD mm 11 Radlagerung Nylon plain bearing PDF Data sheet 3D model (Cardenas Customer portal)
IN 175 PBX	Swivel castor	175x40	250	217	135x110	105x80	11	149
Stainless Steel Series IN, Wheel P Swivel castor Wheel-∅ x width [mm]: 175x40 Technische Daten Tragkraft kg 250 Bauhöhe H mm 217 Plattengröße TP mm 135x110 Lochabstand HS mm 105x80 Loch-Ø HD mm 11 Störkreisradius SR mm 149 Radlagerung Roller bearing PDF Data sheet 3D model (Cardenas Customer portal)
INT 175 PBX	Swivel castor with total lock	175x40	250	217	135x110	105x80	11	190
Stainless Steel Series IN, Wheel P Swivel castor with total lock Wheel-∅ x width [mm]: 175x40 Technische Daten Tragkraft kg 250 Bauhöhe H mm 217 Plattengröße TP mm 135x110 Lochabstand HS mm 105x80 Loch-Ø HD mm 11 Störkreisradius SR mm 190 Radlagerung Roller bearing PDF Data sheet 3D model (Cardenas Customer portal)
INF 175 PBX	Fixed castor	175x40	250	217	135x110	105x80	11
Stainless Steel Series IN, Wheel P Fixed castor Wheel-∅ x width [mm]: 175x40 Technische Daten Tragkraft kg 250 Bauhöhe H mm 217 Plattengröße TP mm 135x110 Lochabstand HS mm 105x80 Loch-Ø HD mm 11 Radlagerung Roller bearing PDF Data sheet 3D model (Cardenas Customer portal)
IN 175 P	Swivel castor	175x40	250	217	135x110	105x80	11	149
Stainless Steel Series IN, Wheel P Swivel castor Wheel-∅ x width [mm]: 175x40 Technische Daten Tragkraft kg 250 Bauhöhe H mm 217 Plattengröße TP mm 135x110 Lochabstand HS mm 105x80 Loch-Ø HD mm 11 Störkreisradius SR mm 149 Radlagerung Nylon plain bearing PDF Data sheet 3D model (Cardenas Customer portal)
INT 175 P	Swivel castor with total lock	175x40	250	217	135x110	105x80	11	190
Stainless Steel Series IN, Wheel P Swivel castor with total lock Wheel-∅ x width [mm]: 175x40 Technische Daten Tragkraft kg 250 Bauhöhe H mm 217 Plattengröße TP mm 135x110 Lochabstand HS mm 105x80 Loch-Ø HD mm 11 Störkreisradius SR mm 190 Radlagerung Nylon plain bearing PDF Data sheet 3D model (Cardenas Customer portal)
INF 175 P	Fixed castor	175x40	250	217	135x110	105x80	11
Stainless Steel Series IN, Wheel P Fixed castor Wheel-∅ x width [mm]: 175x40 Technische Daten Tragkraft kg 250 Bauhöhe H mm 217 Plattengröße TP mm 135x110 Lochabstand HS mm 105x80 Loch-Ø HD mm 11 Radlagerung Nylon plain bearing PDF Data sheet 3D model (Cardenas Customer portal)
IN 200 PBX	Swivel castor	200x50	400	230	135x110	105x80	11	162
Stainless Steel Series IN, Wheel P Swivel castor Wheel-∅ x width [mm]: 200x50 Technische Daten Tragkraft kg 400 Bauhöhe H mm 230 Plattengröße TP mm 135x110 Lochabstand HS mm 105x80 Loch-Ø HD mm 11 Störkreisradius SR mm 162 Radlagerung Roller bearing PDF Data sheet 3D model (Cardenas Customer portal)
INT 200 PBX	Swivel castor with total lock	200x50	250	230	135x110	105x80	11	190
Stainless Steel Series IN, Wheel P Swivel castor with total lock Wheel-∅ x width [mm]: 200x50 Technische Daten Tragkraft kg 250 Bauhöhe H mm 230 Plattengröße TP mm 135x110 Lochabstand HS mm 105x80 Loch-Ø HD mm 11 Störkreisradius SR mm 190 Radlagerung Roller bearing PDF Data sheet 3D model (Cardenas Customer portal)
INF 200 PBX	Fixed castor	200x50	400	230	135x110	105x80	11
Stainless Steel Series IN, Wheel P Fixed castor Wheel-∅ x width [mm]: 200x50 Technische Daten Tragkraft kg 400 Bauhöhe H mm 230 Plattengröße TP mm 135x110 Lochabstand HS mm 105x80 Loch-Ø HD mm 11 Radlagerung Roller bearing PDF Data sheet 3D model (Cardenas Customer portal)
IN 200 P	Swivel castor	200x50	400	230	135x110	105x80	11	162
Stainless Steel Series IN, Wheel P Swivel castor Wheel-∅ x width [mm]: 200x50 Technische Daten Tragkraft kg 400 Bauhöhe H mm 230 Plattengröße TP mm 135x110 Lochabstand HS mm 105x80 Loch-Ø HD mm 11 Störkreisradius SR mm 162 Radlagerung Nylon plain bearing PDF Data sheet 3D model (Cardenas Customer portal)
INT 200 P	Swivel castor with total lock	200x50	250	230	135x110	105x80	11	190
Stainless Steel Series IN, Wheel P Swivel castor with total lock Wheel-∅ x width [mm]: 200x50 Technische Daten Tragkraft kg 250 Bauhöhe H mm 230 Plattengröße TP mm 135x110 Lochabstand HS mm 105x80 Loch-Ø HD mm 11 Störkreisradius SR mm 190 Radlagerung Nylon plain bearing PDF Data sheet 3D model (Cardenas Customer portal)
INF 200 P	Fixed castor	200x50	400	230	135x110	105x80	11
Stainless Steel Series IN, Wheel P Fixed castor Wheel-∅ x width [mm]: 200x50 Technische Daten Tragkraft kg 400 Bauhöhe H mm 230 Plattengröße TP mm 135x110 Lochabstand HS mm 105x80 Loch-Ø HD mm 11 Radlagerung Nylon plain bearing PDF Data sheet 3D model (Cardenas Customer portal)

Suitable accessories

Fixing Bolt STAINLESS STEEL M8x20 mm
Art.No. M 8X20 INOX

Edelstahl
Edelstahl V2A
M8x20

Qty € /Pc., exkl. Shipping
Fixing Bolt STAINLESS STEEL M10x20 mm
Art.No. M 10X20 INOX

Edelstahl
Edelstahl V2A
M10x20

Qty € /Pc., exkl. Shipping
Foot guard stainless steel and PU
Art.No. FUSSSCHUTZ PU

Qty € /Pc., exkl. Shipping

Similar products

Stainless Steel
Serie IN, Rad A

max 250 kg

150-500 mm

Wheel Coated in cast polyurethane, 95±3 Shore A

Fork Finish: Polished stainless steel, swivel fork with top plate, double ball bearing – bolted, with dust protection ring, wheel axle bolted – locked, adjustable total lock
Stainless Steel
Serie IN, Rad AL

max 250 kg

150-500 mm

Wheel Coated in injected polyurethane, 58±3 Shore D

Fork Finish: Polished stainless steel, swivel fork with top plate, double ball bearing – bolted, with dust protection ring, wheel axle bolted – locked, adjustable total lock
Stainless Steel
Serie IN, Rad PS

max 250 kg

150-500 mm

Wheel Cast soft polyurethane coating,87±3 Shore A

Fork Finish: Polished stainless steel, swivel fork with top plate, double ball bearing – bolted, with dust protection ring, wheel axle bolted – locked, adjustable total lock
Stainless Steel
Serie IN, Rad AEL

max 250 kg

150-500 mm

Wheel coated in polyurethane, 90±3 Shore A elecrically conductive <10⁴Ω

Fork Finish: Polished stainless steel, swivel fork with top plate, double ball bearing – bolted, with dust protection ring, wheel axle bolted – locked, adjustable total lock
Stainless Steel
Serie IN, Rad EL

max 205 kg

150-500 mm

Wheel rubber tyre, electricallyconductive, volume resistance value <10⁴Ω

Fork Finish: Polished stainless steel, swivel fork with top plate, double ball bearing – bolted, with dust protection ring, wheel axle bolted – locked, adjustable total lock
