Heavy Duty Series PD, Wheel TLEL

 PDF product sheet

max 800 kg
-20 °C - +80 °C
80-200 mm

++

swivels easily
+++

wear resistant
+++

shock proof
+++

floor protective
++

weather proof

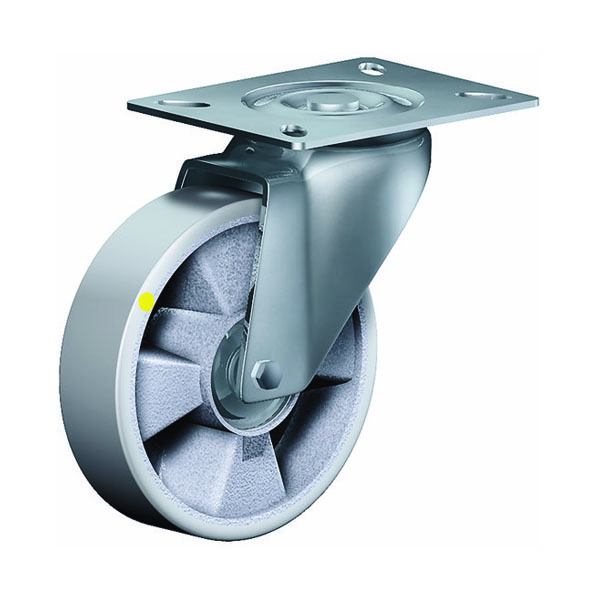

Swivel Castor

Show dimensions

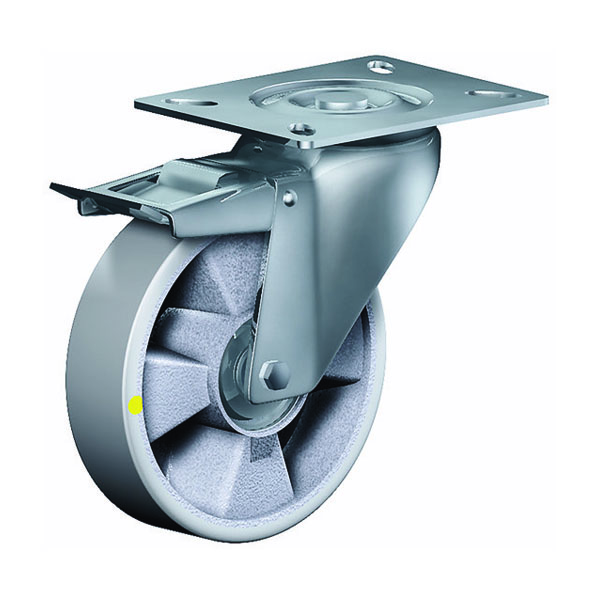

Swivel Castor With Total Lock

Show dimensions

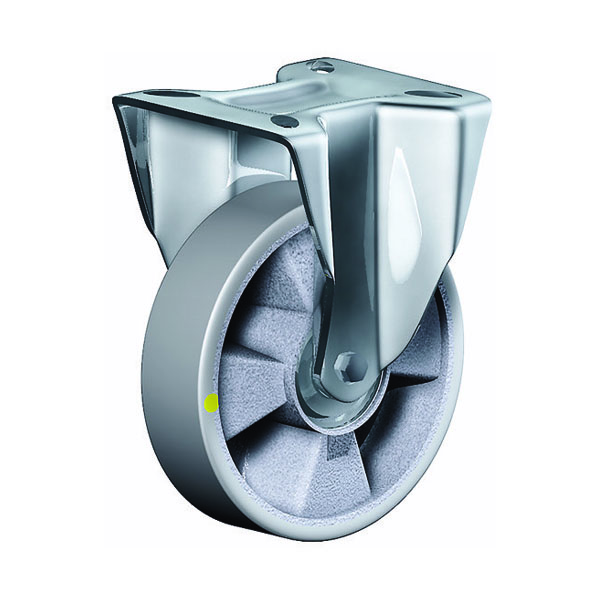

Fixed Castor

Show dimensions

Select the required versions in order to show them already filtered in the following table.

Advantages

electrically conductive
silent in motion
low rolling resistance
high abrasion and tear resistance
non-marking
good chemical resistance

Applications

Heavy duty dollies
Machinery moving dollies
Scaffolds
Racks

Material

Coated in cast polyurethane, 95±3 Shore A
Electrically conductive
Core in die-cast aluminium alloy

Fork material

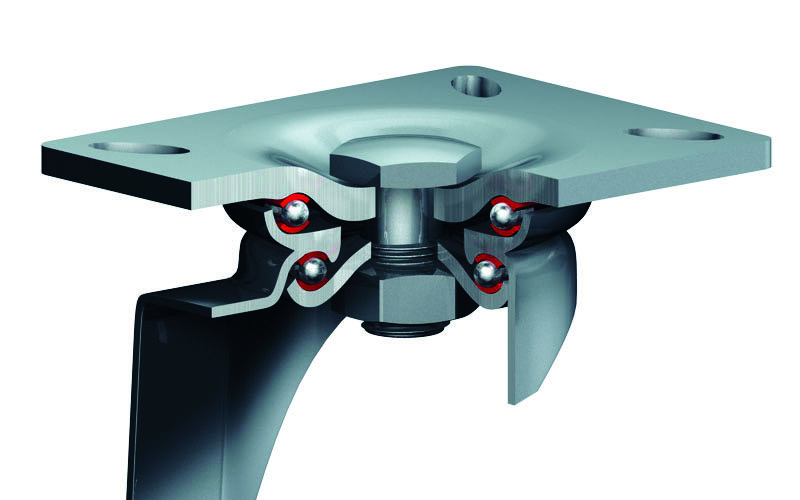

Finish: electro-zinc plated, hardened steel balls, double ball race – hardened steel sheet, with strong Kingpin bolted and locked – adjustable, thermoplastic dust protection ring and seal, wheel axle bolted, adjustable total lock – leading or trailing available

Cadenas Partcommunity-Portal

For a PDF with the technical description and detailed 3D CAD plans, please select the desired version. You can then download a PDF with the technical description or access detailed 3D CAD plans via our Cadenas Partcommunity portal.

The models have been carefully designed and validated for correctness. However, we take no responsibility for any incorrect or incomplete data.

Select version

14 of 14 items in this series are displayed.

Article number	Articel type	Wheel-Ø A x width B mm	Load Capacity kg	Overall height H mm	Dimension of top plate TP mm	Hole spacing HS mm	Hole-Ø HD mm	Swivel radius SR mm

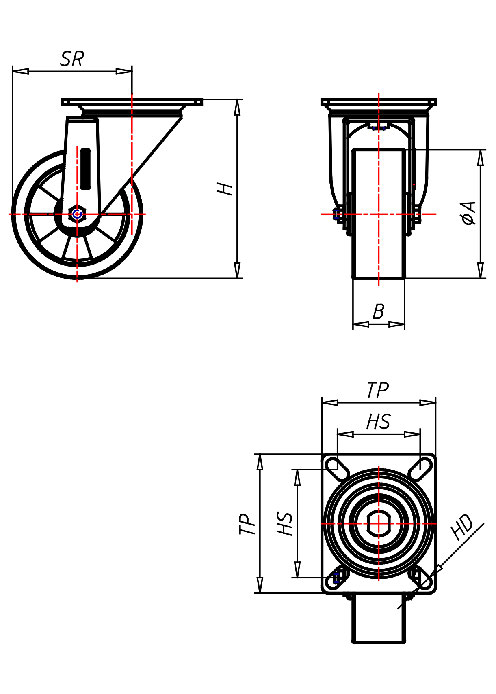

PD 81 TLELK	Swivel castor	80x30	180	128	105x85	80x60	8,5	83
Heavy Duty Series PD, Wheel TLEL Swivel castor Wheel-∅ x width [mm]: 80x30 Technische Daten Tragkraft kg 180 Bauhöhe H mm 128 Plattengröße TP mm 105x85 Lochabstand HS mm 80x60 Loch-Ø HD mm 8,5 Störkreisradius SR mm 83 Radlagerung Ball bearing PDF Data sheet
PDF 81 TLELK	Fixed castor	80x30	180	128	105x85	80x60	8,5
Heavy Duty Series PD, Wheel TLEL Fixed castor Wheel-∅ x width [mm]: 80x30 Technische Daten Tragkraft kg 180 Bauhöhe H mm 128 Plattengröße TP mm 105x85 Lochabstand HS mm 80x60 Loch-Ø HD mm 8,5 Radlagerung Ball bearing PDF Data sheet
PD 100 TLELK	Swivel castor	100x30	200	138	105x85	80x60	8,5	93
Heavy Duty Series PD, Wheel TLEL Swivel castor Wheel-∅ x width [mm]: 100x30 Technische Daten Tragkraft kg 200 Bauhöhe H mm 138 Plattengröße TP mm 105x85 Lochabstand HS mm 80x60 Loch-Ø HD mm 8,5 Störkreisradius SR mm 93 Radlagerung Ball bearing PDF Data sheet
PDT 100 TLELK	Swivel castor with total lock	100x30	200	138	105x85	80x60	8,5	140
Heavy Duty Series PD, Wheel TLEL Swivel castor with total lock Wheel-∅ x width [mm]: 100x30 Technische Daten Tragkraft kg 200 Bauhöhe H mm 138 Plattengröße TP mm 105x85 Lochabstand HS mm 80x60 Loch-Ø HD mm 8,5 Störkreisradius SR mm 140 Radlagerung Ball bearing PDF Data sheet
PDF 100 TLELK	Fixed castor	100x30	200	138	105x85	80x60	8,5
Heavy Duty Series PD, Wheel TLEL Fixed castor Wheel-∅ x width [mm]: 100x30 Technische Daten Tragkraft kg 200 Bauhöhe H mm 138 Plattengröße TP mm 105x85 Lochabstand HS mm 80x60 Loch-Ø HD mm 8,5 Radlagerung Ball bearing PDF Data sheet
PD 150 TLELK	Swivel castor	150x40	400	203	135x110	105x80	10,5	127
Heavy Duty Series PD, Wheel TLEL Swivel castor Wheel-∅ x width [mm]: 150x40 Technische Daten Tragkraft kg 400 Bauhöhe H mm 203 Plattengröße TP mm 135x110 Lochabstand HS mm 105x80 Loch-Ø HD mm 10,5 Störkreisradius SR mm 127 Radlagerung Ball bearing PDF Data sheet
PDT 150 TLELK	Swivel castor with total lock	150x40	400	203	135x110	105x80	10,5	140
Heavy Duty Series PD, Wheel TLEL Swivel castor with total lock Wheel-∅ x width [mm]: 150x40 Technische Daten Tragkraft kg 400 Bauhöhe H mm 203 Plattengröße TP mm 135x110 Lochabstand HS mm 105x80 Loch-Ø HD mm 10,5 Störkreisradius SR mm 140 Radlagerung Ball bearing PDF Data sheet
PDF 150 TLELK	Fixed castor	150x40	400	203	135x110	105x80	10,5
Heavy Duty Series PD, Wheel TLEL Fixed castor Wheel-∅ x width [mm]: 150x40 Technische Daten Tragkraft kg 400 Bauhöhe H mm 203 Plattengröße TP mm 135x110 Lochabstand HS mm 105x80 Loch-Ø HD mm 10,5 Radlagerung Ball bearing PDF Data sheet
PS 160 TLELK	Swivel castor	160x50	500	208	135x110	105x80	12,5	145
Heavy Duty Series PD, Wheel TLEL Swivel castor Wheel-∅ x width [mm]: 160x50 Technische Daten Tragkraft kg 500 Bauhöhe H mm 208 Plattengröße TP mm 135x110 Lochabstand HS mm 105x80 Loch-Ø HD mm 12,5 Störkreisradius SR mm 145 Radlagerung Ball bearing PDF Data sheet
PST 160 TLELK	Swivel castor with total lock	160x50	500	208	135x110	105x80	12,5	170
Heavy Duty Series PD, Wheel TLEL Swivel castor with total lock Wheel-∅ x width [mm]: 160x50 Technische Daten Tragkraft kg 500 Bauhöhe H mm 208 Plattengröße TP mm 135x110 Lochabstand HS mm 105x80 Loch-Ø HD mm 12,5 Störkreisradius SR mm 170 Radlagerung Ball bearing PDF Data sheet
PSF 160 TLELK	Fixed castor	160x50	500	208	135x110	105x80	12,5
Heavy Duty Series PD, Wheel TLEL Fixed castor Wheel-∅ x width [mm]: 160x50 Technische Daten Tragkraft kg 500 Bauhöhe H mm 208 Plattengröße TP mm 135x110 Lochabstand HS mm 105x80 Loch-Ø HD mm 12,5 Radlagerung Ball bearing
PD 200 TLELK	Swivel castor	200x50	800	250	135x110	105x80	12,5	167
Heavy Duty Series PD, Wheel TLEL Swivel castor Wheel-∅ x width [mm]: 200x50 Technische Daten Tragkraft kg 800 Bauhöhe H mm 250 Plattengröße TP mm 135x110 Lochabstand HS mm 105x80 Loch-Ø HD mm 12,5 Störkreisradius SR mm 167 Radlagerung Ball bearing PDF Data sheet

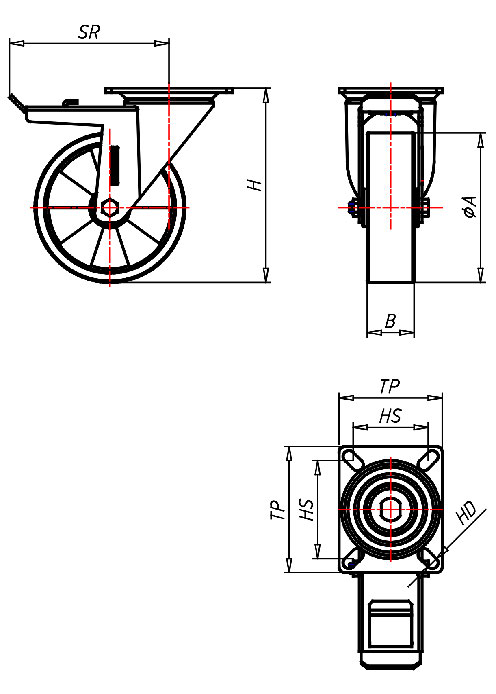

PDT 200 TLELK	Swivel castor with total lock	200x50	800	250	135x110	105x80	12,5	170
Heavy Duty Series PD, Wheel TLEL Swivel castor with total lock Wheel-∅ x width [mm]: 200x50 Technische Daten Tragkraft kg 800 Bauhöhe H mm 250 Plattengröße TP mm 135x110 Lochabstand HS mm 105x80 Loch-Ø HD mm 12,5 Störkreisradius SR mm 170 Radlagerung Ball bearing PDF Data sheet

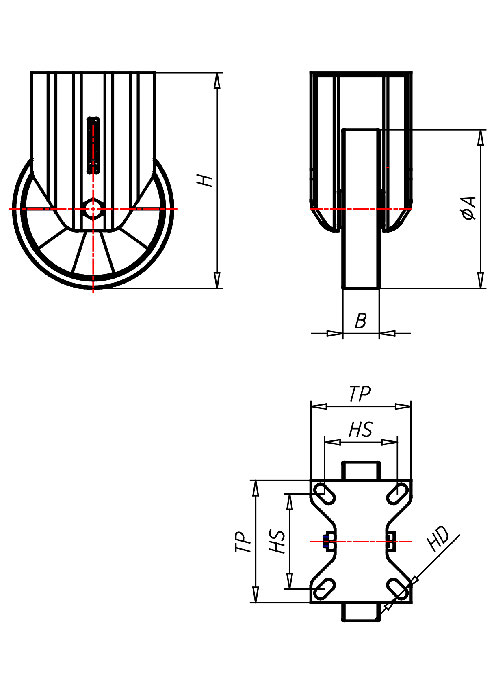

PDF 200 TLELK	Fixed castor	200x50	800	250	135x110	105x80	12,5
Heavy Duty Series PD, Wheel TLEL Fixed castor Wheel-∅ x width [mm]: 200x50 Technische Daten Tragkraft kg 800 Bauhöhe H mm 250 Plattengröße TP mm 135x110 Lochabstand HS mm 105x80 Loch-Ø HD mm 12,5 Radlagerung Ball bearing PDF Data sheet

Suitable accessories

Counter plate 105x85x3,5 mm
Art.No. GEGENPLATTE 1

blank
Stahl blank
105x85x3,5
80x60

Qty € /Pc., exkl. Shipping
Counter plate 135x110x5 mm
Art.No. GEGENPLATTE 2

blank
Stahl blank
135x110x5
105x80

Qty € /Pc., exkl. Shipping
Counter plate 135x110x8 mm
Art.No. GEGENPLATTE 3

blank
Stahl blank
135x110x8
105x80

Qty € /Pc., exkl. Shipping
Directional lock DL3
Art.No. DL 3

360 Grad
Stahlblech verzinkt
135x110
105x80

Qty € /Pc., exkl. Shipping
Fixing Bolt M8x20 mm
Art.No. M 8X20

verzinkt
Stahl 8.8 verzinkt
M8x20

Qty € /Pc., exkl. Shipping
Fixing bolt M10x20 mm
Art.No. M 10X20

verzinkt
Stahl 8.8 verzinkt
M10x20

Qty € /Pc., exkl. Shipping
Fixing Bolt M12x25mm
Art.No. M 12X25

verzinkt
Stahl 8.8 verzinkt
M12x25

Qty € /Pc., exkl. Shipping
Foot guard zinc plated
Art.No. FUSSSCHUTZ VZ

Qty € /Pc., exkl. Shipping
