Heavy Duty Series PD, Wheel EBA

 PDF product sheet

max 450 kg
-30 °C - +80 °C
125-250 mm

+++

swivels easily
+++

wear resistant
+++

shock proof
+++

floor protective
++

weather proof

Swivel Castor

Show dimensions
Swivel Castor With Total Lock

Show dimensions
Fixed Castor

Show dimensions

Select the required versions in order to show them already filtered in the following table.

Advantages

very silent in motion
very low rolling resistance
good abrasion resistance
corrosion resistant
alternative to pneumatic tires

Applications

Heavy duty dollies
Machinery moving dollies
Scaffolds
Racks

Material

SUPER-Elastic solid rubber tyre black 55 ± 3 Shore A soft, crowned treat
Core in die-cast aluminium alloy

Fork material

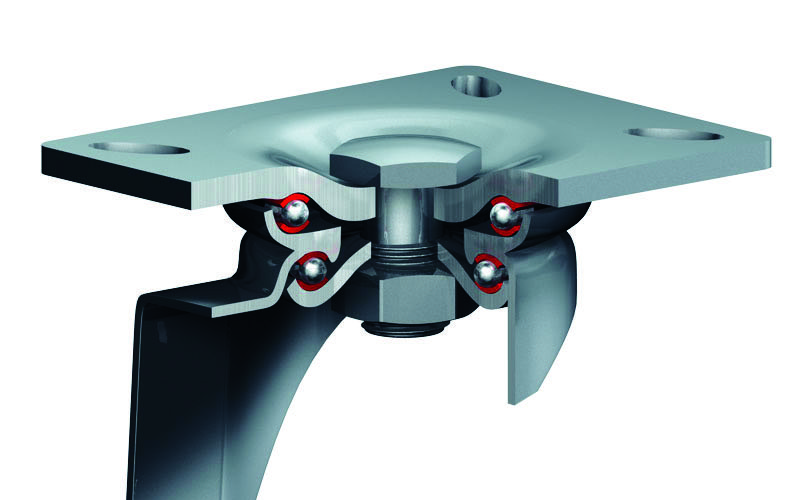

Finish: electro-zinc plated, hardened steel balls, double ball race – hardened steel sheet, with strong Kingpin bolted and locked – adjustable, thermoplastic dust protection ring and seal, wheel axle bolted, adjustable total lock – leading or trailing available

Cadenas Partcommunity-Portal

For a PDF with the technical description and detailed 3D CAD plans, please select the desired version. You can then download a PDF with the technical description or access detailed 3D CAD plans via our Cadenas Partcommunity portal.

The models have been carefully designed and validated for correctness. However, we take no responsibility for any incorrect or incomplete data.

Select version

15 of 15 items in this series are displayed.

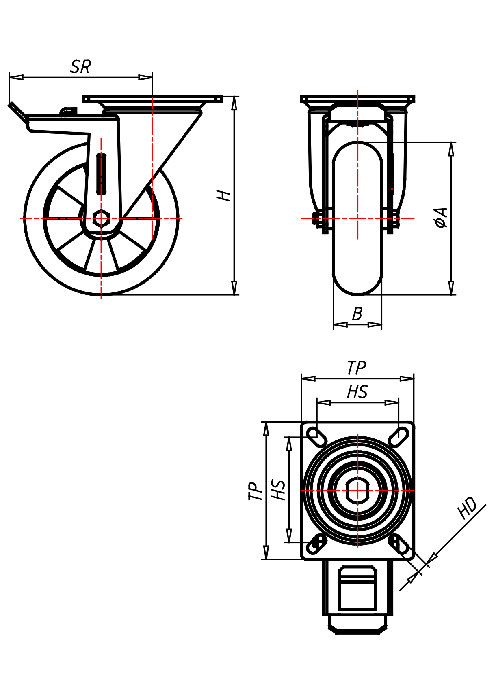

Article number	Articel type	Wheel-Ø A x width B mm	Load Capacity kg	Overall height H mm	Dimension of top plate TP mm	Hole spacing HS mm	Hole-Ø HD mm	Swivel radius SR mm

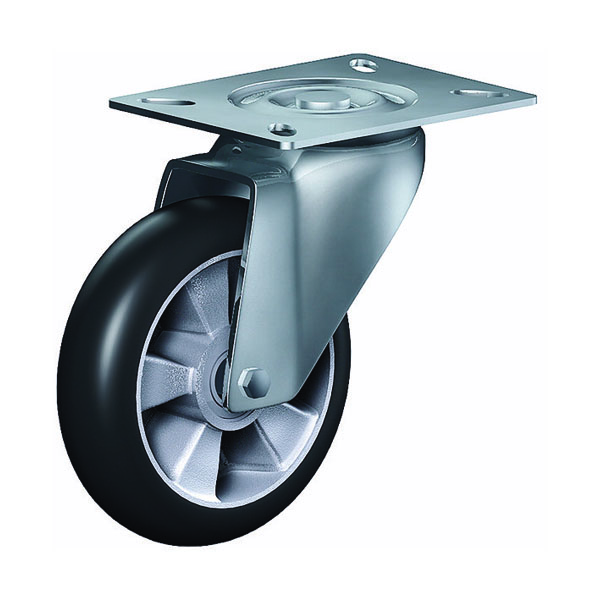

PD 125 EBAK	Swivel castor	125X40	200	164	135X110	105X80	10,5	106
Heavy Duty Series PD, Wheel EBA Swivel castor Wheel-∅ x width [mm]: 125X40 Technische Daten Tragkraft kg 200 Bauhöhe H mm 164 Plattengröße TP mm 135X110 Lochabstand HS mm 105X80 Loch-Ø HD mm 10,5 Störkreisradius SR mm 106 Radlagerung Ball bearing PDF Data sheet

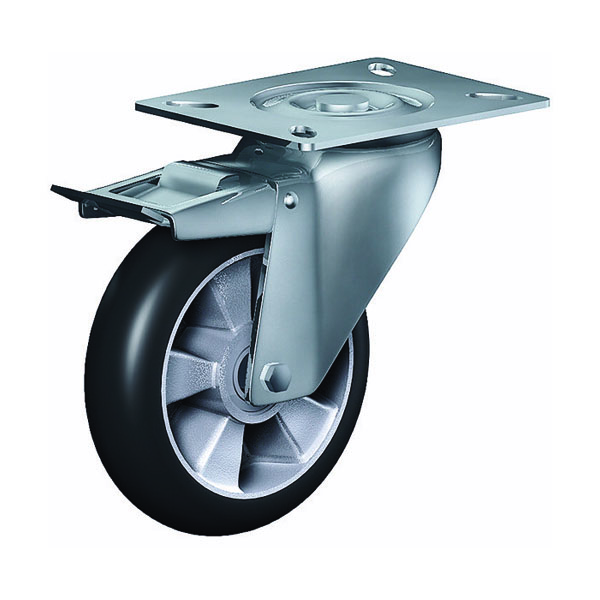

PDT 125 EBAK	Swivel castor with total lock	125X40	200	164	135X110	105X80	10,5	140
Heavy Duty Series PD, Wheel EBA Swivel castor with total lock Wheel-∅ x width [mm]: 125X40 Technische Daten Tragkraft kg 200 Bauhöhe H mm 164 Plattengröße TP mm 135X110 Lochabstand HS mm 105X80 Loch-Ø HD mm 10,5 Störkreisradius SR mm 140 Radlagerung Ball bearing PDF Data sheet

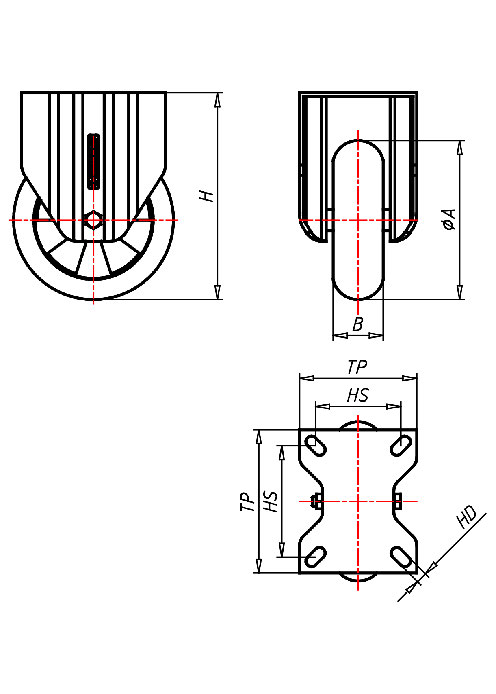

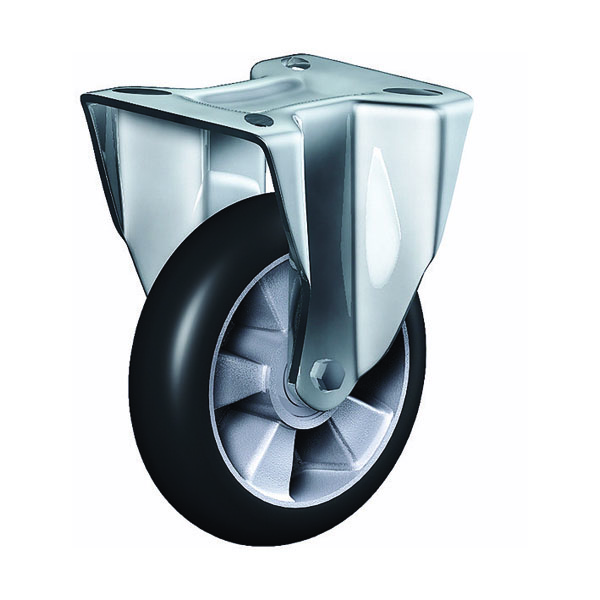

PDF 125 EBAK	Fixed castor	125X40	200	164	135X110	105X80	10,5
Heavy Duty Series PD, Wheel EBA Fixed castor Wheel-∅ x width [mm]: 125X40 Technische Daten Tragkraft kg 200 Bauhöhe H mm 164 Plattengröße TP mm 135X110 Lochabstand HS mm 105X80 Loch-Ø HD mm 10,5 Radlagerung Ball bearing PDF Data sheet
PD 150 EBAK	Swivel castor	150X47	270	195	135X110	105X80	10,5	127
Heavy Duty Series PD, Wheel EBA Swivel castor Wheel-∅ x width [mm]: 150X47 Technische Daten Tragkraft kg 270 Bauhöhe H mm 195 Plattengröße TP mm 135X110 Lochabstand HS mm 105X80 Loch-Ø HD mm 10,5 Störkreisradius SR mm 127 Radlagerung Ball bearing PDF Data sheet
PDT 150 EBAK	Swivel castor with total lock	150X47	270	195	135X110	105X80	10,5	140
Heavy Duty Series PD, Wheel EBA Swivel castor with total lock Wheel-∅ x width [mm]: 150X47 Technische Daten Tragkraft kg 270 Bauhöhe H mm 195 Plattengröße TP mm 135X110 Lochabstand HS mm 105X80 Loch-Ø HD mm 10,5 Störkreisradius SR mm 140 Radlagerung Ball bearing PDF Data sheet
PDF 150 EBAK	Fixed castor	150X47	270	195	135X110	105X80	10,5
Heavy Duty Series PD, Wheel EBA Fixed castor Wheel-∅ x width [mm]: 150X47 Technische Daten Tragkraft kg 270 Bauhöhe H mm 195 Plattengröße TP mm 135X110 Lochabstand HS mm 105X80 Loch-Ø HD mm 10,5 Radlagerung Ball bearing PDF Data sheet
PS 160 EBAK	Swivel castor	160X50	270	208	135X110	105X80	12,5	145
Heavy Duty Series PD, Wheel EBA Swivel castor Wheel-∅ x width [mm]: 160X50 Technische Daten Tragkraft kg 270 Bauhöhe H mm 208 Plattengröße TP mm 135X110 Lochabstand HS mm 105X80 Loch-Ø HD mm 12,5 Störkreisradius SR mm 145 Radlagerung Ball bearing PDF Data sheet
PST 160 EBAK	Swivel castor with total lock	160X50	270	208	135X110	105X80	12,5	170
Heavy Duty Series PD, Wheel EBA Swivel castor with total lock Wheel-∅ x width [mm]: 160X50 Technische Daten Tragkraft kg 270 Bauhöhe H mm 208 Plattengröße TP mm 135X110 Lochabstand HS mm 105X80 Loch-Ø HD mm 12,5 Störkreisradius SR mm 170 Radlagerung Ball bearing PDF Data sheet
PSF 160 EBAK	Fixed castor	160X50	270	208	135X110	105X80	12,5
Heavy Duty Series PD, Wheel EBA Fixed castor Wheel-∅ x width [mm]: 160X50 Technische Daten Tragkraft kg 270 Bauhöhe H mm 208 Plattengröße TP mm 135X110 Lochabstand HS mm 105X80 Loch-Ø HD mm 12,5 Radlagerung Ball bearing PDF Data sheet

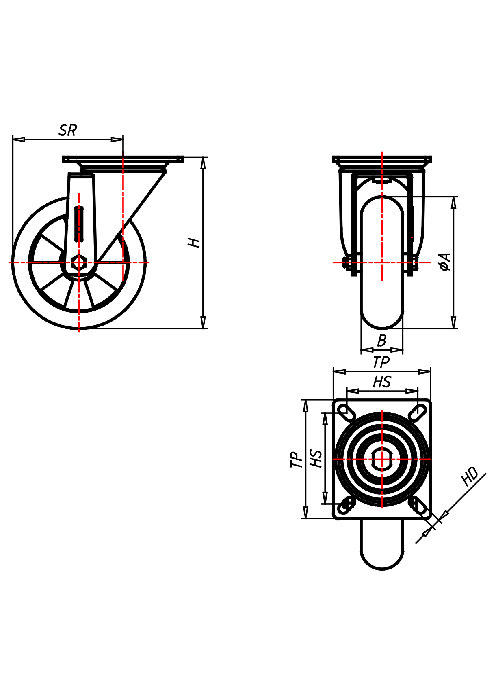

PD 200 EBAK	Swivel castor	200X50	360	250	135X110	105X80	12,5	167
Heavy Duty Series PD, Wheel EBA Swivel castor Wheel-∅ x width [mm]: 200X50 Technische Daten Tragkraft kg 360 Bauhöhe H mm 250 Plattengröße TP mm 135X110 Lochabstand HS mm 105X80 Loch-Ø HD mm 12,5 Störkreisradius SR mm 167 Radlagerung Ball bearing PDF Data sheet
PDT 200 EBAK	Swivel castor with total lock	200X50	360	250	135X110	105X80	12,5	170
Heavy Duty Series PD, Wheel EBA Swivel castor with total lock Wheel-∅ x width [mm]: 200X50 Technische Daten Tragkraft kg 360 Bauhöhe H mm 250 Plattengröße TP mm 135X110 Lochabstand HS mm 105X80 Loch-Ø HD mm 12,5 Störkreisradius SR mm 170 Radlagerung Ball bearing PDF Data sheet
PSF 200 EBAK	Fixed castor	200X50	360	250	135X110	105X80	12,5
Heavy Duty Series PD, Wheel EBA Fixed castor Wheel-∅ x width [mm]: 200X50 Technische Daten Tragkraft kg 360 Bauhöhe H mm 250 Plattengröße TP mm 135X110 Lochabstand HS mm 105X80 Loch-Ø HD mm 12,5 Radlagerung Ball bearing
PD 250 EBAK	Swivel castor	250X50	450	305	135X110	105X80	12,5	167
Heavy Duty Series PD, Wheel EBA Swivel castor Wheel-∅ x width [mm]: 250X50 Technische Daten Tragkraft kg 450 Bauhöhe H mm 305 Plattengröße TP mm 135X110 Lochabstand HS mm 105X80 Loch-Ø HD mm 12,5 Störkreisradius SR mm 167 Radlagerung Ball bearing PDF Data sheet
PDT 250 EBAK	Swivel castor with total lock	250X50	450	305	135X110	105X80	12,5	170
Heavy Duty Series PD, Wheel EBA Swivel castor with total lock Wheel-∅ x width [mm]: 250X50 Technische Daten Tragkraft kg 450 Bauhöhe H mm 305 Plattengröße TP mm 135X110 Lochabstand HS mm 105X80 Loch-Ø HD mm 12,5 Störkreisradius SR mm 170 Radlagerung Ball bearing PDF Data sheet
PDF 250 EBAK	Fixed castor	250X50	450	305	135X110	105X80	12,5
Heavy Duty Series PD, Wheel EBA Fixed castor Wheel-∅ x width [mm]: 250X50 Technische Daten Tragkraft kg 450 Bauhöhe H mm 305 Plattengröße TP mm 135X110 Lochabstand HS mm 105X80 Loch-Ø HD mm 12,5 Radlagerung Ball bearing PDF Data sheet

Suitable accessories

Counter plate 135x110x5 mm
Art.No. GEGENPLATTE 2

blank
Stahl blank
135x110x5
105x80

Qty € /Pc., exkl. Shipping
Counter plate 135x110x8 mm
Art.No. GEGENPLATTE 3

blank
Stahl blank
135x110x8
105x80

Qty € /Pc., exkl. Shipping
Directional lock DL3
Art.No. DL 3

360 Grad
Stahlblech verzinkt
135x110
105x80

Qty € /Pc., exkl. Shipping
Fixing bolt M10x20 mm
Art.No. M 10X20

verzinkt
Stahl 8.8 verzinkt
M10x20

Qty € /Pc., exkl. Shipping
Fixing Bolt M12x25mm
Art.No. M 12X25

verzinkt
Stahl 8.8 verzinkt
M12x25

Qty € /Pc., exkl. Shipping
Foot guard zinc plated
Art.No. FUSSSCHUTZ VZ

Qty € /Pc., exkl. Shipping
