Stainless Steel Series 330LXP, Wheel TP
  • Swivel Castor Stainless Steel Series 330LXP, Wheel TP

    SWIVEL CASTOR

  • Swivel Castor With Total Lock Stainless Steel Series 330LXP, Wheel TP

    SWIVEL CASTOR WITH TOTAL LOCK

Select the required versions in order to show them already filtered in the following table.

Stainless Steel Series 330LXP, Wheel TPEdelstahl

PDF product sheet
  • max 100 kg
  • -20 °C - +60 °C
  • 100-125 mm
  • ++
    swivels easily
  • +++
    wear resistant
  • +++
    shock proof
  • +++
    floor protective
  • +++
    weather proof

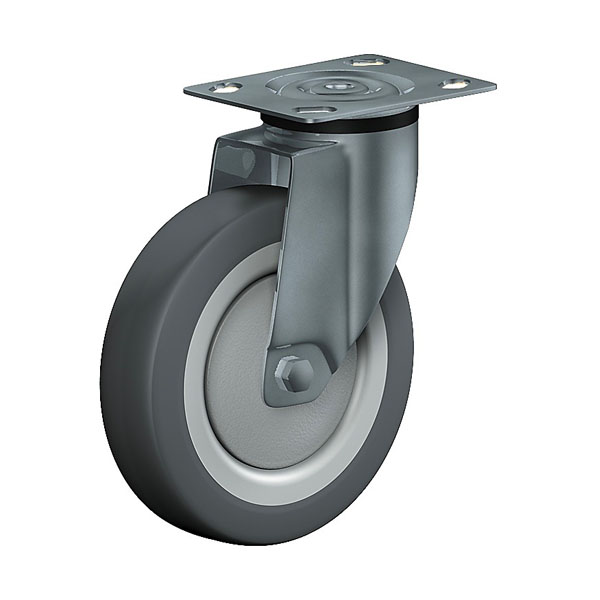

  • Swivel Castor Stainless Steel Series 330LXP, Wheel TP

    Swivel Castor

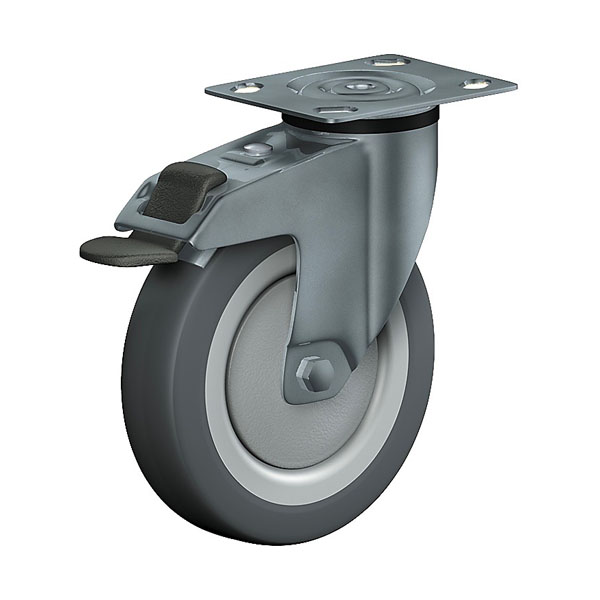

  • Swivel Castor With Total Lock Stainless Steel Series 330LXP, Wheel TP

    Swivel Castor With Total Lock

Select the required versions in order to show them already filtered in the following table.

Description

Advantages

  • silent in motion
  • low rolling resistance
  • high resistance to shocks
  • non-marking
  • easy to clean
  • good chemical resistance

Applications

  • Food service carts
  • Food service carts
  • Wet environments
  • Health-Professionals

Material

Material

Tread: Thermoplastic elastomer coating 95±3 Shore A**
High quality nylon wheel centre

Fork material

Stainless steel swivel fork,

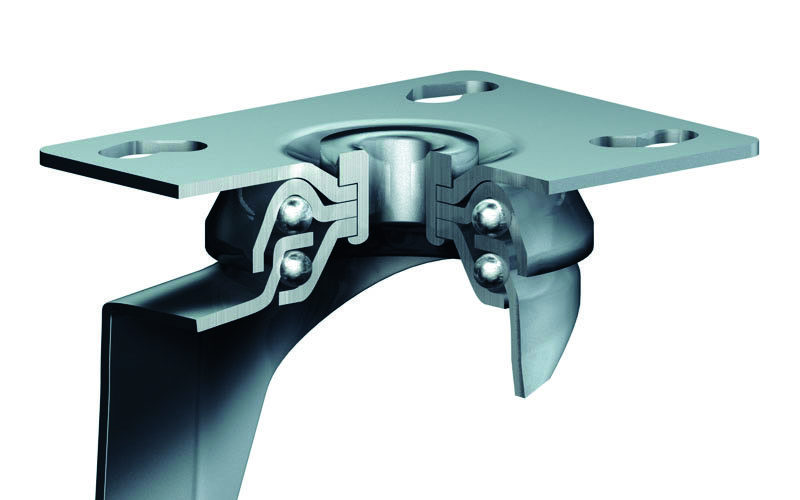

large double ball bearing – Ø 57 mm, revited, wheel axle bolted and locked, total lock

Documents/CAD

Cadenas Partcommunity-Portal

For a PDF with the technical description and detailed 3D CAD plans, please select the desired version. You can then download a PDF with the technical description or access detailed 3D CAD plans via our Cadenas Partcommunity portal.

The models have been carefully designed and validated for correctness. However, we take no responsibility for any incorrect or incomplete data.

Select version

Select version

16 of 16 items in this series are displayed.

Article number Articel type Price € QTY
330LX PT 102 TPKX

Stainless Steel Series 330LXP, Wheel TP

Swivel castor Wheel-∅ x width [mm]: 100x32

Stainless Steel Series 330LXP, Wheel TP

Technische Daten

  • Tragkraft kg 90
  • Bauhöhe H mm 132
  • Plattengröße TP mm 77x67
  • Lochabstand HS mm 57x48/61x51
  • Loch-Ø HD mm 8,5
  • Störkreisradius SR mm 90
  • Radlagerung Ball bearing
331LX PT 102 TPKX

Stainless Steel Series 330LXP, Wheel TP

Swivel castor with total lock Wheel-∅ x width [mm]: 100x32

Stainless Steel Series 330LXP, Wheel TP

Technische Daten

  • Tragkraft kg 90
  • Bauhöhe H mm 132
  • Plattengröße TP mm 77x67
  • Lochabstand HS mm 57x48/61x51
  • Loch-Ø HD mm 8,5
  • Störkreisradius SR mm 130
  • Radlagerung Ball bearing
330LX PT 102 TP

Stainless Steel Series 330LXP, Wheel TP

Swivel castor Wheel-∅ x width [mm]: 100x32

Stainless Steel Series 330LXP, Wheel TP

Technische Daten

  • Tragkraft kg 90
  • Bauhöhe H mm 132
  • Plattengröße TP mm 77x67
  • Lochabstand HS mm 57x48/61x51
  • Loch-Ø HD mm 8,5
  • Störkreisradius SR mm 90
  • Radlagerung Nylon plain bearing
331LX PT 102 TP

Stainless Steel Series 330LXP, Wheel TP

Swivel castor with total lock Wheel-∅ x width [mm]: 100x32

Stainless Steel Series 330LXP, Wheel TP

Technische Daten

  • Tragkraft kg 90
  • Bauhöhe H mm 132
  • Plattengröße TP mm 77x67
  • Lochabstand HS mm 57x48/61x51
  • Loch-Ø HD mm 8,5
  • Störkreisradius SR mm 130
  • Radlagerung Nylon plain bearing
330LXK PT 102 TPKX

Stainless Steel Series 330LXP, Wheel TP

Swivel castor Wheel-∅ x width [mm]: 100x32

Stainless Steel Series 330LXP, Wheel TP

Technische Daten

  • Tragkraft kg 90
  • Bauhöhe H mm 132
  • Plattengröße TP mm 95x70
  • Lochabstand HS mm 75x50
  • Loch-Ø HD mm 11
  • Störkreisradius SR mm 90
  • Radlagerung Ball bearing
331LXK PT 102 TPKX

Stainless Steel Series 330LXP, Wheel TP

Swivel castor with total lock Wheel-∅ x width [mm]: 100x32

Stainless Steel Series 330LXP, Wheel TP

Technische Daten

  • Tragkraft kg 90
  • Bauhöhe H mm 132
  • Plattengröße TP mm 95x70
  • Lochabstand HS mm 75x50
  • Loch-Ø HD mm 11
  • Störkreisradius SR mm 130
  • Radlagerung Ball bearing

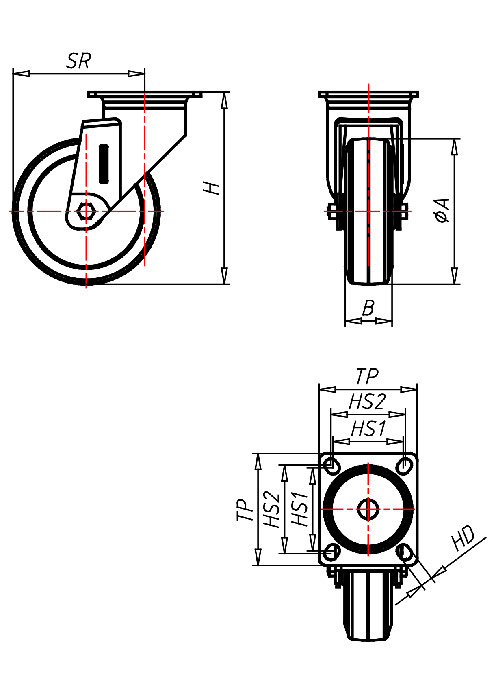

330LXK PT 102 TP

Stainless Steel Series 330LXP, Wheel TP

Swivel castor Wheel-∅ x width [mm]: 100x32

Stainless Steel Series 330LXP, Wheel TP

Technische Daten

  • Tragkraft kg 90
  • Bauhöhe H mm 132
  • Plattengröße TP mm 95x70
  • Lochabstand HS mm 75x50
  • Loch-Ø HD mm 11
  • Störkreisradius SR mm 90
  • Radlagerung Nylon plain bearing
331LXK PT 102 TP

Stainless Steel Series 330LXP, Wheel TP

Swivel castor with total lock Wheel-∅ x width [mm]: 100x32

Stainless Steel Series 330LXP, Wheel TP

Technische Daten

  • Tragkraft kg 90
  • Bauhöhe H mm 132
  • Plattengröße TP mm 95x70
  • Lochabstand HS mm 75x50
  • Loch-Ø HD mm 11
  • Störkreisradius SR mm 130
  • Radlagerung Nylon plain bearing
330LX PT 127 TPKX

Stainless Steel Series 330LXP, Wheel TP

Swivel castor Wheel-∅ x width [mm]: 125x32

Stainless Steel Series 330LXP, Wheel TP

Technische Daten

  • Tragkraft kg 100
  • Bauhöhe H mm 158
  • Plattengröße TP mm 77x67
  • Lochabstand HS mm 57x48/61x51
  • Loch-Ø HD mm 8,5
  • Störkreisradius SR mm 103
  • Radlagerung Ball bearing
331LX PT 127 TPKX

Stainless Steel Series 330LXP, Wheel TP

Swivel castor with total lock Wheel-∅ x width [mm]: 125x32

Stainless Steel Series 330LXP, Wheel TP

Technische Daten

  • Tragkraft kg 100
  • Bauhöhe H mm 158
  • Plattengröße TP mm 77x67
  • Lochabstand HS mm 57x48/61x51
  • Loch-Ø HD mm 8,5
  • Störkreisradius SR mm 130
  • Radlagerung Ball bearing
330LX PT 127 TP

Stainless Steel Series 330LXP, Wheel TP

Swivel castor Wheel-∅ x width [mm]: 125x32

Stainless Steel Series 330LXP, Wheel TP

Technische Daten

  • Tragkraft kg 100
  • Bauhöhe H mm 158
  • Plattengröße TP mm 77x67
  • Lochabstand HS mm 57x48/61x51
  • Loch-Ø HD mm 8,5
  • Störkreisradius SR mm 103
  • Radlagerung Nylon plain bearing
331LX PT 127 TP

Stainless Steel Series 330LXP, Wheel TP

Swivel castor with total lock Wheel-∅ x width [mm]: 125x32

Stainless Steel Series 330LXP, Wheel TP

Technische Daten

  • Tragkraft kg 100
  • Bauhöhe H mm 158
  • Plattengröße TP mm 77x67
  • Lochabstand HS mm 57x48/61x51
  • Loch-Ø HD mm 8,5
  • Störkreisradius SR mm 130
  • Radlagerung Nylon plain bearing
330LXK PT 127 TPKX

Stainless Steel Series 330LXP, Wheel TP

Swivel castor Wheel-∅ x width [mm]: 125x32

Stainless Steel Series 330LXP, Wheel TP

Technische Daten

  • Tragkraft kg 100
  • Bauhöhe H mm 158
  • Plattengröße TP mm 95x70
  • Lochabstand HS mm 75x50
  • Loch-Ø HD mm 11
  • Störkreisradius SR mm 103
  • Radlagerung Ball bearing

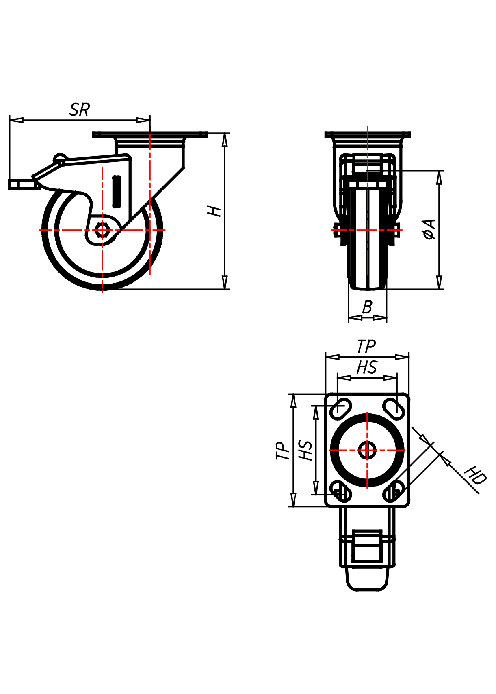

331LXK PT 127 TPKX

Stainless Steel Series 330LXP, Wheel TP

Swivel castor with total lock Wheel-∅ x width [mm]: 125x32

Stainless Steel Series 330LXP, Wheel TP

Technische Daten

  • Tragkraft kg 100
  • Bauhöhe H mm 158
  • Plattengröße TP mm 95x70
  • Lochabstand HS mm 75x50
  • Loch-Ø HD mm 11
  • Störkreisradius SR mm 130
  • Radlagerung Ball bearing
330LXK PT 127 TP

Stainless Steel Series 330LXP, Wheel TP

Swivel castor Wheel-∅ x width [mm]: 125x32

Stainless Steel Series 330LXP, Wheel TP

Technische Daten

  • Tragkraft kg 100
  • Bauhöhe H mm 158
  • Plattengröße TP mm 95x70
  • Lochabstand HS mm 75x50
  • Loch-Ø HD mm 11
  • Störkreisradius SR mm 103
  • Radlagerung Nylon plain bearing
331LXK PT 127 TP

Stainless Steel Series 330LXP, Wheel TP

Swivel castor with total lock Wheel-∅ x width [mm]: 125x32

Stainless Steel Series 330LXP, Wheel TP

Technische Daten

  • Tragkraft kg 100
  • Bauhöhe H mm 158
  • Plattengröße TP mm 95x70
  • Lochabstand HS mm 75x50
  • Loch-Ø HD mm 11
  • Störkreisradius SR mm 130
  • Radlagerung Nylon plain bearing
