Heavy Duty Series PD, Wheel A

 PDF product sheet

max 700 kg
-30 °C - +80 °C
100-225 mm

++

swivels easily
+++

wear resistant
+++

shock proof
+++

floor protective
++

weather proof

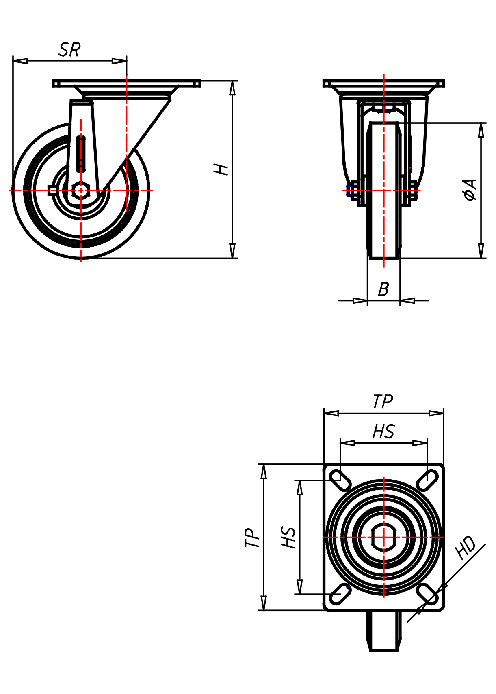

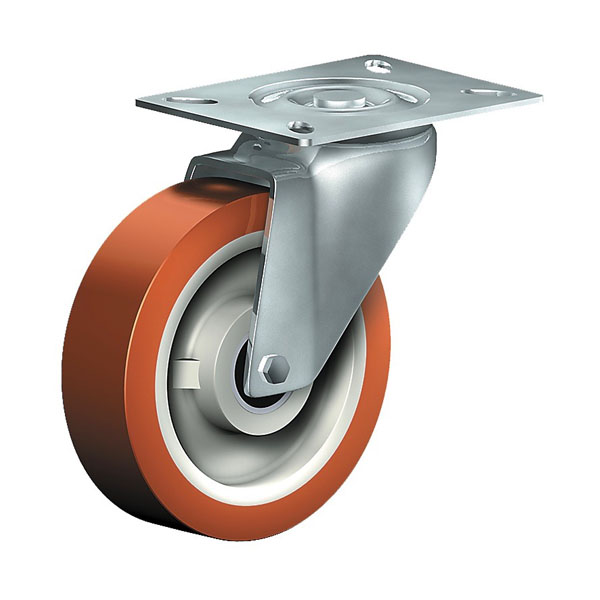

Swivel Castor

Show dimensions

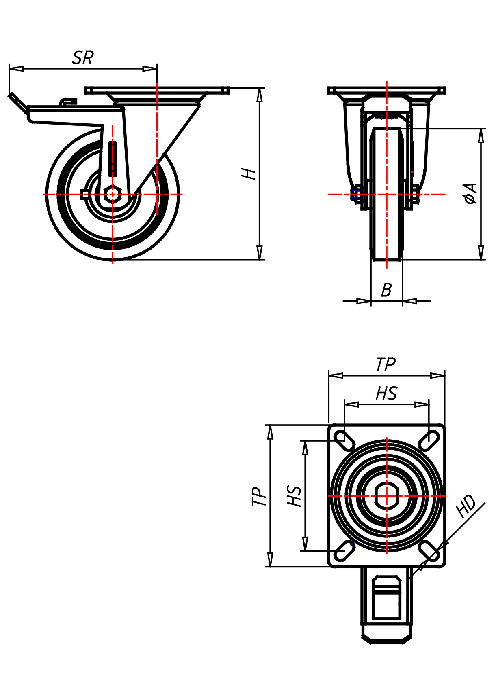

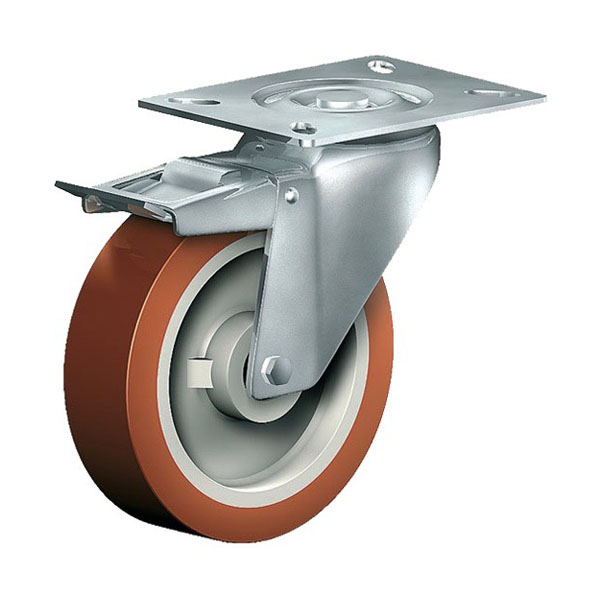

Swivel Castor With Total Lock

Show dimensions

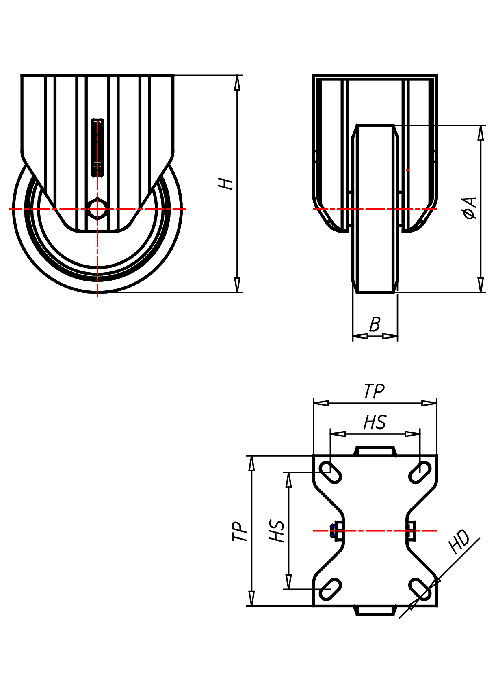

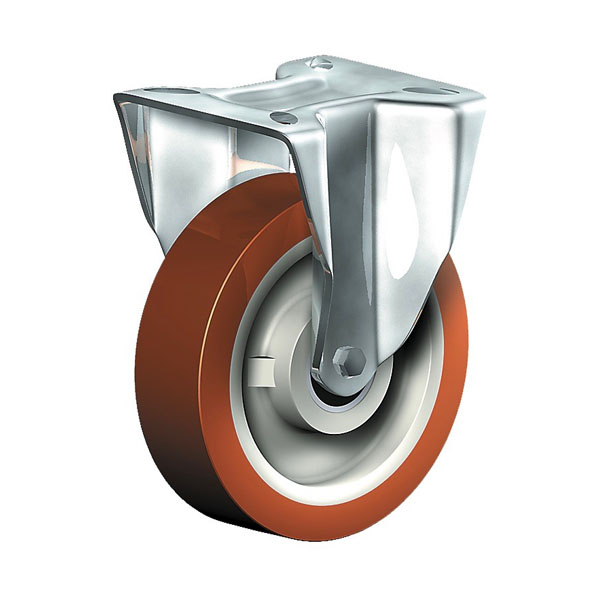

Fixed Castor

Show dimensions

Select the required versions in order to show them already filtered in the following table.

Floor condition

PVC/Concrete
Tiles
Asphalt
Parquet flooring
Obstacles

Advantages

silent in motion
low rolling resistance
high abrasion and tear resistance
high resistance to shocks
easy to clean
good chemical resistance

Applications

Metal-Technology
Heavy duty dollies
Machinery moving dollies
Workshops
Scaffolds
Racks
Carpentry
Building-Industry

Material

Coated in cast polyurethane, 95±3 Shore A
High quality nylon wheel centre

Fork material

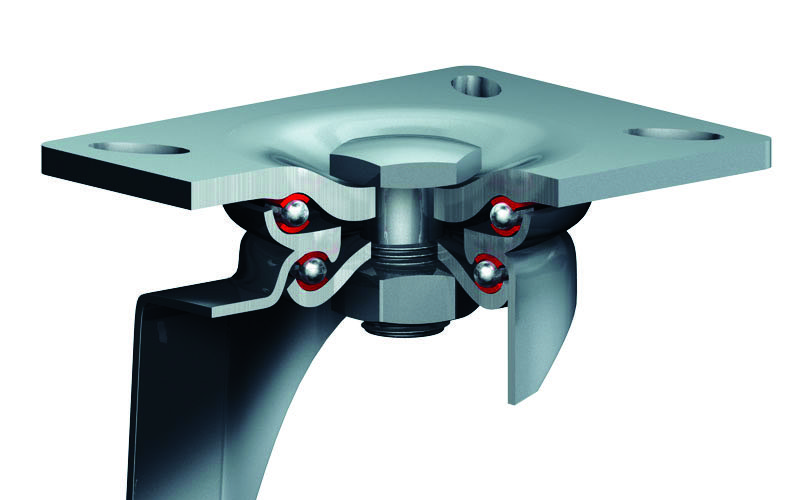

Finish: electro-zinc plated, hardened steel balls, double ball race – hardened steel sheet, with strong Kingpin bolted and locked – adjustable, thermoplastic dust protection ring and seal, wheel axle bolted, adjustable total lock – leading or trailing available

Cadenas Partcommunity-Portal

For a PDF with the technical description and detailed 3D CAD plans, please select the desired version. You can then download a PDF with the technical description or access detailed 3D CAD plans via our Cadenas Partcommunity portal.

The models have been carefully designed and validated for correctness. However, we take no responsibility for any incorrect or incomplete data.

Select version

54 of 54 items in this series are displayed.

Article number	Articel type	Wheel-Ø A x width B mm	Load Capacity kg	Overall height H mm	Dimension of top plate TP mm	Hole spacing HS mm	Hole-Ø HD mm	Swivel radius SR mm	Price €
PD 100 AK	Swivel castor	100x30	200	138	105x85	80x60	8,5	93	65,90
Heavy Duty Series PD, Wheel A Swivel castor Wheel-∅ x width [mm]: 100x30 Technische Daten Tragkraft kg 200 Bauhöhe H mm 138 Plattengröße TP mm 105x85 Lochabstand HS mm 80x60 Loch-Ø HD mm 8,5 Störkreisradius SR mm 93 Radlagerung Ball bearing PDF Data sheet 3D model (Cardenas Customer portal)
PDT 100 AK	Swivel castor with total lock	100x30	200	138	105x85	80x60	8,5	140	86,50
Heavy Duty Series PD, Wheel A Swivel castor with total lock Wheel-∅ x width [mm]: 100x30 Technische Daten Tragkraft kg 200 Bauhöhe H mm 138 Plattengröße TP mm 105x85 Lochabstand HS mm 80x60 Loch-Ø HD mm 8,5 Störkreisradius SR mm 140 Radlagerung Ball bearing PDF Data sheet 3D model (Cardenas Customer portal)
PDF 100 AK	Fixed castor	100x30	200	138	105x85	80x60	8,5		44,00
Heavy Duty Series PD, Wheel A Fixed castor Wheel-∅ x width [mm]: 100x30 Technische Daten Tragkraft kg 200 Bauhöhe H mm 138 Plattengröße TP mm 105x85 Lochabstand HS mm 80x60 Loch-Ø HD mm 8,5 Radlagerung Ball bearing PDF Data sheet 3D model (Cardenas Customer portal)
PD 100 AB	Swivel castor	100x30	200	138	105x85	80x60	8,5	93	57,50
Heavy Duty Series PD, Wheel A Swivel castor Wheel-∅ x width [mm]: 100x30 Technische Daten Tragkraft kg 200 Bauhöhe H mm 138 Plattengröße TP mm 105x85 Lochabstand HS mm 80x60 Loch-Ø HD mm 8,5 Störkreisradius SR mm 93 Radlagerung Roller bearing PDF Data sheet 3D model (Cardenas Customer portal)
PDT 100 AB	Swivel castor with total lock	100x30	200	138	105x85	80x60	8,5	140	78,10
Heavy Duty Series PD, Wheel A Swivel castor with total lock Wheel-∅ x width [mm]: 100x30 Technische Daten Tragkraft kg 200 Bauhöhe H mm 138 Plattengröße TP mm 105x85 Lochabstand HS mm 80x60 Loch-Ø HD mm 8,5 Störkreisradius SR mm 140 Radlagerung Roller bearing PDF Data sheet 3D model (Cardenas Customer portal)
PDF 100 AB	Fixed castor	100x30	200	138	105x85	80x60	8,5		35,40
Heavy Duty Series PD, Wheel A Fixed castor Wheel-∅ x width [mm]: 100x30 Technische Daten Tragkraft kg 200 Bauhöhe H mm 138 Plattengröße TP mm 105x85 Lochabstand HS mm 80x60 Loch-Ø HD mm 8,5 Radlagerung Roller bearing PDF Data sheet 3D model (Cardenas Customer portal)
PD 100 A	Swivel castor	100x30	200	138	105x85	80x60	8,5	93	54,20
Heavy Duty Series PD, Wheel A Swivel castor Wheel-∅ x width [mm]: 100x30 Technische Daten Tragkraft kg 200 Bauhöhe H mm 138 Plattengröße TP mm 105x85 Lochabstand HS mm 80x60 Loch-Ø HD mm 8,5 Störkreisradius SR mm 93 Radlagerung Nylon plain bearing PDF Data sheet 3D model (Cardenas Customer portal)
PDT 100 A	Swivel castor with total lock	100x30	200	138	105x85	80x60	8,5	140	74,80
Heavy Duty Series PD, Wheel A Swivel castor with total lock Wheel-∅ x width [mm]: 100x30 Technische Daten Tragkraft kg 200 Bauhöhe H mm 138 Plattengröße TP mm 105x85 Lochabstand HS mm 80x60 Loch-Ø HD mm 8,5 Störkreisradius SR mm 140 Radlagerung Nylon plain bearing PDF Data sheet 3D model (Cardenas Customer portal)
PDF 100 A	Fixed castor	100x30	200	138	105x85	80x60	8,5		31,40
Heavy Duty Series PD, Wheel A Fixed castor Wheel-∅ x width [mm]: 100x30 Technische Daten Tragkraft kg 200 Bauhöhe H mm 138 Plattengröße TP mm 105x85 Lochabstand HS mm 80x60 Loch-Ø HD mm 8,5 Radlagerung Nylon plain bearing PDF Data sheet 3D model (Cardenas Customer portal)
PD 125 AK	Swivel castor	125x30	250	164	135x110	105x80	10,5	106	75,20
Heavy Duty Series PD, Wheel A Swivel castor Wheel-∅ x width [mm]: 125x30 Technische Daten Tragkraft kg 250 Bauhöhe H mm 164 Plattengröße TP mm 135x110 Lochabstand HS mm 105x80 Loch-Ø HD mm 10,5 Störkreisradius SR mm 106 Radlagerung Ball bearing PDF Data sheet 3D model (Cardenas Customer portal)
PDT 125 AK	Swivel castor with total lock	125x30	250	164	135x110	105x80	10,5	140	95,90
Heavy Duty Series PD, Wheel A Swivel castor with total lock Wheel-∅ x width [mm]: 125x30 Technische Daten Tragkraft kg 250 Bauhöhe H mm 164 Plattengröße TP mm 135x110 Lochabstand HS mm 105x80 Loch-Ø HD mm 10,5 Störkreisradius SR mm 140 Radlagerung Ball bearing PDF Data sheet 3D model (Cardenas Customer portal)
PDF 125 AK	Fixed castor	125x30	250	164	135x110	105x80	10,5		54,70
Heavy Duty Series PD, Wheel A Fixed castor Wheel-∅ x width [mm]: 125x30 Technische Daten Tragkraft kg 250 Bauhöhe H mm 164 Plattengröße TP mm 135x110 Lochabstand HS mm 105x80 Loch-Ø HD mm 10,5 Radlagerung Ball bearing PDF Data sheet 3D model (Cardenas Customer portal)
PD 125 AB	Swivel castor	125x30	250	164	135x110	105x80	10,5	106	66,50
Heavy Duty Series PD, Wheel A Swivel castor Wheel-∅ x width [mm]: 125x30 Technische Daten Tragkraft kg 250 Bauhöhe H mm 164 Plattengröße TP mm 135x110 Lochabstand HS mm 105x80 Loch-Ø HD mm 10,5 Störkreisradius SR mm 106 Radlagerung Roller bearing PDF Data sheet 3D model (Cardenas Customer portal)
PDT 125 AB	Swivel castor with total lock	125x30	250	164	135x110	105x80	10,5	140	87,70
Heavy Duty Series PD, Wheel A Swivel castor with total lock Wheel-∅ x width [mm]: 125x30 Technische Daten Tragkraft kg 250 Bauhöhe H mm 164 Plattengröße TP mm 135x110 Lochabstand HS mm 105x80 Loch-Ø HD mm 10,5 Störkreisradius SR mm 140 Radlagerung Roller bearing PDF Data sheet 3D model (Cardenas Customer portal)
PDF 125 AB	Fixed castor	125x30	250	164	135x110	105x80	10,5		46,10
Heavy Duty Series PD, Wheel A Fixed castor Wheel-∅ x width [mm]: 125x30 Technische Daten Tragkraft kg 250 Bauhöhe H mm 164 Plattengröße TP mm 135x110 Lochabstand HS mm 105x80 Loch-Ø HD mm 10,5 Radlagerung Roller bearing PDF Data sheet 3D model (Cardenas Customer portal)
PD 125 A	Swivel castor	125x30	250	164	135x110	105x80	10,5	106	62,90
Heavy Duty Series PD, Wheel A Swivel castor Wheel-∅ x width [mm]: 125x30 Technische Daten Tragkraft kg 250 Bauhöhe H mm 164 Plattengröße TP mm 135x110 Lochabstand HS mm 105x80 Loch-Ø HD mm 10,5 Störkreisradius SR mm 106 Radlagerung Nylon plain bearing PDF Data sheet 3D model (Cardenas Customer portal)
PDT 125 A	Swivel castor with total lock	125x30	250	164	135x110	105x80	10,5	140	83,50
Heavy Duty Series PD, Wheel A Swivel castor with total lock Wheel-∅ x width [mm]: 125x30 Technische Daten Tragkraft kg 250 Bauhöhe H mm 164 Plattengröße TP mm 135x110 Lochabstand HS mm 105x80 Loch-Ø HD mm 10,5 Störkreisradius SR mm 140 Radlagerung Nylon plain bearing PDF Data sheet 3D model (Cardenas Customer portal)
PDF 125 A	Fixed castor	125x30	250	164	135x110	105x80	10,5		42,20
Heavy Duty Series PD, Wheel A Fixed castor Wheel-∅ x width [mm]: 125x30 Technische Daten Tragkraft kg 250 Bauhöhe H mm 164 Plattengröße TP mm 135x110 Lochabstand HS mm 105x80 Loch-Ø HD mm 10,5 Radlagerung Nylon plain bearing PDF Data sheet 3D model (Cardenas Customer portal)
PD 150 AK	Swivel castor	150x40	400	195	135x110	105x80	10,5	127	89,50
Heavy Duty Series PD, Wheel A Swivel castor Wheel-∅ x width [mm]: 150x40 Technische Daten Tragkraft kg 400 Bauhöhe H mm 195 Plattengröße TP mm 135x110 Lochabstand HS mm 105x80 Loch-Ø HD mm 10,5 Störkreisradius SR mm 127 Radlagerung Ball bearing PDF Data sheet 3D model (Cardenas Customer portal)
PDT 150 AK	Swivel castor with total lock	150x40	400	195	135x110	105x80	10,5	140	110,30
Heavy Duty Series PD, Wheel A Swivel castor with total lock Wheel-∅ x width [mm]: 150x40 Technische Daten Tragkraft kg 400 Bauhöhe H mm 195 Plattengröße TP mm 135x110 Lochabstand HS mm 105x80 Loch-Ø HD mm 10,5 Störkreisradius SR mm 140 Radlagerung Ball bearing PDF Data sheet 3D model (Cardenas Customer portal)
PDF 150 AK	Fixed castor	150x40	400	195	135x110	105x80	10,5		68,60
Heavy Duty Series PD, Wheel A Fixed castor Wheel-∅ x width [mm]: 150x40 Technische Daten Tragkraft kg 400 Bauhöhe H mm 195 Plattengröße TP mm 135x110 Lochabstand HS mm 105x80 Loch-Ø HD mm 10,5 Radlagerung Ball bearing PDF Data sheet 3D model (Cardenas Customer portal)
PD 150 AB	Swivel castor	150x40	400	195	135x110	105x80	10,5	127	82,50
Heavy Duty Series PD, Wheel A Swivel castor Wheel-∅ x width [mm]: 150x40 Technische Daten Tragkraft kg 400 Bauhöhe H mm 195 Plattengröße TP mm 135x110 Lochabstand HS mm 105x80 Loch-Ø HD mm 10,5 Störkreisradius SR mm 127 Radlagerung Roller bearing PDF Data sheet 3D model (Cardenas Customer portal)
PDT 150 AB	Swivel castor with total lock	150x40	400	195	135x110	105x80	10,5	140	102,90
Heavy Duty Series PD, Wheel A Swivel castor with total lock Wheel-∅ x width [mm]: 150x40 Technische Daten Tragkraft kg 400 Bauhöhe H mm 195 Plattengröße TP mm 135x110 Lochabstand HS mm 105x80 Loch-Ø HD mm 10,5 Störkreisradius SR mm 140 Radlagerung Roller bearing PDF Data sheet 3D model (Cardenas Customer portal)
PDF 150 AB	Fixed castor	150x40	400	195	135x110	105x80	10,5		61,40
Heavy Duty Series PD, Wheel A Fixed castor Wheel-∅ x width [mm]: 150x40 Technische Daten Tragkraft kg 400 Bauhöhe H mm 195 Plattengröße TP mm 135x110 Lochabstand HS mm 105x80 Loch-Ø HD mm 10,5 Radlagerung Roller bearing PDF Data sheet 3D model (Cardenas Customer portal)
PD 150 A	Swivel castor	150x40	400	195	135x110	105x80	10,5	127	77,80
Heavy Duty Series PD, Wheel A Swivel castor Wheel-∅ x width [mm]: 150x40 Technische Daten Tragkraft kg 400 Bauhöhe H mm 195 Plattengröße TP mm 135x110 Lochabstand HS mm 105x80 Loch-Ø HD mm 10,5 Störkreisradius SR mm 127 Radlagerung Nylon plain bearing PDF Data sheet 3D model (Cardenas Customer portal)
PDT 150 A	Swivel castor with total lock	150x40	400	195	135x110	105x80	10,5	140	98,60
Heavy Duty Series PD, Wheel A Swivel castor with total lock Wheel-∅ x width [mm]: 150x40 Technische Daten Tragkraft kg 400 Bauhöhe H mm 195 Plattengröße TP mm 135x110 Lochabstand HS mm 105x80 Loch-Ø HD mm 10,5 Störkreisradius SR mm 140 Radlagerung Nylon plain bearing PDF Data sheet 3D model (Cardenas Customer portal)
PDF 150 A	Fixed castor	150x40	400	195	135x110	105x80	10,5		57,50
Heavy Duty Series PD, Wheel A Fixed castor Wheel-∅ x width [mm]: 150x40 Technische Daten Tragkraft kg 400 Bauhöhe H mm 195 Plattengröße TP mm 135x110 Lochabstand HS mm 105x80 Loch-Ø HD mm 10,5 Radlagerung Nylon plain bearing PDF Data sheet 3D model (Cardenas Customer portal)
PD 175 AK	Swivel castor	175x40	500	238	135x110	105x80	12,5	154	121,20
Heavy Duty Series PD, Wheel A Swivel castor Wheel-∅ x width [mm]: 175x40 Technische Daten Tragkraft kg 500 Bauhöhe H mm 238 Plattengröße TP mm 135x110 Lochabstand HS mm 105x80 Loch-Ø HD mm 12,5 Störkreisradius SR mm 154 Radlagerung Ball bearing PDF Data sheet 3D model (Cardenas Customer portal)
PDT 175 AK	Swivel castor with total lock	175x40	500	238	135x110	105x80	12,5	170	158,60
Heavy Duty Series PD, Wheel A Swivel castor with total lock Wheel-∅ x width [mm]: 175x40 Technische Daten Tragkraft kg 500 Bauhöhe H mm 238 Plattengröße TP mm 135x110 Lochabstand HS mm 105x80 Loch-Ø HD mm 12,5 Störkreisradius SR mm 170 Radlagerung Ball bearing PDF Data sheet 3D model (Cardenas Customer portal)
PDF 175 AK	Fixed castor	175x40	500	238	135x110	105x80	12,5		88,00
Heavy Duty Series PD, Wheel A Fixed castor Wheel-∅ x width [mm]: 175x40 Technische Daten Tragkraft kg 500 Bauhöhe H mm 238 Plattengröße TP mm 135x110 Lochabstand HS mm 105x80 Loch-Ø HD mm 12,5 Radlagerung Ball bearing PDF Data sheet 3D model (Cardenas Customer portal)
PD 175 AB	Swivel castor	175x40	500	238	135x110	105x80	12,5	154	107,70
Heavy Duty Series PD, Wheel A Swivel castor Wheel-∅ x width [mm]: 175x40 Technische Daten Tragkraft kg 500 Bauhöhe H mm 238 Plattengröße TP mm 135x110 Lochabstand HS mm 105x80 Loch-Ø HD mm 12,5 Störkreisradius SR mm 154 Radlagerung Roller bearing PDF Data sheet 3D model (Cardenas Customer portal)
PDT 175 AB	Swivel castor with total lock	175x40	500	238	135x110	105x80	12,5	170	146,10
Heavy Duty Series PD, Wheel A Swivel castor with total lock Wheel-∅ x width [mm]: 175x40 Technische Daten Tragkraft kg 500 Bauhöhe H mm 238 Plattengröße TP mm 135x110 Lochabstand HS mm 105x80 Loch-Ø HD mm 12,5 Störkreisradius SR mm 170 Radlagerung Roller bearing PDF Data sheet 3D model (Cardenas Customer portal)
PDF 175 AB	Fixed castor	175x40	500	238	135x110	105x80	12,5		74,80
Heavy Duty Series PD, Wheel A Fixed castor Wheel-∅ x width [mm]: 175x40 Technische Daten Tragkraft kg 500 Bauhöhe H mm 238 Plattengröße TP mm 135x110 Lochabstand HS mm 105x80 Loch-Ø HD mm 12,5 Radlagerung Roller bearing PDF Data sheet 3D model (Cardenas Customer portal)
PD 175 A	Swivel castor	175x40	500	238	135x110	105x80	12,5	154	102,90
Heavy Duty Series PD, Wheel A Swivel castor Wheel-∅ x width [mm]: 175x40 Technische Daten Tragkraft kg 500 Bauhöhe H mm 238 Plattengröße TP mm 135x110 Lochabstand HS mm 105x80 Loch-Ø HD mm 12,5 Störkreisradius SR mm 154 Radlagerung Nylon plain bearing PDF Data sheet 3D model (Cardenas Customer portal)
PDT 175 A	Swivel castor with total lock	175x40	500	238	135x110	105x80	12,5	170	141,30
Heavy Duty Series PD, Wheel A Swivel castor with total lock Wheel-∅ x width [mm]: 175x40 Technische Daten Tragkraft kg 500 Bauhöhe H mm 238 Plattengröße TP mm 135x110 Lochabstand HS mm 105x80 Loch-Ø HD mm 12,5 Störkreisradius SR mm 170 Radlagerung Nylon plain bearing PDF Data sheet 3D model (Cardenas Customer portal)
PDF 175 A	Fixed castor	175x40	500	238	135x110	105x80	12,5		70,10
Heavy Duty Series PD, Wheel A Fixed castor Wheel-∅ x width [mm]: 175x40 Technische Daten Tragkraft kg 500 Bauhöhe H mm 238 Plattengröße TP mm 135x110 Lochabstand HS mm 105x80 Loch-Ø HD mm 12,5 Radlagerung Nylon plain bearing PDF Data sheet 3D model (Cardenas Customer portal)
PD 200 AK	Swivel castor	200x50	600	250	135x110	105x80	12,5	167	138,50
Heavy Duty Series PD, Wheel A Swivel castor Wheel-∅ x width [mm]: 200x50 Technische Daten Tragkraft kg 600 Bauhöhe H mm 250 Plattengröße TP mm 135x110 Lochabstand HS mm 105x80 Loch-Ø HD mm 12,5 Störkreisradius SR mm 167 Radlagerung Ball bearing PDF Data sheet 3D model (Cardenas Customer portal)
PDT 200 AK	Swivel castor with total lock	200x50	600	250	135x110	105x80	12,5	170	176,20
Heavy Duty Series PD, Wheel A Swivel castor with total lock Wheel-∅ x width [mm]: 200x50 Technische Daten Tragkraft kg 600 Bauhöhe H mm 250 Plattengröße TP mm 135x110 Lochabstand HS mm 105x80 Loch-Ø HD mm 12,5 Störkreisradius SR mm 170 Radlagerung Ball bearing PDF Data sheet 3D model (Cardenas Customer portal)
PDF 200 AK	Fixed castor	200x50	600	250	135x110	105x80	12,5		105,20
Heavy Duty Series PD, Wheel A Fixed castor Wheel-∅ x width [mm]: 200x50 Technische Daten Tragkraft kg 600 Bauhöhe H mm 250 Plattengröße TP mm 135x110 Lochabstand HS mm 105x80 Loch-Ø HD mm 12,5 Radlagerung Ball bearing PDF Data sheet 3D model (Cardenas Customer portal)
PD 200 AB	Swivel castor	200x50	600	250	135x110	105x80	12,5	167	129,60
Heavy Duty Series PD, Wheel A Swivel castor Wheel-∅ x width [mm]: 200x50 Technische Daten Tragkraft kg 600 Bauhöhe H mm 250 Plattengröße TP mm 135x110 Lochabstand HS mm 105x80 Loch-Ø HD mm 12,5 Störkreisradius SR mm 167 Radlagerung Roller bearing PDF Data sheet 3D model (Cardenas Customer portal)
PDT 200 AB	Swivel castor with total lock	200x50	600	250	135x110	105x80	12,5	170	167,60
Heavy Duty Series PD, Wheel A Swivel castor with total lock Wheel-∅ x width [mm]: 200x50 Technische Daten Tragkraft kg 600 Bauhöhe H mm 250 Plattengröße TP mm 135x110 Lochabstand HS mm 105x80 Loch-Ø HD mm 12,5 Störkreisradius SR mm 170 Radlagerung Roller bearing PDF Data sheet 3D model (Cardenas Customer portal)
PDF 200 AB	Fixed castor	200x50	600	250	135x110	105x80	12,5		97,60
Heavy Duty Series PD, Wheel A Fixed castor Wheel-∅ x width [mm]: 200x50 Technische Daten Tragkraft kg 600 Bauhöhe H mm 250 Plattengröße TP mm 135x110 Lochabstand HS mm 105x80 Loch-Ø HD mm 12,5 Radlagerung Roller bearing PDF Data sheet 3D model (Cardenas Customer portal)
PD 200 A	Swivel castor	200x50	600	250	135x110	105x80	12,5	167	123,00
Heavy Duty Series PD, Wheel A Swivel castor Wheel-∅ x width [mm]: 200x50 Technische Daten Tragkraft kg 600 Bauhöhe H mm 250 Plattengröße TP mm 135x110 Lochabstand HS mm 105x80 Loch-Ø HD mm 12,5 Störkreisradius SR mm 167 Radlagerung Nylon plain bearing PDF Data sheet 3D model (Cardenas Customer portal)
PDT 200 A	Swivel castor with total lock	200x50	600	250	135x110	105x80	12,5	170	161,00
Heavy Duty Series PD, Wheel A Swivel castor with total lock Wheel-∅ x width [mm]: 200x50 Technische Daten Tragkraft kg 600 Bauhöhe H mm 250 Plattengröße TP mm 135x110 Lochabstand HS mm 105x80 Loch-Ø HD mm 12,5 Störkreisradius SR mm 170 Radlagerung Nylon plain bearing PDF Data sheet 3D model (Cardenas Customer portal)
PDF 200 A	Fixed castor	200x50	600	250	135x110	105x80	12,5		90,80
Heavy Duty Series PD, Wheel A Fixed castor Wheel-∅ x width [mm]: 200x50 Technische Daten Tragkraft kg 600 Bauhöhe H mm 250 Plattengröße TP mm 135x110 Lochabstand HS mm 105x80 Loch-Ø HD mm 12,5 Radlagerung Nylon plain bearing PDF Data sheet 3D model (Cardenas Customer portal)
PD 225 AK	Swivel castor	225x50	700	293	135x110	105x80	12,5	185	157,00
Heavy Duty Series PD, Wheel A Swivel castor Wheel-∅ x width [mm]: 225x50 Technische Daten Tragkraft kg 700 Bauhöhe H mm 293 Plattengröße TP mm 135x110 Lochabstand HS mm 105x80 Loch-Ø HD mm 12,5 Störkreisradius SR mm 185 Radlagerung Ball bearing PDF Data sheet 3D model (Cardenas Customer portal)
PDT 225 AK	Swivel castor with total lock	225x50	700	293	135x110	105x80	12,5	185	194,90
Heavy Duty Series PD, Wheel A Swivel castor with total lock Wheel-∅ x width [mm]: 225x50 Technische Daten Tragkraft kg 700 Bauhöhe H mm 293 Plattengröße TP mm 135x110 Lochabstand HS mm 105x80 Loch-Ø HD mm 12,5 Störkreisradius SR mm 185 Radlagerung Ball bearing PDF Data sheet 3D model (Cardenas Customer portal)
PDF 225 AK	Fixed castor	225x50	700	293	135x110	105x80	12,5		132,60
Heavy Duty Series PD, Wheel A Fixed castor Wheel-∅ x width [mm]: 225x50 Technische Daten Tragkraft kg 700 Bauhöhe H mm 293 Plattengröße TP mm 135x110 Lochabstand HS mm 105x80 Loch-Ø HD mm 12,5 Radlagerung Ball bearing PDF Data sheet 3D model (Cardenas Customer portal)
PD 225 AB	Swivel castor	225x50	700	293	135x110	105x80	12,5	185	150,40
Heavy Duty Series PD, Wheel A Swivel castor Wheel-∅ x width [mm]: 225x50 Technische Daten Tragkraft kg 700 Bauhöhe H mm 293 Plattengröße TP mm 135x110 Lochabstand HS mm 105x80 Loch-Ø HD mm 12,5 Störkreisradius SR mm 185 Radlagerung Roller bearing PDF Data sheet 3D model (Cardenas Customer portal)
PDT 225 AB	Swivel castor with total lock	225x50	700	293	135x110	105x80	12,5	185	187,90
Heavy Duty Series PD, Wheel A Swivel castor with total lock Wheel-∅ x width [mm]: 225x50 Technische Daten Tragkraft kg 700 Bauhöhe H mm 293 Plattengröße TP mm 135x110 Lochabstand HS mm 105x80 Loch-Ø HD mm 12,5 Störkreisradius SR mm 185 Radlagerung Roller bearing PDF Data sheet 3D model (Cardenas Customer portal)
PDF 225 AB	Fixed castor	225x50	700	293	135x110	105x80	12,5		126,10
Heavy Duty Series PD, Wheel A Fixed castor Wheel-∅ x width [mm]: 225x50 Technische Daten Tragkraft kg 700 Bauhöhe H mm 293 Plattengröße TP mm 135x110 Lochabstand HS mm 105x80 Loch-Ø HD mm 12,5 Radlagerung Roller bearing PDF Data sheet 3D model (Cardenas Customer portal)
PD 225 A	Swivel castor	225x50	700	293	135x110	105x80	12,5	185	141,50
Heavy Duty Series PD, Wheel A Swivel castor Wheel-∅ x width [mm]: 225x50 Technische Daten Tragkraft kg 700 Bauhöhe H mm 293 Plattengröße TP mm 135x110 Lochabstand HS mm 105x80 Loch-Ø HD mm 12,5 Störkreisradius SR mm 185 Radlagerung Nylon plain bearing PDF Data sheet 3D model (Cardenas Customer portal)
PDT 225 A	Swivel castor with total lock	225x50	700	293	135x110	105x80	12,5	185	179,80
Heavy Duty Series PD, Wheel A Swivel castor with total lock Wheel-∅ x width [mm]: 225x50 Technische Daten Tragkraft kg 700 Bauhöhe H mm 293 Plattengröße TP mm 135x110 Lochabstand HS mm 105x80 Loch-Ø HD mm 12,5 Störkreisradius SR mm 185 Radlagerung Nylon plain bearing PDF Data sheet 3D model (Cardenas Customer portal)
PDF 225 A	Fixed castor	225x50	700	293	135x110	105x80	12,5		117,40
Heavy Duty Series PD, Wheel A Fixed castor Wheel-∅ x width [mm]: 225x50 Technische Daten Tragkraft kg 700 Bauhöhe H mm 293 Plattengröße TP mm 135x110 Lochabstand HS mm 105x80 Loch-Ø HD mm 12,5 Radlagerung Nylon plain bearing PDF Data sheet 3D model (Cardenas Customer portal)

Suitable accessories

Counter plate 105x85x3,5 mm
Art.No. GEGENPLATTE 1

blank
Stahl blank
105x85x3,5
80x60

Qty € 3,90/Pc., exkl. Shipping
Counter plate 135x110x5 mm
Art.No. GEGENPLATTE 2

blank
Stahl blank
135x110x5
105x80

Qty € 6,70/Pc., exkl. Shipping
Counter plate 135x110x8 mm
Art.No. GEGENPLATTE 3

blank
Stahl blank
135x110x8
105x80

Qty € 10,00/Pc., exkl. Shipping
Directional lock DL3
Art.No. DL 3

360 Grad
Stahlblech verzinkt
135x110
105x80

Qty € 20,40/Pc., exkl. Shipping
Fixing Bolt M8x20 mm
Art.No. M 8X20

verzinkt
Stahl 8.8 verzinkt
M8x20

Qty € 0,20/Pc., exkl. Shipping
Fixing bolt M10x20 mm
Art.No. M 10X20

verzinkt
Stahl 8.8 verzinkt
M10x20

Qty € 0,40/Pc., exkl. Shipping
Fixing Bolt M12x25mm
Art.No. M 12X25

verzinkt
Stahl 8.8 verzinkt
M12x25

Qty € 0,70/Pc., exkl. Shipping
Foot guard zinc plated
Art.No. FUSSSCHUTZ VZ

Qty € auf Anfrage/Pc., exkl. Shipping

Similar products

Heavy Duty
Serie PD, Rad Z

max 850 kg

150-500 mm

Wheel Tread: Cast polyurethane, 95±3 Shore A

Fork Finish: electro-zinc plated, hardened steel balls, double ball race – hardened steel sheet, with strong Kingpin bolted and locked – adjustable, thermoplastic dust protection ring and seal, wheel axle bolted, adjustable total lock – leading or trailing available
Heavy Duty
Serie PD, Rad TL

max 800 kg

150-500 mm

Wheel Tread: cast polyurethane, 95±3 Shore A

Fork Finish: electro-zinc plated, hardened steel balls, double ball race – hardened steel sheet, with strong Kingpin bolted and locked – adjustable, thermoplastic dust protection ring and seal, wheel axle bolted, adjustable total lock – leading or trailing available
Heavy Duty
Serie PD, Rad TLSBA

max 775 kg

150-500 mm

Wheel Tread: cast polyurethane, 85 ± 2 Shore A crowned - soft

Fork Finish: electro-zinc plated, hardened steel balls, double ball race – hardened steel sheet, with strong Kingpin bolted and locked – adjustable, thermoplastic dust protection ring and seal, wheel axle bolted, adjustable total lock – leading or trailing available
Heavy Duty
Serie PD, Rad AL

max 550 kg

150-500 mm

Wheel Coated in injected polyurethane, 58±3 Shore D

Fork Finish: electro-zinc plated, hardened steel balls, double ball race – hardened steel sheet, with strong Kingpin bolted and locked – adjustable, thermoplastic dust protection ring and seal, wheel axle bolted, adjustable total lock – leading or trailing available
Heavy Duty
Serie PD, Rad EGBA

max 450 kg

150-500 mm

Wheel SUPER-Elastic solid rubber tyre black 55 ± 3 Shore A soft, crowned treat

Fork Finish: electro-zinc plated, hardened steel balls, double ball race – hardened steel sheet, with strong Kingpin bolted and locked – adjustable, thermoplastic dust protection ring and seal, wheel axle bolted, adjustable total lock – leading or trailing available
