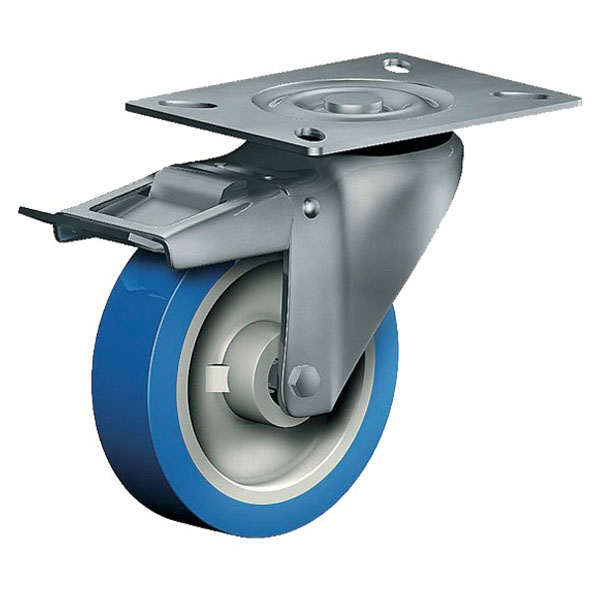

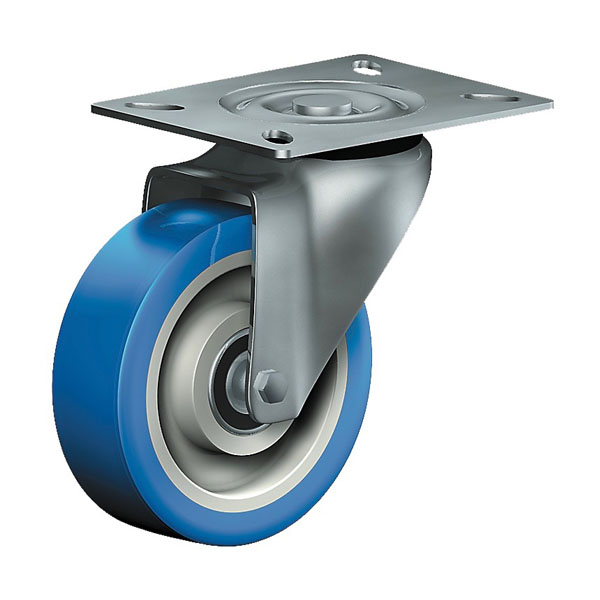

Cast soft polyurethane coating, 87±3 Shore A High quality nylon wheel centre
Fork material

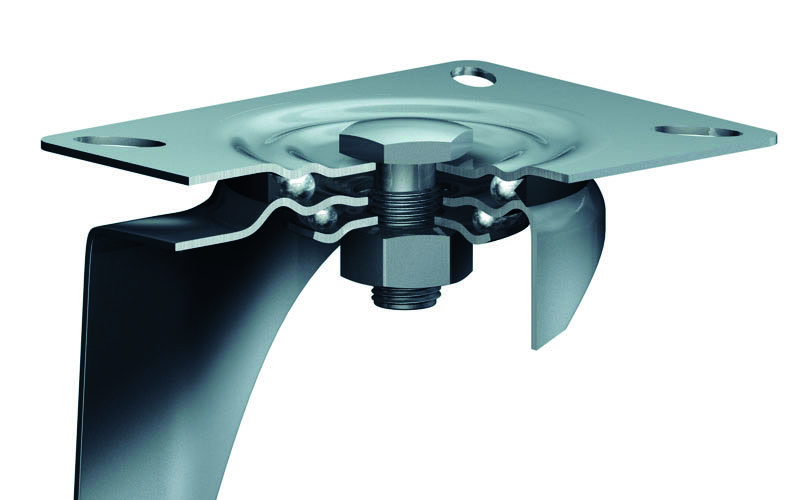

Finish: Polished stainless steel swivel fork AISI 304, stainless steel Kingpin AISI 303 riveted to the top plate, stainless steel balls AISI 420, thermoplastic dust seal (water proof), self-locking stainless steel nut, adjustable total lock
Documents/CAD
Cadenas Partcommunity-Portal
For a PDF with the technical description and detailed 3D CAD plans, please select the desired version. You can then download a PDF with the technical description or access detailed 3D CAD plans via our Cadenas Partcommunity portal.
The models have been carefully designed and validated for correctness. However, we take no responsibility for any incorrect or incomplete data.
Fork Finish: Polished stainless steel swivel fork AISI 304, stainless steel Kingpin AISI 303 riveted to the top plate, stainless steel balls AISI 420, thermoplastic dust seal (water proof), self-locking stainless steel nut, adjustable total lock
Stainless Steel
Serie IP,
Rad AEL
max 500 kg
150-500 mm
Wheel coated in polyurethane, 90±3 Shore A elecrically conductive <104Ω
Fork Finish: Polished stainless steel swivel fork AISI 304, stainless steel Kingpin AISI 303 riveted to the top plate, stainless steel balls AISI 420, thermoplastic dust seal (water proof), self-locking stainless steel nut, adjustable total lock
Stainless Steel
Serie IP,
Rad RN
max 480 kg
150-500 mm
Wheel Elastic solid rubber tyre, blue, 73±5 Shore A, vulcanised on wheel centre
Fork Finish: Polished stainless steel swivel fork AISI 304, stainless steel Kingpin AISI 303 riveted to the top plate, stainless steel balls AISI 420, thermoplastic dust seal (water proof), self-locking stainless steel nut, adjustable total lock
Stainless Steel
Serie IP,
Rad P
max 600 kg
150-500 mm
Wheel Casted high quality nylon wheel
Fork Finish: Polished stainless steel swivel fork AISI 304, stainless steel Kingpin AISI 303 riveted to the top plate, stainless steel balls AISI 420, thermoplastic dust seal (water proof), self-locking stainless steel nut, adjustable total lock
