Transport Series CD, Wheel P

 PDF product sheet

max 300 kg
-30 °C - +80 °C
80-200 mm

++

swivels easily
+++

wear resistant
++

shock proof
++

floor protective
++

weather proof

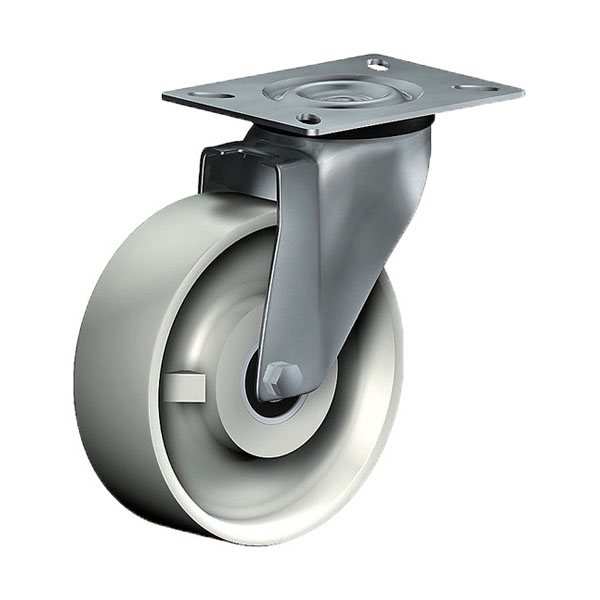

Swivel Castor

Show dimensions

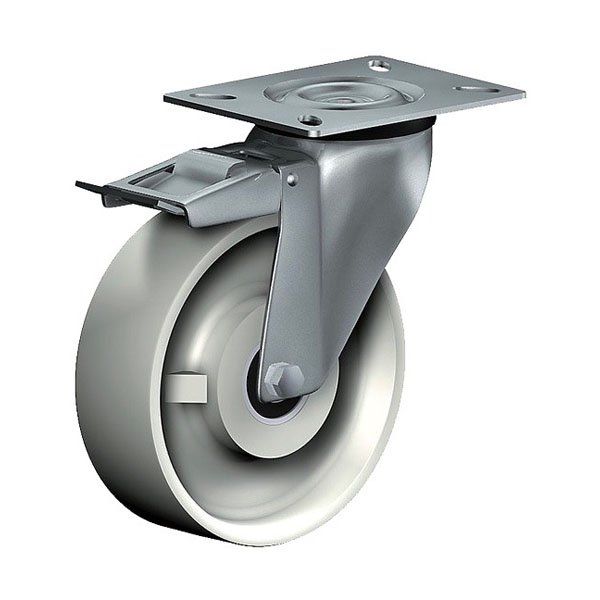

Swivel Castor With Total Lock

Show dimensions

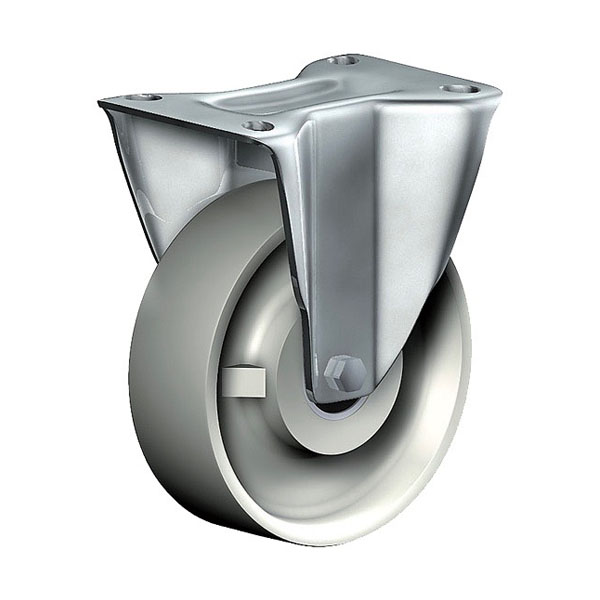

Fixed Castor

Show dimensions

Select the required versions in order to show them already filtered in the following table.

Floor condition

PVC/Concrete
Carpet
Asphalt

Advantages

easy running on smooth floors
impact proof
high abrasion resistance
easy to clean
high chemical resistance

Applications

Metal-Technology
Workshops
Delivery containers
Ingredient containers
Dollies
Carpentry
Building-Industry

Material

Casted high quality nylon wheel

Fork material

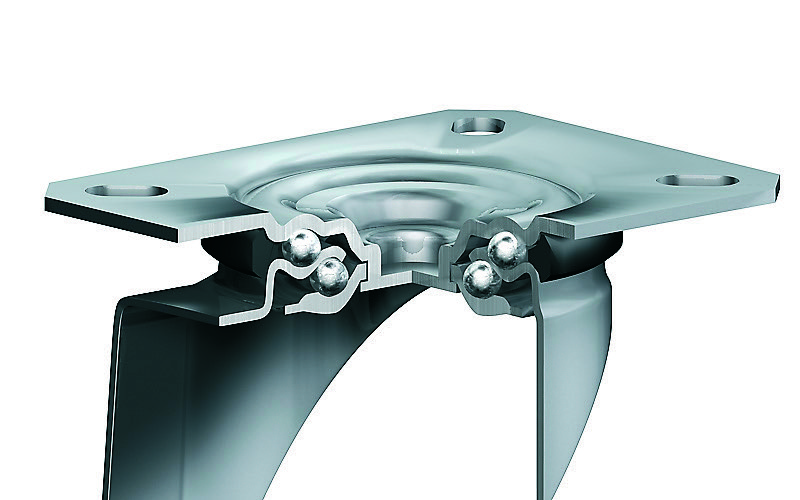

Finish: electro-zinc plated, double ball bearing – revited, hardened steel balls thermoplastic dust protection ring, wheel axle bolted, total lock

Cadenas Partcommunity-Portal

For a PDF with the technical description and detailed 3D CAD plans, please select the desired version. You can then download a PDF with the technical description or access detailed 3D CAD plans via our Cadenas Partcommunity portal.

The models have been carefully designed and validated for correctness. However, we take no responsibility for any incorrect or incomplete data.

Select version

84 of 84 items in this series are displayed.

Article number	Articel type	Wheel-Ø A x width B mm	Load Capacity kg	Overall height H mm	Dimension of top plate TP mm	Hole spacing HS mm	Hole-Ø HD mm	Swivel radius SR mm	Price €
CD 80 PK	Swivel castor	80x30	120	106	102x83	80x60	9	75	43,50
Transport Series CD, Wheel P Swivel castor Wheel-∅ x width [mm]: 80x30 Technische Daten Tragkraft kg 120 Bauhöhe H mm 106 Plattengröße TP mm 102x83 Lochabstand HS mm 80x60 Loch-Ø HD mm 9 Störkreisradius SR mm 75 Radlagerung Ball bearing PDF Data sheet 3D model (Cardenas Customer portal)
CDT 80 PK	Swivel castor with total lock	80x30	120	106	102x83	80x60	9	108	55,50
Transport Series CD, Wheel P Swivel castor with total lock Wheel-∅ x width [mm]: 80x30 Technische Daten Tragkraft kg 120 Bauhöhe H mm 106 Plattengröße TP mm 102x83 Lochabstand HS mm 80x60 Loch-Ø HD mm 9 Störkreisradius SR mm 108 Radlagerung Ball bearing PDF Data sheet 3D model (Cardenas Customer portal)
CDF 80 PK	Fixed castor	80x30	120	106	102x83	80x60	9		35,90
Transport Series CD, Wheel P Fixed castor Wheel-∅ x width [mm]: 80x30 Technische Daten Tragkraft kg 120 Bauhöhe H mm 106 Plattengröße TP mm 102x83 Lochabstand HS mm 80x60 Loch-Ø HD mm 9 Radlagerung Ball bearing PDF Data sheet 3D model (Cardenas Customer portal)
CD 80 PB	Swivel castor	80x30	120	106	102x83	80x60	9	75	26,20
Transport Series CD, Wheel P Swivel castor Wheel-∅ x width [mm]: 80x30 Technische Daten Tragkraft kg 120 Bauhöhe H mm 106 Plattengröße TP mm 102x83 Lochabstand HS mm 80x60 Loch-Ø HD mm 9 Störkreisradius SR mm 75 Radlagerung Roller bearing PDF Data sheet 3D model (Cardenas Customer portal)
CDT 80 PB	Swivel castor with total lock	80x30	120	106	102x83	80x60	9	108	39,00
Transport Series CD, Wheel P Swivel castor with total lock Wheel-∅ x width [mm]: 80x30 Technische Daten Tragkraft kg 120 Bauhöhe H mm 106 Plattengröße TP mm 102x83 Lochabstand HS mm 80x60 Loch-Ø HD mm 9 Störkreisradius SR mm 108 Radlagerung Roller bearing PDF Data sheet 3D model (Cardenas Customer portal)
CDF 80 PB	Fixed castor	80x30	120	106	102x83	80x60	9		18,60
Transport Series CD, Wheel P Fixed castor Wheel-∅ x width [mm]: 80x30 Technische Daten Tragkraft kg 120 Bauhöhe H mm 106 Plattengröße TP mm 102x83 Lochabstand HS mm 80x60 Loch-Ø HD mm 9 Radlagerung Roller bearing PDF Data sheet 3D model (Cardenas Customer portal)
CD 80 P	Swivel castor	80x30	120	106	102x83	80x60	9	75	20,40
Transport Series CD, Wheel P Swivel castor Wheel-∅ x width [mm]: 80x30 Technische Daten Tragkraft kg 120 Bauhöhe H mm 106 Plattengröße TP mm 102x83 Lochabstand HS mm 80x60 Loch-Ø HD mm 9 Störkreisradius SR mm 75 Radlagerung Nylon plain bearing PDF Data sheet 3D model (Cardenas Customer portal)
CDT 80 P	Swivel castor with total lock	80x30	120	106	102x83	80x60	9	108	33,60
Transport Series CD, Wheel P Swivel castor with total lock Wheel-∅ x width [mm]: 80x30 Technische Daten Tragkraft kg 120 Bauhöhe H mm 106 Plattengröße TP mm 102x83 Lochabstand HS mm 80x60 Loch-Ø HD mm 9 Störkreisradius SR mm 108 Radlagerung Nylon plain bearing PDF Data sheet 3D model (Cardenas Customer portal)
CDF 80 P	Fixed castor	80x30	120	106	102x83	80x60	9		12,60
Transport Series CD, Wheel P Fixed castor Wheel-∅ x width [mm]: 80x30 Technische Daten Tragkraft kg 120 Bauhöhe H mm 106 Plattengröße TP mm 102x83 Lochabstand HS mm 80x60 Loch-Ø HD mm 9 Radlagerung Nylon plain bearing PDF Data sheet 3D model (Cardenas Customer portal)
CD 100 PK	Swivel castor	100x30	120	128	102x83	80x60	9	88	46,10
Transport Series CD, Wheel P Swivel castor Wheel-∅ x width [mm]: 100x30 Technische Daten Tragkraft kg 120 Bauhöhe H mm 128 Plattengröße TP mm 102x83 Lochabstand HS mm 80x60 Loch-Ø HD mm 9 Störkreisradius SR mm 88 Radlagerung Ball bearing PDF Data sheet 3D model (Cardenas Customer portal)
CDT 100 PK	Swivel castor with total lock	100x30	120	128	102x83	80x60	9	108	58,60
Transport Series CD, Wheel P Swivel castor with total lock Wheel-∅ x width [mm]: 100x30 Technische Daten Tragkraft kg 120 Bauhöhe H mm 128 Plattengröße TP mm 102x83 Lochabstand HS mm 80x60 Loch-Ø HD mm 9 Störkreisradius SR mm 108 Radlagerung Ball bearing PDF Data sheet 3D model (Cardenas Customer portal)
CDF 100 PK	Fixed castor	100x30	120	128	102x83	80x60	9		38,60
Transport Series CD, Wheel P Fixed castor Wheel-∅ x width [mm]: 100x30 Technische Daten Tragkraft kg 120 Bauhöhe H mm 128 Plattengröße TP mm 102x83 Lochabstand HS mm 80x60 Loch-Ø HD mm 9 Radlagerung Ball bearing 3D model (Cardenas Customer portal)
CD 100 PB	Swivel castor	100x30	120	128	102x83	80x60	9	88	28,30
Transport Series CD, Wheel P Swivel castor Wheel-∅ x width [mm]: 100x30 Technische Daten Tragkraft kg 120 Bauhöhe H mm 128 Plattengröße TP mm 102x83 Lochabstand HS mm 80x60 Loch-Ø HD mm 9 Störkreisradius SR mm 88 Radlagerung Roller bearing PDF Data sheet 3D model (Cardenas Customer portal)
CDT 100 PB	Swivel castor with total lock	100x30	120	128	102x83	80x60	9	108	40,40
Transport Series CD, Wheel P Swivel castor with total lock Wheel-∅ x width [mm]: 100x30 Technische Daten Tragkraft kg 120 Bauhöhe H mm 128 Plattengröße TP mm 102x83 Lochabstand HS mm 80x60 Loch-Ø HD mm 9 Störkreisradius SR mm 108 Radlagerung Roller bearing PDF Data sheet 3D model (Cardenas Customer portal)
CDF 100 PB	Fixed castor	100x30	120	128	102x83	80x60	9		20,50
Transport Series CD, Wheel P Fixed castor Wheel-∅ x width [mm]: 100x30 Technische Daten Tragkraft kg 120 Bauhöhe H mm 128 Plattengröße TP mm 102x83 Lochabstand HS mm 80x60 Loch-Ø HD mm 9 Radlagerung Roller bearing PDF Data sheet 3D model (Cardenas Customer portal)
CD 100 PL	Swivel castor	100x30	120	128	102x83	80x60	9	88	22,10
Transport Series CD, Wheel P Swivel castor Wheel-∅ x width [mm]: 100x30 Technische Daten Tragkraft kg 120 Bauhöhe H mm 128 Plattengröße TP mm 102x83 Lochabstand HS mm 80x60 Loch-Ø HD mm 9 Störkreisradius SR mm 88 Radlagerung Nylon plain bearing PDF Data sheet 3D model (Cardenas Customer portal)
CDT 100 PL	Swivel castor with total lock	100x30	120	128	102x83	80x60	9	108	35,00
Transport Series CD, Wheel P Swivel castor with total lock Wheel-∅ x width [mm]: 100x30 Technische Daten Tragkraft kg 120 Bauhöhe H mm 128 Plattengröße TP mm 102x83 Lochabstand HS mm 80x60 Loch-Ø HD mm 9 Störkreisradius SR mm 108 Radlagerung Nylon plain bearing PDF Data sheet 3D model (Cardenas Customer portal)
CDF 100 PL	Fixed castor	100x30	120	128	102x83	80x60	9		14,90
Transport Series CD, Wheel P Fixed castor Wheel-∅ x width [mm]: 100x30 Technische Daten Tragkraft kg 120 Bauhöhe H mm 128 Plattengröße TP mm 102x83 Lochabstand HS mm 80x60 Loch-Ø HD mm 9 Radlagerung Nylon plain bearing PDF Data sheet 3D model (Cardenas Customer portal)
CS 100 PB	Swivel castor	100x40	200	129	102x83	80x60	9	99	30,70
Transport Series CD, Wheel P Swivel castor Wheel-∅ x width [mm]: 100x40 Technische Daten Tragkraft kg 200 Bauhöhe H mm 129 Plattengröße TP mm 102x83 Lochabstand HS mm 80x60 Loch-Ø HD mm 9 Störkreisradius SR mm 99 Radlagerung Roller bearing PDF Data sheet 3D model (Cardenas Customer portal)
CST 100 PB	Swivel castor with total lock	100x40	200	129	102x83	80x60	9	140	43,40
Transport Series CD, Wheel P Swivel castor with total lock Wheel-∅ x width [mm]: 100x40 Technische Daten Tragkraft kg 200 Bauhöhe H mm 129 Plattengröße TP mm 102x83 Lochabstand HS mm 80x60 Loch-Ø HD mm 9 Störkreisradius SR mm 140 Radlagerung Roller bearing PDF Data sheet 3D model (Cardenas Customer portal)
CSF 100 PB	Fixed castor	100x40	200	129	102x83	80x60	9		21,40
Transport Series CD, Wheel P Fixed castor Wheel-∅ x width [mm]: 100x40 Technische Daten Tragkraft kg 200 Bauhöhe H mm 129 Plattengröße TP mm 102x83 Lochabstand HS mm 80x60 Loch-Ø HD mm 9 Radlagerung Roller bearing PDF Data sheet 3D model (Cardenas Customer portal)
CS 100 P	Swivel castor	100x40	200	129	102x83	80x60	9	99	27,00
Transport Series CD, Wheel P Swivel castor Wheel-∅ x width [mm]: 100x40 Technische Daten Tragkraft kg 200 Bauhöhe H mm 129 Plattengröße TP mm 102x83 Lochabstand HS mm 80x60 Loch-Ø HD mm 9 Störkreisradius SR mm 99 Radlagerung Nylon plain bearing PDF Data sheet 3D model (Cardenas Customer portal)
CST 100 P	Swivel castor with total lock	100x40	200	129	102x83	80x60	9	140	37,70
Transport Series CD, Wheel P Swivel castor with total lock Wheel-∅ x width [mm]: 100x40 Technische Daten Tragkraft kg 200 Bauhöhe H mm 129 Plattengröße TP mm 102x83 Lochabstand HS mm 80x60 Loch-Ø HD mm 9 Störkreisradius SR mm 140 Radlagerung Nylon plain bearing PDF Data sheet 3D model (Cardenas Customer portal)
CSF 100 P	Fixed castor	100x40	200	129	102x83	80x60	9		17,80
Transport Series CD, Wheel P Fixed castor Wheel-∅ x width [mm]: 100x40 Technische Daten Tragkraft kg 200 Bauhöhe H mm 129 Plattengröße TP mm 102x83 Lochabstand HS mm 80x60 Loch-Ø HD mm 9 Radlagerung Nylon plain bearing PDF Data sheet 3D model (Cardenas Customer portal)
CD 125 PLLB	Swivel castor	125x30	120	154	102x83	80x60	9	104	35,90
Transport Series CD, Wheel P Swivel castor Wheel-∅ x width [mm]: 125x30 Technische Daten Tragkraft kg 120 Bauhöhe H mm 154 Plattengröße TP mm 102x83 Lochabstand HS mm 80x60 Loch-Ø HD mm 9 Störkreisradius SR mm 104 Radlagerung Roller bearing PDF Data sheet 3D model (Cardenas Customer portal)
CDT 125 PLLB	Swivel castor with total lock	125x30	120	154	102x83	80x60	9	108	48,60
Transport Series CD, Wheel P Swivel castor with total lock Wheel-∅ x width [mm]: 125x30 Technische Daten Tragkraft kg 120 Bauhöhe H mm 154 Plattengröße TP mm 102x83 Lochabstand HS mm 80x60 Loch-Ø HD mm 9 Störkreisradius SR mm 108 Radlagerung Roller bearing PDF Data sheet 3D model (Cardenas Customer portal)
CDF 125 PLLB	Fixed castor	125x30	120	154	102x83	80x60	9		28,50
Transport Series CD, Wheel P Fixed castor Wheel-∅ x width [mm]: 125x30 Technische Daten Tragkraft kg 120 Bauhöhe H mm 154 Plattengröße TP mm 102x83 Lochabstand HS mm 80x60 Loch-Ø HD mm 9 Radlagerung Roller bearing PDF Data sheet 3D model (Cardenas Customer portal)
CS 125 PK	Swivel castor	125x40	170	160	102x83	80x60	9	113	59,80
Transport Series CD, Wheel P Swivel castor Wheel-∅ x width [mm]: 125x40 Technische Daten Tragkraft kg 170 Bauhöhe H mm 160 Plattengröße TP mm 102x83 Lochabstand HS mm 80x60 Loch-Ø HD mm 9 Störkreisradius SR mm 113 Radlagerung Ball bearing PDF Data sheet 3D model (Cardenas Customer portal)
CST 125 PK	Swivel castor with total lock	125x40	170	160	102x83	80x60	9	140	74,50
Transport Series CD, Wheel P Swivel castor with total lock Wheel-∅ x width [mm]: 125x40 Technische Daten Tragkraft kg 170 Bauhöhe H mm 160 Plattengröße TP mm 102x83 Lochabstand HS mm 80x60 Loch-Ø HD mm 9 Störkreisradius SR mm 140 Radlagerung Ball bearing PDF Data sheet 3D model (Cardenas Customer portal)
CSF 125 PK	Fixed castor	125x40	170	160	102x83	80x60	9		51,20
Transport Series CD, Wheel P Fixed castor Wheel-∅ x width [mm]: 125x40 Technische Daten Tragkraft kg 170 Bauhöhe H mm 160 Plattengröße TP mm 102x83 Lochabstand HS mm 80x60 Loch-Ø HD mm 9 Radlagerung Ball bearing PDF Data sheet 3D model (Cardenas Customer portal)
CSS 125 PK	Swivel castor	125x40	200	160	135x110	105x80	11	113	63,10
Transport Series CD, Wheel P Swivel castor Wheel-∅ x width [mm]: 125x40 Technische Daten Tragkraft kg 200 Bauhöhe H mm 160 Plattengröße TP mm 135x110 Lochabstand HS mm 105x80 Loch-Ø HD mm 11 Störkreisradius SR mm 113 Radlagerung Ball bearing PDF Data sheet 3D model (Cardenas Customer portal)
CSST 125 PK	Swivel castor with total lock	125x40	200	160	135x110	105x80	11	140	77,80
Transport Series CD, Wheel P Swivel castor with total lock Wheel-∅ x width [mm]: 125x40 Technische Daten Tragkraft kg 200 Bauhöhe H mm 160 Plattengröße TP mm 135x110 Lochabstand HS mm 105x80 Loch-Ø HD mm 11 Störkreisradius SR mm 140 Radlagerung Ball bearing PDF Data sheet 3D model (Cardenas Customer portal)
CSSF 125 PK	Fixed castor	125x40	200	160	135x110	105x80	11		52,60
Transport Series CD, Wheel P Fixed castor Wheel-∅ x width [mm]: 125x40 Technische Daten Tragkraft kg 200 Bauhöhe H mm 160 Plattengröße TP mm 135x110 Lochabstand HS mm 105x80 Loch-Ø HD mm 11 Radlagerung Ball bearing PDF Data sheet 3D model (Cardenas Customer portal)
CS 125 PB	Swivel castor	125x40	170	160	102x83	80x60	9	113	40,40
Transport Series CD, Wheel P Swivel castor Wheel-∅ x width [mm]: 125x40 Technische Daten Tragkraft kg 170 Bauhöhe H mm 160 Plattengröße TP mm 102x83 Lochabstand HS mm 80x60 Loch-Ø HD mm 9 Störkreisradius SR mm 113 Radlagerung Roller bearing PDF Data sheet 3D model (Cardenas Customer portal)
CST 125 PB	Swivel castor with total lock	125x40	170	160	102x83	80x60	9	140	55,40
Transport Series CD, Wheel P Swivel castor with total lock Wheel-∅ x width [mm]: 125x40 Technische Daten Tragkraft kg 170 Bauhöhe H mm 160 Plattengröße TP mm 102x83 Lochabstand HS mm 80x60 Loch-Ø HD mm 9 Störkreisradius SR mm 140 Radlagerung Roller bearing PDF Data sheet 3D model (Cardenas Customer portal)
CSF 125 PB	Fixed castor	125x40	170	160	102x83	80x60	9		32,20
Transport Series CD, Wheel P Fixed castor Wheel-∅ x width [mm]: 125x40 Technische Daten Tragkraft kg 170 Bauhöhe H mm 160 Plattengröße TP mm 102x83 Lochabstand HS mm 80x60 Loch-Ø HD mm 9 Radlagerung Roller bearing PDF Data sheet 3D model (Cardenas Customer portal)
CSS 125 PB	Swivel castor	125x40	200	160	135x110	105x80	11	113	44,30
Transport Series CD, Wheel P Swivel castor Wheel-∅ x width [mm]: 125x40 Technische Daten Tragkraft kg 200 Bauhöhe H mm 160 Plattengröße TP mm 135x110 Lochabstand HS mm 105x80 Loch-Ø HD mm 11 Störkreisradius SR mm 113 Radlagerung Roller bearing PDF Data sheet 3D model (Cardenas Customer portal)
CSST 125 PB	Swivel castor with total lock	125x40	200	160	135x110	105x80	11	140	59,10
Transport Series CD, Wheel P Swivel castor with total lock Wheel-∅ x width [mm]: 125x40 Technische Daten Tragkraft kg 200 Bauhöhe H mm 160 Plattengröße TP mm 135x110 Lochabstand HS mm 105x80 Loch-Ø HD mm 11 Störkreisradius SR mm 140 Radlagerung Roller bearing PDF Data sheet 3D model (Cardenas Customer portal)
CSSF 125 PB	Fixed castor	125x40	200	160	135x110	105x80	11		33,80
Transport Series CD, Wheel P Fixed castor Wheel-∅ x width [mm]: 125x40 Technische Daten Tragkraft kg 200 Bauhöhe H mm 160 Plattengröße TP mm 135x110 Lochabstand HS mm 105x80 Loch-Ø HD mm 11 Radlagerung Roller bearing PDF Data sheet 3D model (Cardenas Customer portal)
CD 125 PLL	Swivel castor	125x30	120	154	102x83	80x60	9	104	28,50
Transport Series CD, Wheel P Swivel castor Wheel-∅ x width [mm]: 125x30 Technische Daten Tragkraft kg 120 Bauhöhe H mm 154 Plattengröße TP mm 102x83 Lochabstand HS mm 80x60 Loch-Ø HD mm 9 Störkreisradius SR mm 104 Radlagerung Nylon plain bearing PDF Data sheet 3D model (Cardenas Customer portal)
CDT 125 PLL	Swivel castor with total lock	125x30	120	154	102x83	80x60	9	108	41,20
Transport Series CD, Wheel P Swivel castor with total lock Wheel-∅ x width [mm]: 125x30 Technische Daten Tragkraft kg 120 Bauhöhe H mm 154 Plattengröße TP mm 102x83 Lochabstand HS mm 80x60 Loch-Ø HD mm 9 Störkreisradius SR mm 108 Radlagerung Nylon plain bearing PDF Data sheet 3D model (Cardenas Customer portal)
CDF 125 PLL	Fixed castor	125x30	120	154	102x83	80x60	9		21,10
Transport Series CD, Wheel P Fixed castor Wheel-∅ x width [mm]: 125x30 Technische Daten Tragkraft kg 120 Bauhöhe H mm 154 Plattengröße TP mm 102x83 Lochabstand HS mm 80x60 Loch-Ø HD mm 9 Radlagerung Nylon plain bearing PDF Data sheet 3D model (Cardenas Customer portal)
CS 125 PL	Swivel castor	125x35	170	160	102x83	80x60	9	113	33,60
Transport Series CD, Wheel P Swivel castor Wheel-∅ x width [mm]: 125x35 Technische Daten Tragkraft kg 170 Bauhöhe H mm 160 Plattengröße TP mm 102x83 Lochabstand HS mm 80x60 Loch-Ø HD mm 9 Störkreisradius SR mm 113 Radlagerung Nylon plain bearing PDF Data sheet 3D model (Cardenas Customer portal)
CST 125 PL	Swivel castor with total lock	125x35	170	160	102x83	80x60	9	140	48,40
Transport Series CD, Wheel P Swivel castor with total lock Wheel-∅ x width [mm]: 125x35 Technische Daten Tragkraft kg 170 Bauhöhe H mm 160 Plattengröße TP mm 102x83 Lochabstand HS mm 80x60 Loch-Ø HD mm 9 Störkreisradius SR mm 140 Radlagerung Nylon plain bearing PDF Data sheet 3D model (Cardenas Customer portal)
CSF 125 PL	Fixed castor	125x35	170	160	102x83	80x60	9		24,90
Transport Series CD, Wheel P Fixed castor Wheel-∅ x width [mm]: 125x35 Technische Daten Tragkraft kg 170 Bauhöhe H mm 160 Plattengröße TP mm 102x83 Lochabstand HS mm 80x60 Loch-Ø HD mm 9 Radlagerung Nylon plain bearing PDF Data sheet 3D model (Cardenas Customer portal)
CSS 125 PL	Swivel castor	125x35	200	160	135x110	105x80	11	113	37,00
Transport Series CD, Wheel P Swivel castor Wheel-∅ x width [mm]: 125x35 Technische Daten Tragkraft kg 200 Bauhöhe H mm 160 Plattengröße TP mm 135x110 Lochabstand HS mm 105x80 Loch-Ø HD mm 11 Störkreisradius SR mm 113 Radlagerung Nylon plain bearing PDF Data sheet 3D model (Cardenas Customer portal)
CSST 125 PL	Swivel castor with total lock	125x35	200	160	135x110	105x80	11	140	51,40
Transport Series CD, Wheel P Swivel castor with total lock Wheel-∅ x width [mm]: 125x35 Technische Daten Tragkraft kg 200 Bauhöhe H mm 160 Plattengröße TP mm 135x110 Lochabstand HS mm 105x80 Loch-Ø HD mm 11 Störkreisradius SR mm 140 Radlagerung Nylon plain bearing PDF Data sheet 3D model (Cardenas Customer portal)
CSSF 125 PL	Fixed castor	125x35	200	160	135x110	105x80	11		26,20
Transport Series CD, Wheel P Fixed castor Wheel-∅ x width [mm]: 125x35 Technische Daten Tragkraft kg 200 Bauhöhe H mm 160 Plattengröße TP mm 135x110 Lochabstand HS mm 105x80 Loch-Ø HD mm 11 Radlagerung Nylon plain bearing PDF Data sheet 3D model (Cardenas Customer portal)
CD 150 PK	Swivel castor	150x40	200	181	135x110	105x80	11	128	72,60
Transport Series CD, Wheel P Swivel castor Wheel-∅ x width [mm]: 150x40 Technische Daten Tragkraft kg 200 Bauhöhe H mm 181 Plattengröße TP mm 135x110 Lochabstand HS mm 105x80 Loch-Ø HD mm 11 Störkreisradius SR mm 128 Radlagerung Ball bearing PDF Data sheet 3D model (Cardenas Customer portal)

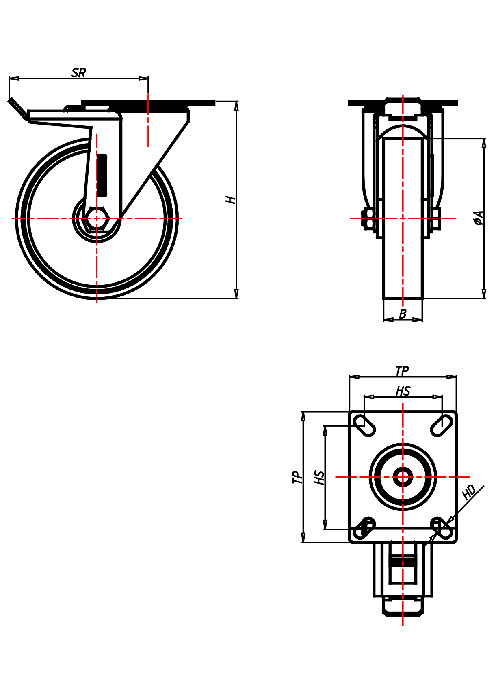

CDT 150 PK	Swivel castor with total lock	150x40	200	181	135x110	105x80	11	140	87,10
Transport Series CD, Wheel P Swivel castor with total lock Wheel-∅ x width [mm]: 150x40 Technische Daten Tragkraft kg 200 Bauhöhe H mm 181 Plattengröße TP mm 135x110 Lochabstand HS mm 105x80 Loch-Ø HD mm 11 Störkreisradius SR mm 140 Radlagerung Ball bearing PDF Data sheet 3D model (Cardenas Customer portal)
CDF 150 PK	Fixed castor	150x40	200	181	135x110	105x80	11		60,90
Transport Series CD, Wheel P Fixed castor Wheel-∅ x width [mm]: 150x40 Technische Daten Tragkraft kg 200 Bauhöhe H mm 181 Plattengröße TP mm 135x110 Lochabstand HS mm 105x80 Loch-Ø HD mm 11 Radlagerung Ball bearing PDF Data sheet 3D model (Cardenas Customer portal)
CL 150 PK	Swivel castor	150x40	170	181	102x83	80x60	9	128	68,60
Transport Series CD, Wheel P Swivel castor Wheel-∅ x width [mm]: 150x40 Technische Daten Tragkraft kg 170 Bauhöhe H mm 181 Plattengröße TP mm 102x83 Lochabstand HS mm 80x60 Loch-Ø HD mm 9 Störkreisradius SR mm 128 Radlagerung Ball bearing PDF Data sheet 3D model (Cardenas Customer portal)
CLT 150 PK	Swivel castor with total lock	150x40	170	181	102x83	80x60	9	140	83,70
Transport Series CD, Wheel P Swivel castor with total lock Wheel-∅ x width [mm]: 150x40 Technische Daten Tragkraft kg 170 Bauhöhe H mm 181 Plattengröße TP mm 102x83 Lochabstand HS mm 80x60 Loch-Ø HD mm 9 Störkreisradius SR mm 140 Radlagerung Ball bearing PDF Data sheet 3D model (Cardenas Customer portal)
CLF 150 PK	Fixed castor	150x40	170	181	102x83	80x60	9		59,50
Transport Series CD, Wheel P Fixed castor Wheel-∅ x width [mm]: 150x40 Technische Daten Tragkraft kg 170 Bauhöhe H mm 181 Plattengröße TP mm 102x83 Lochabstand HS mm 80x60 Loch-Ø HD mm 9 Radlagerung Ball bearing PDF Data sheet 3D model (Cardenas Customer portal)
CD 150 PB	Swivel castor	150x40	200	181	135x110	105x80	11	128	48,60
Transport Series CD, Wheel P Swivel castor Wheel-∅ x width [mm]: 150x40 Technische Daten Tragkraft kg 200 Bauhöhe H mm 181 Plattengröße TP mm 135x110 Lochabstand HS mm 105x80 Loch-Ø HD mm 11 Störkreisradius SR mm 128 Radlagerung Roller bearing
CDT 150 PB	Swivel castor with total lock	150x40	200	181	135x110	105x80	11	140	63,70
Transport Series CD, Wheel P Swivel castor with total lock Wheel-∅ x width [mm]: 150x40 Technische Daten Tragkraft kg 200 Bauhöhe H mm 181 Plattengröße TP mm 135x110 Lochabstand HS mm 105x80 Loch-Ø HD mm 11 Störkreisradius SR mm 140 Radlagerung Roller bearing PDF Data sheet
CDF 150 PB	Fixed castor	150x40	200	181	135x110	105x80	11		38,00
Transport Series CD, Wheel P Fixed castor Wheel-∅ x width [mm]: 150x40 Technische Daten Tragkraft kg 200 Bauhöhe H mm 181 Plattengröße TP mm 135x110 Lochabstand HS mm 105x80 Loch-Ø HD mm 11 Radlagerung Roller bearing
CL 150 PB	Swivel castor	150x40	170	181	102x83	80x60	9	128	45,30
Transport Series CD, Wheel P Swivel castor Wheel-∅ x width [mm]: 150x40 Technische Daten Tragkraft kg 170 Bauhöhe H mm 181 Plattengröße TP mm 102x83 Lochabstand HS mm 80x60 Loch-Ø HD mm 9 Störkreisradius SR mm 128 Radlagerung Roller bearing PDF Data sheet 3D model (Cardenas Customer portal)
CLT 150 PB	Swivel castor with total lock	150x40	170	181	102x83	80x60	9	140	60,40
Transport Series CD, Wheel P Swivel castor with total lock Wheel-∅ x width [mm]: 150x40 Technische Daten Tragkraft kg 170 Bauhöhe H mm 181 Plattengröße TP mm 102x83 Lochabstand HS mm 80x60 Loch-Ø HD mm 9 Störkreisradius SR mm 140 Radlagerung Roller bearing PDF Data sheet 3D model (Cardenas Customer portal)
CLF 150 PB	Fixed castor	150x40	170	181	102x83	80x60	9		36,10
Transport Series CD, Wheel P Fixed castor Wheel-∅ x width [mm]: 150x40 Technische Daten Tragkraft kg 170 Bauhöhe H mm 181 Plattengröße TP mm 102x83 Lochabstand HS mm 80x60 Loch-Ø HD mm 9 Radlagerung Roller bearing PDF Data sheet 3D model (Cardenas Customer portal)
CD 150 PL	Swivel castor	150x40	200	181	135x110	105x80	11	128	40,90
Transport Series CD, Wheel P Swivel castor Wheel-∅ x width [mm]: 150x40 Technische Daten Tragkraft kg 200 Bauhöhe H mm 181 Plattengröße TP mm 135x110 Lochabstand HS mm 105x80 Loch-Ø HD mm 11 Störkreisradius SR mm 128 Radlagerung Nylon plain bearing PDF Data sheet 3D model (Cardenas Customer portal)
CDT 150 PL	Swivel castor with total lock	150x40	200	181	135x110	105x80	11	140	55,50
Transport Series CD, Wheel P Swivel castor with total lock Wheel-∅ x width [mm]: 150x40 Technische Daten Tragkraft kg 200 Bauhöhe H mm 181 Plattengröße TP mm 135x110 Lochabstand HS mm 105x80 Loch-Ø HD mm 11 Störkreisradius SR mm 140 Radlagerung Nylon plain bearing PDF Data sheet 3D model (Cardenas Customer portal)
CDF 150 PL	Fixed castor	150x40	200	181	135x110	105x80	11		30,30
Transport Series CD, Wheel P Fixed castor Wheel-∅ x width [mm]: 150x40 Technische Daten Tragkraft kg 200 Bauhöhe H mm 181 Plattengröße TP mm 135x110 Lochabstand HS mm 105x80 Loch-Ø HD mm 11 Radlagerung Nylon plain bearing PDF Data sheet 3D model (Cardenas Customer portal)

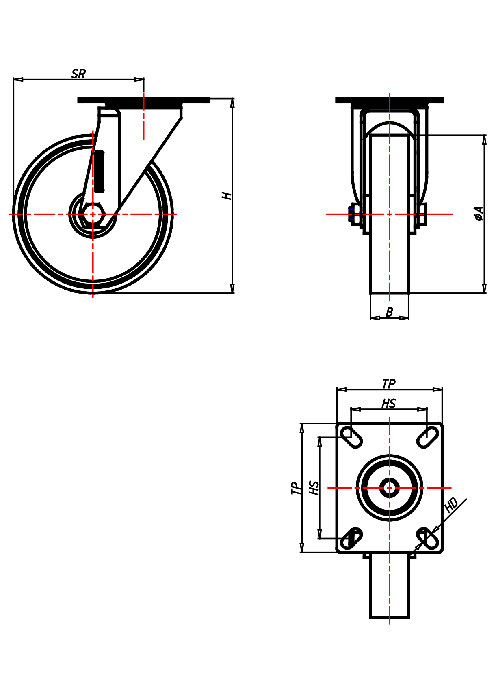

CL 150 PL	Swivel castor	150x40	170	181	102x83	80x60	9	128	38,20
Transport Series CD, Wheel P Swivel castor Wheel-∅ x width [mm]: 150x40 Technische Daten Tragkraft kg 170 Bauhöhe H mm 181 Plattengröße TP mm 102x83 Lochabstand HS mm 80x60 Loch-Ø HD mm 9 Störkreisradius SR mm 128 Radlagerung Nylon plain bearing PDF Data sheet 3D model (Cardenas Customer portal)
CLT 150 PL	Swivel castor with total lock	150x40	170	181	102x83	80x60	9	140	52,80
Transport Series CD, Wheel P Swivel castor with total lock Wheel-∅ x width [mm]: 150x40 Technische Daten Tragkraft kg 170 Bauhöhe H mm 181 Plattengröße TP mm 102x83 Lochabstand HS mm 80x60 Loch-Ø HD mm 9 Störkreisradius SR mm 140 Radlagerung Nylon plain bearing PDF Data sheet 3D model (Cardenas Customer portal)
CLF 150 PL	Fixed castor	150x40	170	181	102x83	80x60	9		28,50
Transport Series CD, Wheel P Fixed castor Wheel-∅ x width [mm]: 150x40 Technische Daten Tragkraft kg 170 Bauhöhe H mm 181 Plattengröße TP mm 102x83 Lochabstand HS mm 80x60 Loch-Ø HD mm 9 Radlagerung Nylon plain bearing PDF Data sheet 3D model (Cardenas Customer portal)
CD 175 PK	Swivel castor	175x50	300	216	135x110	105x80	11	147	91,10
Transport Series CD, Wheel P Swivel castor Wheel-∅ x width [mm]: 175x50 Technische Daten Tragkraft kg 300 Bauhöhe H mm 216 Plattengröße TP mm 135x110 Lochabstand HS mm 105x80 Loch-Ø HD mm 11 Störkreisradius SR mm 147 Radlagerung Ball bearing PDF Data sheet 3D model (Cardenas Customer portal)
CDT 175 PK	Swivel castor with total lock	175x50	300	216	135x110	105x80	11	168	109,50
Transport Series CD, Wheel P Swivel castor with total lock Wheel-∅ x width [mm]: 175x50 Technische Daten Tragkraft kg 300 Bauhöhe H mm 216 Plattengröße TP mm 135x110 Lochabstand HS mm 105x80 Loch-Ø HD mm 11 Störkreisradius SR mm 168 Radlagerung Ball bearing PDF Data sheet 3D model (Cardenas Customer portal)
CDF 175 PK	Fixed castor	175x50	300	216	135x110	105x80	11		77,00
Transport Series CD, Wheel P Fixed castor Wheel-∅ x width [mm]: 175x50 Technische Daten Tragkraft kg 300 Bauhöhe H mm 216 Plattengröße TP mm 135x110 Lochabstand HS mm 105x80 Loch-Ø HD mm 11 Radlagerung Ball bearing PDF Data sheet 3D model (Cardenas Customer portal)
CD 175 PB	Swivel castor	175x50	300	216	135x110	105x80	11	147	71,70
Transport Series CD, Wheel P Swivel castor Wheel-∅ x width [mm]: 175x50 Technische Daten Tragkraft kg 300 Bauhöhe H mm 216 Plattengröße TP mm 135x110 Lochabstand HS mm 105x80 Loch-Ø HD mm 11 Störkreisradius SR mm 147 Radlagerung Roller bearing PDF Data sheet 3D model (Cardenas Customer portal)
CDT 175 PB	Swivel castor with total lock	175x50	300	216	135x110	105x80	11	168	90,20
Transport Series CD, Wheel P Swivel castor with total lock Wheel-∅ x width [mm]: 175x50 Technische Daten Tragkraft kg 300 Bauhöhe H mm 216 Plattengröße TP mm 135x110 Lochabstand HS mm 105x80 Loch-Ø HD mm 11 Störkreisradius SR mm 168 Radlagerung Roller bearing PDF Data sheet 3D model (Cardenas Customer portal)
CDF 175 PB	Fixed castor	175x50	300	216	135x110	105x80	11		57,90
Transport Series CD, Wheel P Fixed castor Wheel-∅ x width [mm]: 175x50 Technische Daten Tragkraft kg 300 Bauhöhe H mm 216 Plattengröße TP mm 135x110 Lochabstand HS mm 105x80 Loch-Ø HD mm 11 Radlagerung Roller bearing PDF Data sheet 3D model (Cardenas Customer portal)
CD 175 P	Swivel castor	175x50	300	216	135x110	105x80	11	147	60,40
Transport Series CD, Wheel P Swivel castor Wheel-∅ x width [mm]: 175x50 Technische Daten Tragkraft kg 300 Bauhöhe H mm 216 Plattengröße TP mm 135x110 Lochabstand HS mm 105x80 Loch-Ø HD mm 11 Störkreisradius SR mm 147 Radlagerung Nylon plain bearing PDF Data sheet 3D model (Cardenas Customer portal)
CDT 175 P	Swivel castor with total lock	175x50	300	216	135x110	105x80	11	168	79,20
Transport Series CD, Wheel P Swivel castor with total lock Wheel-∅ x width [mm]: 175x50 Technische Daten Tragkraft kg 300 Bauhöhe H mm 216 Plattengröße TP mm 135x110 Lochabstand HS mm 105x80 Loch-Ø HD mm 11 Störkreisradius SR mm 168 Radlagerung Nylon plain bearing PDF Data sheet 3D model (Cardenas Customer portal)

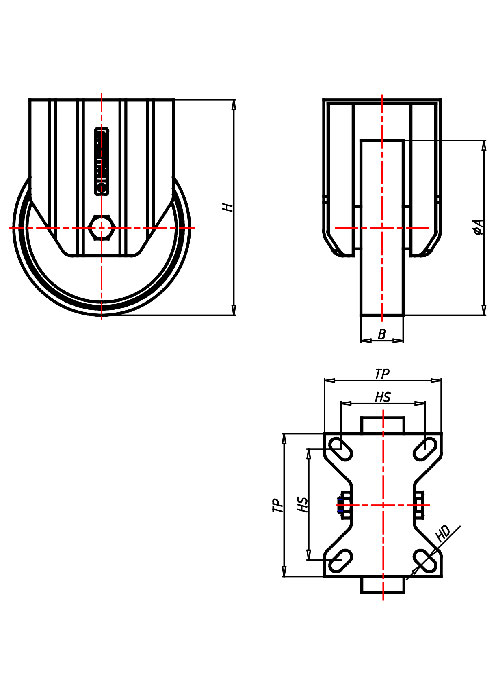

CDF 175 P	Fixed castor	175x50	300	216	135x110	105x80	11		46,70
Transport Series CD, Wheel P Fixed castor Wheel-∅ x width [mm]: 175x50 Technische Daten Tragkraft kg 300 Bauhöhe H mm 216 Plattengröße TP mm 135x110 Lochabstand HS mm 105x80 Loch-Ø HD mm 11 Radlagerung Nylon plain bearing PDF Data sheet 3D model (Cardenas Customer portal)
CD 200 PLK	Swivel castor	200x50	300	240	135x110	105x80	11	161	94,60
Transport Series CD, Wheel P Swivel castor Wheel-∅ x width [mm]: 200x50 Technische Daten Tragkraft kg 300 Bauhöhe H mm 240 Plattengröße TP mm 135x110 Lochabstand HS mm 105x80 Loch-Ø HD mm 11 Störkreisradius SR mm 161 Radlagerung Ball bearing PDF Data sheet 3D model (Cardenas Customer portal)
CDT 200 PLK	Swivel castor with total lock	200x50	300	240	135x110	105x80	11	168	113,10
Transport Series CD, Wheel P Swivel castor with total lock Wheel-∅ x width [mm]: 200x50 Technische Daten Tragkraft kg 300 Bauhöhe H mm 240 Plattengröße TP mm 135x110 Lochabstand HS mm 105x80 Loch-Ø HD mm 11 Störkreisradius SR mm 168 Radlagerung Ball bearing PDF Data sheet 3D model (Cardenas Customer portal)
CDF 200 PLK	Fixed castor	200x50	300	240	135x110	105x80	11		81,50
Transport Series CD, Wheel P Fixed castor Wheel-∅ x width [mm]: 200x50 Technische Daten Tragkraft kg 300 Bauhöhe H mm 240 Plattengröße TP mm 135x110 Lochabstand HS mm 105x80 Loch-Ø HD mm 11 Radlagerung Ball bearing PDF Data sheet 3D model (Cardenas Customer portal)
CD 200 PLB	Swivel castor	200x50	300	240	135x110	105x80	11	161	77,80
Transport Series CD, Wheel P Swivel castor Wheel-∅ x width [mm]: 200x50 Technische Daten Tragkraft kg 300 Bauhöhe H mm 240 Plattengröße TP mm 135x110 Lochabstand HS mm 105x80 Loch-Ø HD mm 11 Störkreisradius SR mm 161 Radlagerung Roller bearing PDF Data sheet 3D model (Cardenas Customer portal)
CDT 200 PLB	Swivel castor with total lock	200x50	300	240	135x110	105x80	11	168	96,50
Transport Series CD, Wheel P Swivel castor with total lock Wheel-∅ x width [mm]: 200x50 Technische Daten Tragkraft kg 300 Bauhöhe H mm 240 Plattengröße TP mm 135x110 Lochabstand HS mm 105x80 Loch-Ø HD mm 11 Störkreisradius SR mm 168 Radlagerung Roller bearing PDF Data sheet 3D model (Cardenas Customer portal)
CDF 200 PLB	Fixed castor	200x50	300	240	135x110	105x80	11		64,30
Transport Series CD, Wheel P Fixed castor Wheel-∅ x width [mm]: 200x50 Technische Daten Tragkraft kg 300 Bauhöhe H mm 240 Plattengröße TP mm 135x110 Lochabstand HS mm 105x80 Loch-Ø HD mm 11 Radlagerung Roller bearing PDF Data sheet 3D model (Cardenas Customer portal)
CD 200 P	Swivel castor	200x50	300	240	135x110	105x80	11	161	66,40
Transport Series CD, Wheel P Swivel castor Wheel-∅ x width [mm]: 200x50 Technische Daten Tragkraft kg 300 Bauhöhe H mm 240 Plattengröße TP mm 135x110 Lochabstand HS mm 105x80 Loch-Ø HD mm 11 Störkreisradius SR mm 161 Radlagerung Nylon plain bearing PDF Data sheet 3D model (Cardenas Customer portal)
CDT 200 P	Swivel castor with total lock	200x50	300	240	135x110	105x80	11	168	85,30
Transport Series CD, Wheel P Swivel castor with total lock Wheel-∅ x width [mm]: 200x50 Technische Daten Tragkraft kg 300 Bauhöhe H mm 240 Plattengröße TP mm 135x110 Lochabstand HS mm 105x80 Loch-Ø HD mm 11 Störkreisradius SR mm 168 Radlagerung Nylon plain bearing PDF Data sheet 3D model (Cardenas Customer portal)
CDF 200 P	Fixed castor	200x50	300	240	135x110	105x80	11		52,90
Transport Series CD, Wheel P Fixed castor Wheel-∅ x width [mm]: 200x50 Technische Daten Tragkraft kg 300 Bauhöhe H mm 240 Plattengröße TP mm 135x110 Lochabstand HS mm 105x80 Loch-Ø HD mm 11 Radlagerung Nylon plain bearing PDF Data sheet 3D model (Cardenas Customer portal)

Suitable accessories

Counter plate 105x85x3,5 mm
Art.No. GEGENPLATTE 1

blank
Stahl blank
105x85x3,5
80x60

Qty € 3,90/Pc., exkl. Shipping
Counter plate 135x110x5 mm
Art.No. GEGENPLATTE 2

blank
Stahl blank
135x110x5
105x80

Qty € 6,70/Pc., exkl. Shipping
Directional lock DL1
Art.No. DL 1

360 Grad
Stahlblech verzinkt
135x110
105x80

Qty € 20,40/Pc., exkl. Shipping
Directional lock DL2
Art.No. DL 2

360 Grad
Stahlblech verzinkt
135x110
105x80

Qty € 20,40/Pc., exkl. Shipping
Directional lock DL5
Art.No. DL 5

360 Grad
Stahlblech verzinkt
102x83, 105x85
80x60

Qty € 20,40/Pc., exkl. Shipping
Fixing Bolt M8x20 mm
Art.No. M 8X20

verzinkt
Stahl 8.8 verzinkt
M8x20

Qty € 0,20/Pc., exkl. Shipping
Fixing bolt M10x20 mm
Art.No. M 10X20

verzinkt
Stahl 8.8 verzinkt
M10x20

Qty € 0,40/Pc., exkl. Shipping
Foot guard zinc plated
Art.No. FUSSSCHUTZ VZ

Qty € auf Anfrage/Pc., exkl. Shipping

Cart preview

Transport Series CD, Wheel P

Description

Floor condition

Advantages

Applications

Material

Material

Fork material

Documents/CAD

Cadenas Partcommunity-Portal

Select version
